Kenwood NXR-800 User Manual

NXR-800
7
INSTALLATION
Fig. 2-2
Crimp terminal
(E23-0613-05)
12
15
13
1
3
6
Black/White lead
Black lead
Fig. 2-3

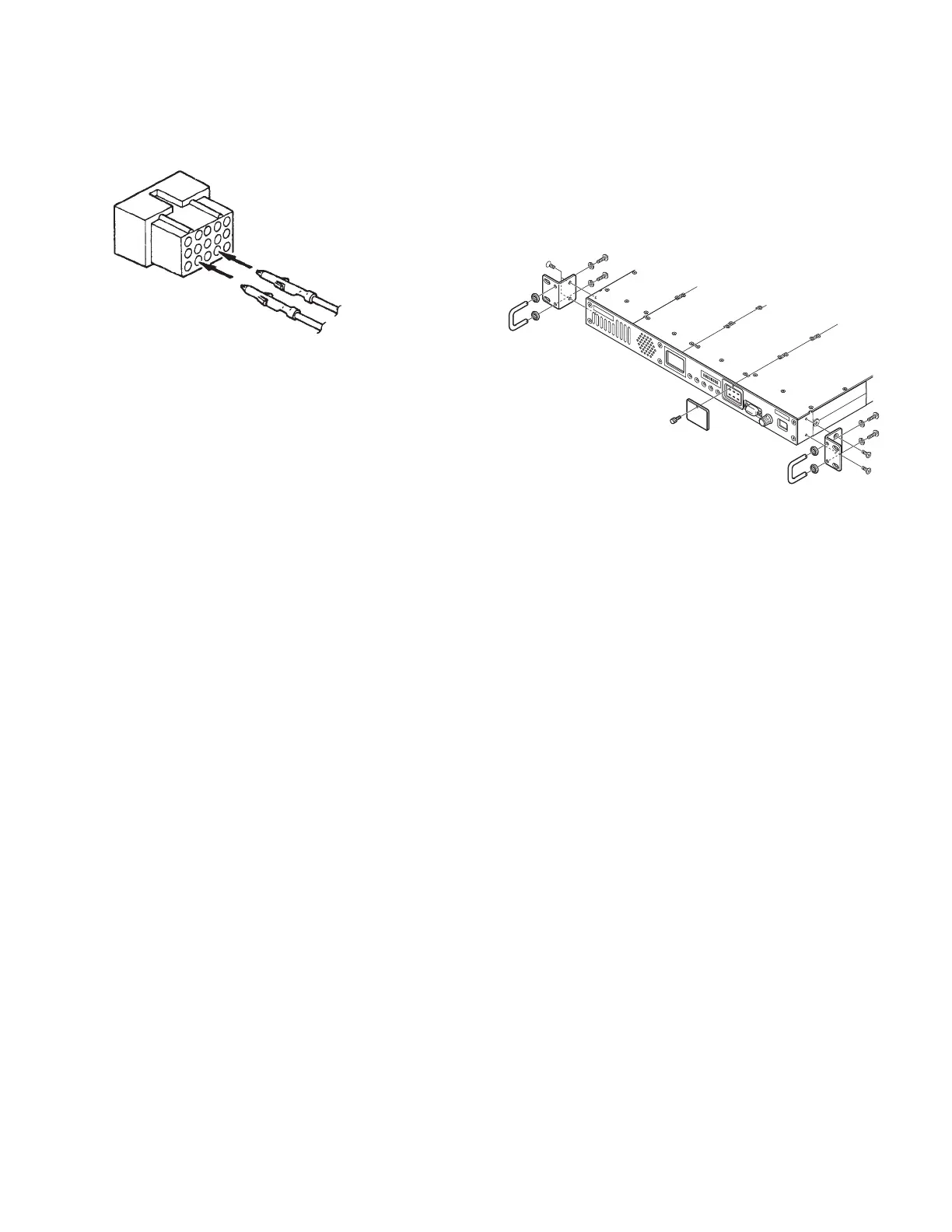

3. How to Attach the Supplied Accessories
1. Attach the front glass to the front panel with the supplied
screw. (
a
)
2. To attach the handles on the both sides of the chassis,
refer to illustration. (
b
)
Front glass
Handle
Handle
a
b
b
Fig. 3
