Adjustment for KXK-3 (OCXO unit)
We recommend that the frequency adjustment be checked each time the radio is serviced, or at least once per year.
Maintenance should only be performed under normal temperatures.
Test Equipment Required for Alignment
Test Equipment Major Specifi cations
1. Frequency Counter
Frequency Range Up to 50MHz
Resolution 9 digits
Reference Frequency Accuracy Smaller than 0.01ppm
Input level Up to 5Vpp

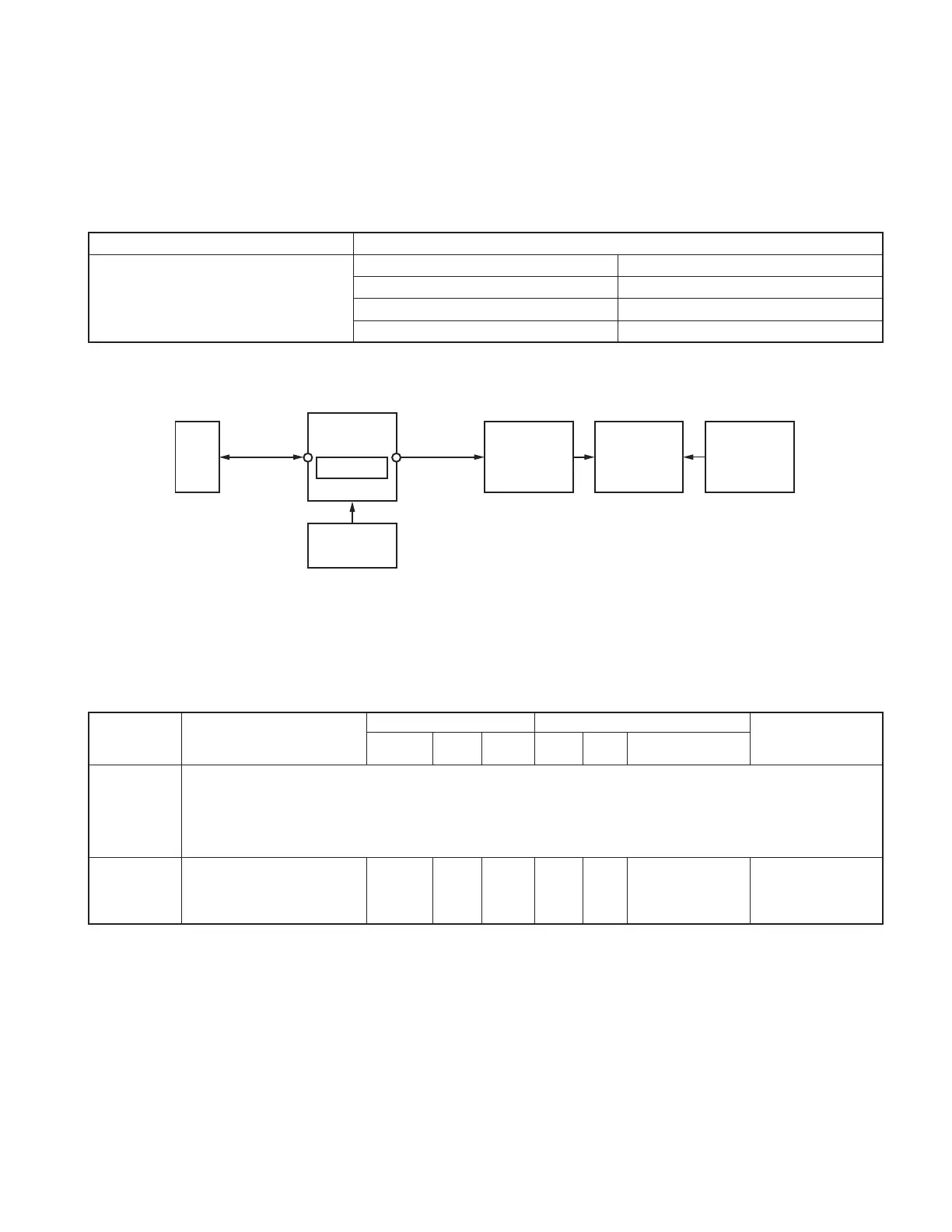

Adjustment Setup
The KXK-3 OCXO unit must be mounted on the NXR-800 repeater. Adjustment setup is shown as follows.
KXK-3
PC
NXR-800
Cross-wired
cable
REF OUT
terminal
D-sub
9-pin
Attenuator
(if necessary)
DC power
supply
Frequency
counter
External
frequency
refernce
(if necessary)
To adjust the KXK-3 OCXO unit, some preparations are required.
1. The NXR-800 with the KXK-3 OCXO unit must be warmed up at least 24 hours before the adjustment is made.
The environment temperature must be stable.
2. The frequency counter (or reference oscillator) must be warmed up as defi ned by the equipment manufacturer.
Adjustment
Item Condition
Measurement Adjustment
Specifi cations /
Remarks
Test-
equipment
Unit
Terminal
Unit Parts Method
1. Setting 1) Connect the DC power output to the rear panel DC terminal (13.8V).
2) Connect the “REF OUT” terminal to the frequency counter.
3) Warm-up the equipment and KXK-3 properly.
4) Connect the front panel COM port (D-sub 9-pin connector) to the PC serial port with a cross-wired cable.
5) Activate the FPU to go to the test mode.
2. OCXO
frequency
adjustment
f. counter Rear REF
OUT
PC
ADJ
±0.15ppm
9.99999850MHz~
10.00000150MHz
Note:
Adjusted data is stored in the KXK-3 internal memory, therefore no re-adjustment is required when the adjusted KXK-3 is moved
to another NXR-800.
ADJUSTMENT
