Display
Speaker selection indicators
Input channel indicator
Output channel indicator
AUTO indicator
MEMO indicator
STEREO indicator
TUNED indicator

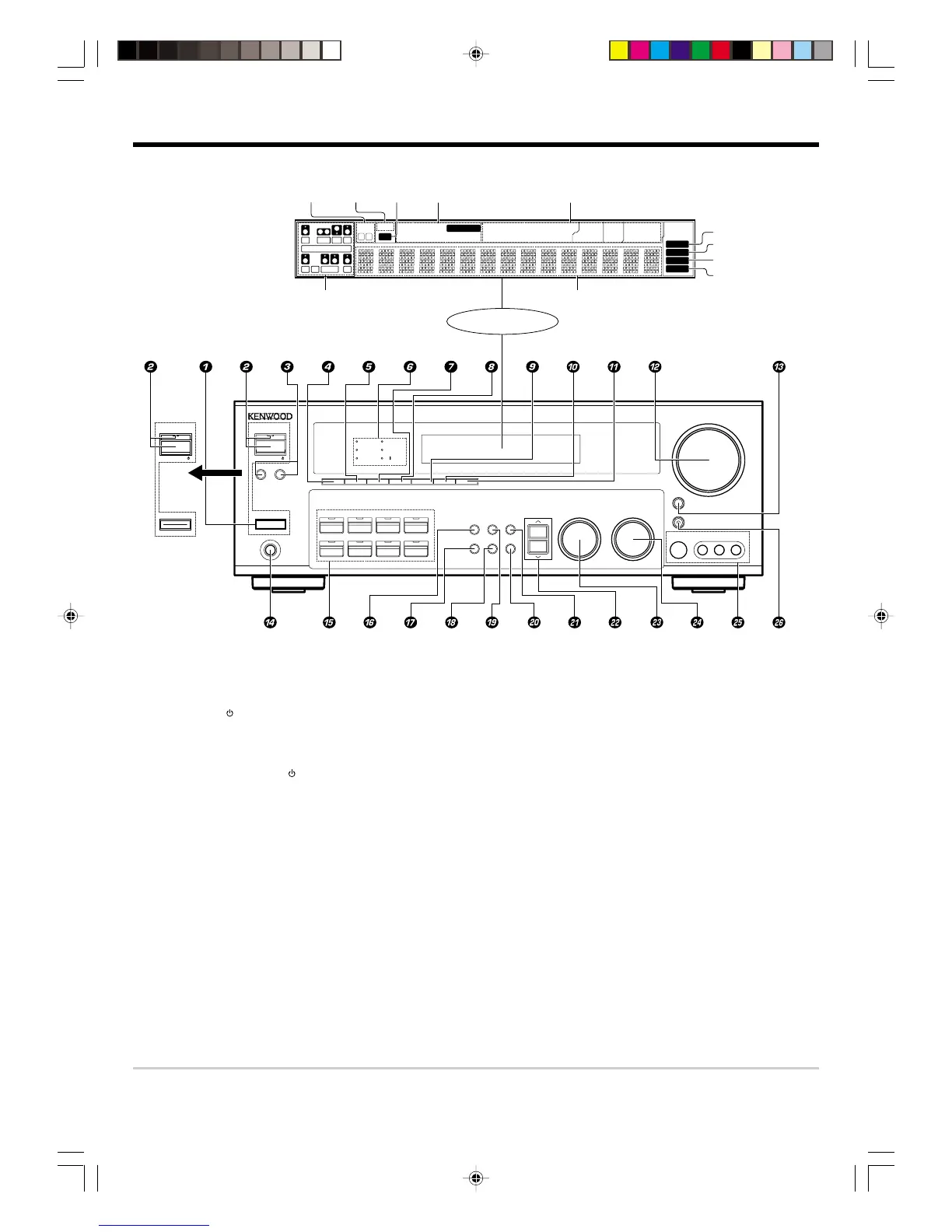

Names and functions of parts
Frequency display
Input display
Preset channel display
Surround mode display
Speaker
indicator
1 POWER ON/OFF key
(For KRF-V8060D) ¡
Use to turn the main power ON/OFF.
2 ON/STANDBY (
) key
(For KRF-V8060D) ¡
Use to turn the power ON/STANDBY when
the POWER is turned ON.
STANDBY indicator
2 POWER and ON/STANDBY (
) key
(For VR-6060) ¡
Use to turn the power ON/STANDBY.
STANDBY indicator
3 SPEAKERS A/B keys ¢
Use to turn the A/B speakers ON/OFF.
4 LOUDNESS key ∞
Use to switch the status of LOUDNESS.
5 ACTIVE EQ key ∞
Use to switch the status of ACTIVE EQ.
6 Surround indicators
DSP indicator ⁄
Lights when the receiver is in the DSP mode.
ACTIVE EQ indicator ∞
Lights when the receiver is in the ACTIVE EQ
mode.
CINEMA EQ indicator ∞
Lights when the receiver is in the CINEMA
EQ mode.
DOLBY DIGITAL indicator ⁄
Lights when the receiver is in the Dolby
Digital mode.
Standby mode
When the standby indicator is lit, a small amount of power is supplied to the system to back up the memory. This is called standby mode. Under the
condition, the system can be turned ON by remote control unit.
Main unit
^ SOUND key ‹
Use to adjust the sound quality and the ambi-
ence effects.
& BAND key ¶
Use to select the broadcast band.
* AUTO key ¶
Use to select the auto or manual tuning
mode.
( TONE key ∞
Use to switch the status of TONE control.
) MEMORY key ¶
Use to store radio stations in the preset
memory.
¡ SETUP key ¡
Use to select the speakers' settings etc.
™
MM
MM
M
/
??
??
?
keys ¡
Use for selection adjustments during TONE,
SOUND, SETUP and PRESET CHANNEL
functions.
£ MULTI CONTROL knob ¡
Use to control a variety of settings.
¢ LISTEN MODE knob ⁄
Use to select the listening mode.
∞ AV AUX (S VIDEO, VIDEO, AUDIO L/R)
jacks *
§ AV AUX key *
Use to switch the input to AV AUX.
DTS indicator ⁄
Lights when the receiver is in the DTS mode.
CS II indicator ⁄
Lights when the receiver is in the CIRCLE
SURROUND mode.
7 CINEMA EQ key ∞
Use to switch the status of CINEMA EQ.
8 DSP key ⁄
Use to select any of the DSP mode.
9 STEREO key ⁄
Use to switch the status of STEREO.
0 INPUT MODE key 9
Use to switch between the digital and analog
inputs (FULL AUTO = DIGITAL MANUAL =
ANALOG = 6CH INPUT).
! DIMMER key
Use to select the REC MODE. §
Use to adjust the brightness of the display.
›
@ VOLUME CONTROL knob ¢
# MUTE key ∞
Use to temporarily mute the sound.
$ PHONES jack ∞
Use for headphone listening.
% Input Selector keys ¢
(DVD/6CH, CD/DVD, PHONO, TUNER,
VIDEO1, VIDEO2, VIDEO3, MD/TAPE)
Use to select input sources.
MUTE
indicator
CLIP
indicator
Input mode
indicator
Listen mode
indicator
For VR-6060
