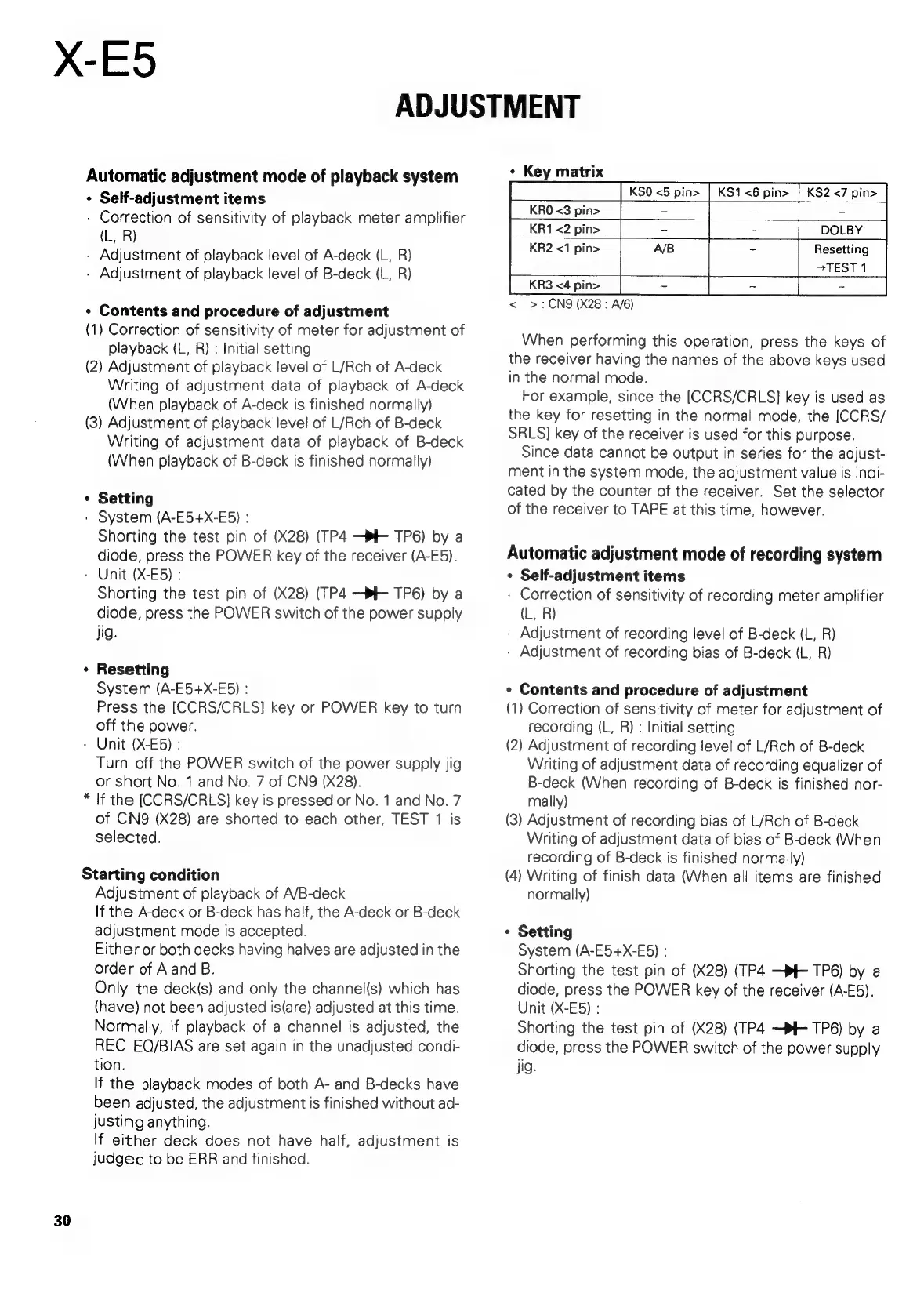

X-E5
30
ADJUSTMENT
Automatic
adjustment
mode
of
playback
system
¢
Self-adjustment
items
-
Correction
of
sensitivity
of
playback
meter
amplifier
(L,
R)
-
Adjustment
of
playback
level
of
A-deck
(L,
R)
-
Adjustment
of
playback
level
of
B-deck
(L,
R)
¢
Contents
and
procedure
of
adjustment
(1)
Correction
of
sensitivity
of
meter
for
adjustment
of
playback
(L,
R)
:
Initial
setting
(2)
Adjustment
of
playback
level
of
L/Rch
of
A-deck
Writing
of
adjustment
data
of
playback
of
A-deck
(When
playback
of
A-deck
is
finished
normally)
(3)
Adjustment
of
playback
level
of
L/Rch
of
B-deck
Writing
of
adjustment
data
of
playback
of
B-deck
(When
playback
of
B-deck
is
finished
normally)
¢
Setting
-
System
(A-E5+X-E5)
:
Shorting
the
test
pin
of
(X28)
(TP4
—BE
TP6)
by
a
diode,
press
the
POWER
key
of
the
receiver
(A-E5).
»
Unit
(X-E5)
:
Shorting
the
test
pin
of
(X28)
(TP4
—-PF-
TP6)
by
a
diode,
press
the
POWER
switch
of
the
power
supply
jig.
«
Resetting
System
(A-E5+X-E5)
:
Press
the
[CCRS/CRLS]
key
or
POWER
key
to
turn
off
the
power.
»
Unit
(X-E5)
:
Turn
off
the
POWER
switch
of
the
power
supply
jig
or
short
No.
1
and
No.
7
of
CN9
(X28).
*
lf
the
[CCRS/CRLS]
key
is
pressed
or
No.
1
and
No.
7
of
CN9Q
(X28)
are
shorted
to
each
other,
TEST
1
is
selected.
Starting
condition
Adjustment
of
playback
of
A/B-deck
If
the
A-deck
or
B-deck
has
half,
the
A-deck
or
B-deck
adjustment
mode
is
accepted.
Either
or
both
decks
having
halves
are
adjusted
in
the
order
of
Aand
B.
Only
the
deck(s)
and
only
the
channel(s)
which
has
(have)
not
been
adjusted
is(are)
adjusted
at
this
time.
Normally,
if
playback
of
a
channel
is
adjusted,
the
REC
EQ/BIAS
are
set
again
in
the
unadjusted
condi-
tion.
If
the
playback
modes
of
both
A-
and
B-decks
have
been
adjusted,
the
adjustment
is
finished
without
ad-
justing
anything.
If
either
deck
does
not
have
half,
adjustment
is
judged
to
be
ERR
and
finished.
¢
Key
matrix
KSO
<5
pin>
|
KS1
<6
pin>
|
KS2
<7
pin>
DOLBY
Resetting
>TEST
1
KRO
<3
pin>
KR1
<2
pin>
KR2
<1
pin>
KR3
<4
pin>
<
>:CN9
(X28:
A/6)
When
performing
this
operation,
press
the
keys
of
the
receiver
having
the
names
of
the
above
keys
used
in
the
normal
mode.
For
example,
since
the
[CCRS/CRLS]
key
is
used
as
the
key
for
resetting
in
the
normal
mode,
the
[CCRS/
SRLS]
key
of
the
receiver
is
used
for
this
purpose.
Since
data
cannot
be
output
in
series
for
the
adjust-
ment
in
the
system
mode,
the
adjustment
value
is
indi-
cated
by
the
counter
of
the
receiver.
Set
the
selector
of
the
receiver
to
TAPE
at
this
time,
however.
Automatic
adjustment
mode
of
recording
system
¢
Self-adjustment
items
-
Correction
of
sensitivity
of
recording
meter
amplifier
(L,
R)
-
Adjustment
of
recording
level
of
B-deck
(L,
R)
-
Adjustment
of
recording
bias
of
B-deck
(L,
R)
¢
Contents
and
procedure
of
adjustment
(1)
Correction
of
sensitivity
of
meter
for
adjustment
of
recording
(L,
R)
:
Initial
setting
(2)
Adjustment
of
recording
level
of
L/Rch
of
B-deck
Writing
of
adjustment
data
of
recording
equalizer
of
B-deck
(When
recording
of
B-deck
is
finished
nor-
mally)
(3)
Adjustment
of
recording
bias
of
L/Rch
of
B-deck
Writing
of
adjustment
data
of
bias
of
B-deck
(When
recording
of
B-deck
is
finished
normally)
(4)
Writing
of
finish
data
(When
all
items
are
finished
normally)
¢
Setting
System
(A-E5+X-E5)
:
Shorting
the
test
pin
of
(X28)
(TP4
—-BE
TP6)
by
a
diode,
press
the
POWER
key
of
the
receiver
(A-E5).
Unit
(X-E5)
:
Shorting
the
test
pin
of
(X28)
(TP4
—-PF
TP6)
by
a
diode,
press
the
POWER
switch
of
the
power
supply
jig.
