5.11.2 Electrical connection
DANGER
Danger through incorrectly dimensioned connection
cables.
The system is intended exclusively for operation
with the connection pipes provided (or equivalent).
In case of doubt, contact the manufacturer/supplier.
Lay the connection cable securely (e.g. conduit pipe)
from the system tank to the control unit. Ensure that there
is adequate cable length for the maintenance of the elec-
trical components.
Attach ferrules (length 8 mm) to the cable ends.

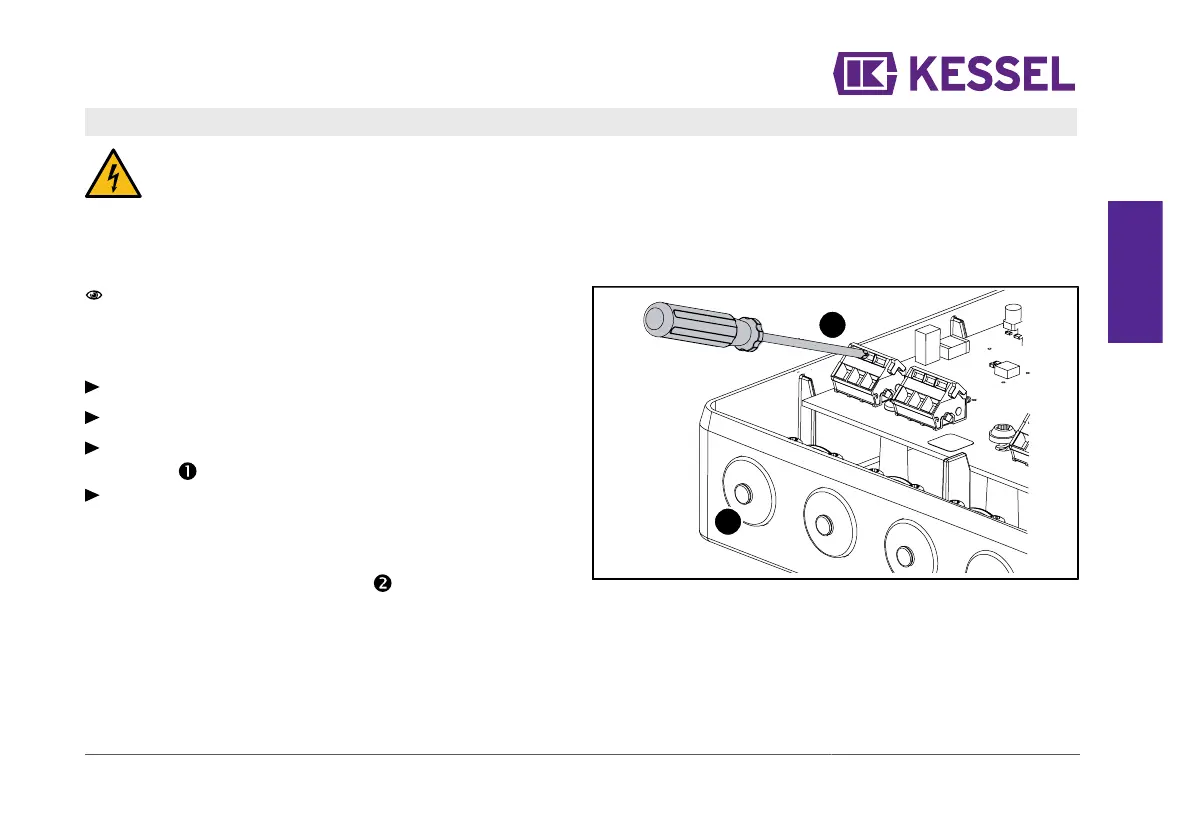

Unscrew and remove housing cover.
Feed connection cable through suitable cable pass-
through.
Fasten connection cable to the terminal strips in accor-
dance with connection diagram.
To do so, use a suitable screwdriver to hold down the
respective cable clamp against the spring pressure until
the cable end has been inserted.
EN
016-102_01 DE_EN_FR Pumping station / Installation and operating manual 75 / 144
