Kessel Aqualift S Compact - Black Tank Installation Example

Installation and operating manual 43 016-059

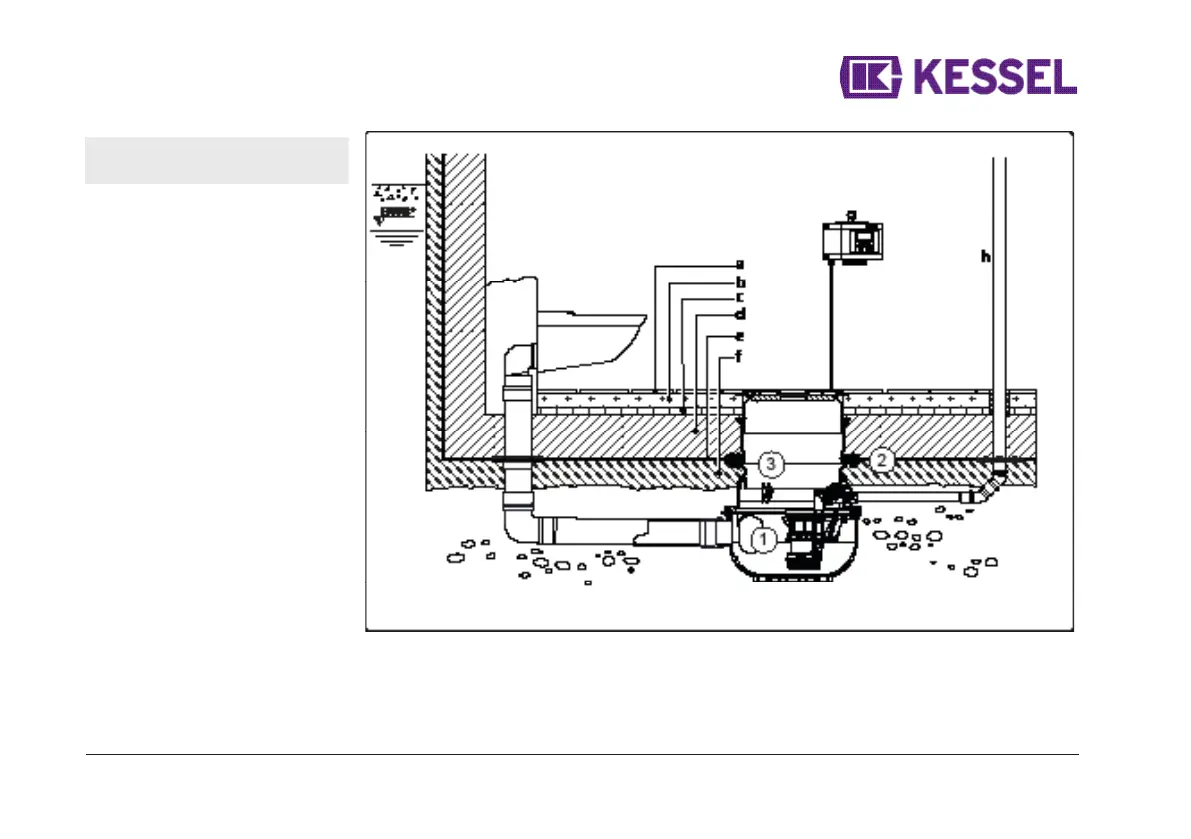

Black tank installation example
* Maximum groundwater level to be expected, max. 3 m permissible.
Fig. [8]
Item no.
„Fig. [8]“
Black tank installation
example
(1)
Aqualift F
(2)
Seal set, art. no. 83073:
Extension section with flange
and mating flange
(3)
Extension section
Art. no. 83070
a
Tiles
b
Screed
c
Insulation
d
Concrete floor
d
Waterproofing layer
f
Protective concrete
g
Control unit
h
Pressure pipe
BWS*
Rated water level
