Kessel Aqualift S Compact - White Tank Installation Example

Installation and operating manual44 016-059

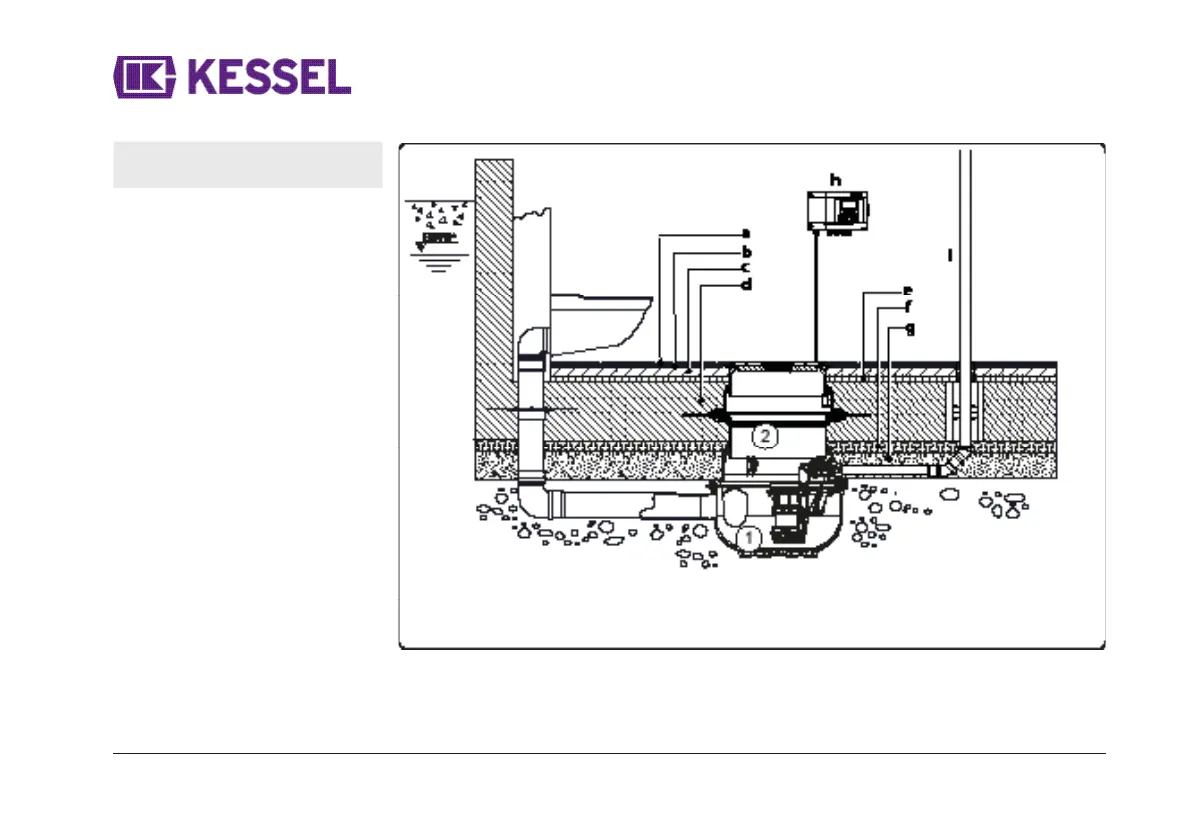

White tank installation example
Item no.
„Fig. [9]“
White tank installation
example
(1)
Aqualift F
(2)
Extension set with central
flange, art. no. 83075
a
Tiles
b
Waterproofing layer
c
Screed
d
Concrete floor
d
Insulation
f
Insulation
g
Clean layer
h
Control unit
i
Pressure pipe
BWS*
Rated water level
* Maximum groundwater level to be expected, max. 3 m permissible.
Fig. [9]
