Installation and operating manual 45 016-059
4.4 Fit inlet and conduit pipe

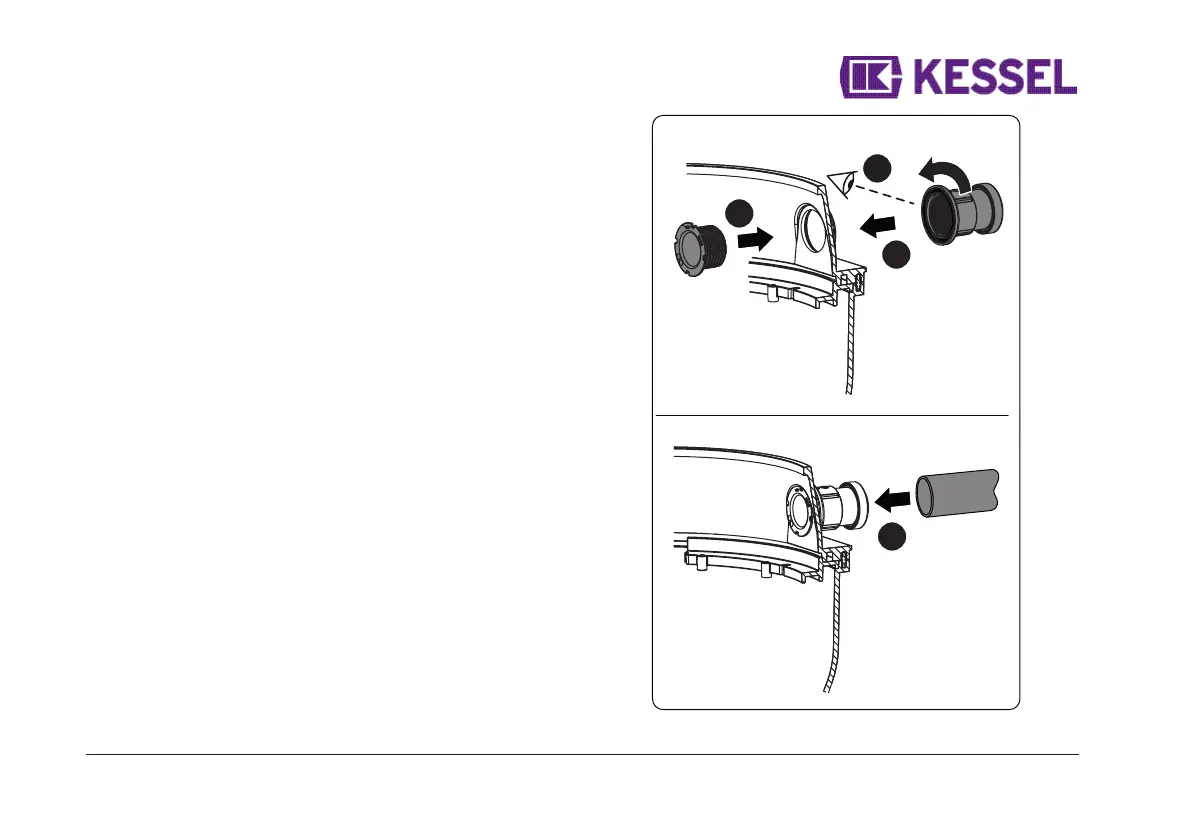

Conduit pipe connection nozzle (DN50)
:
L The conduit pipe is to be installed with max. 45° bends.
Check whether the seal is in the socket. ➊
Feed the mating part for the nozzle into the drilled opening from the inside. ➋
Screw the mating part on hand-tight such that it is securely sealed. ➌
Slide the pipe in as far as it will go. ➍
Repeat these steps again for the inlet.
Fitting the inlet pipe:
Slide on sewage ground pipe with double socket (DN100) or PE welding socket
onto pre-assembled inlet nozzle (opposite conduit pipe) and connect firmly.
Check the positioning of the system tank and the tight fit of the connection on
the inlet nozzle.
Fig. [10]
2
4
1
3
