21
EN
CN4 Connector for interlock
INT.0 Interlock 0
INT.I Interlock 1
COM common interlock

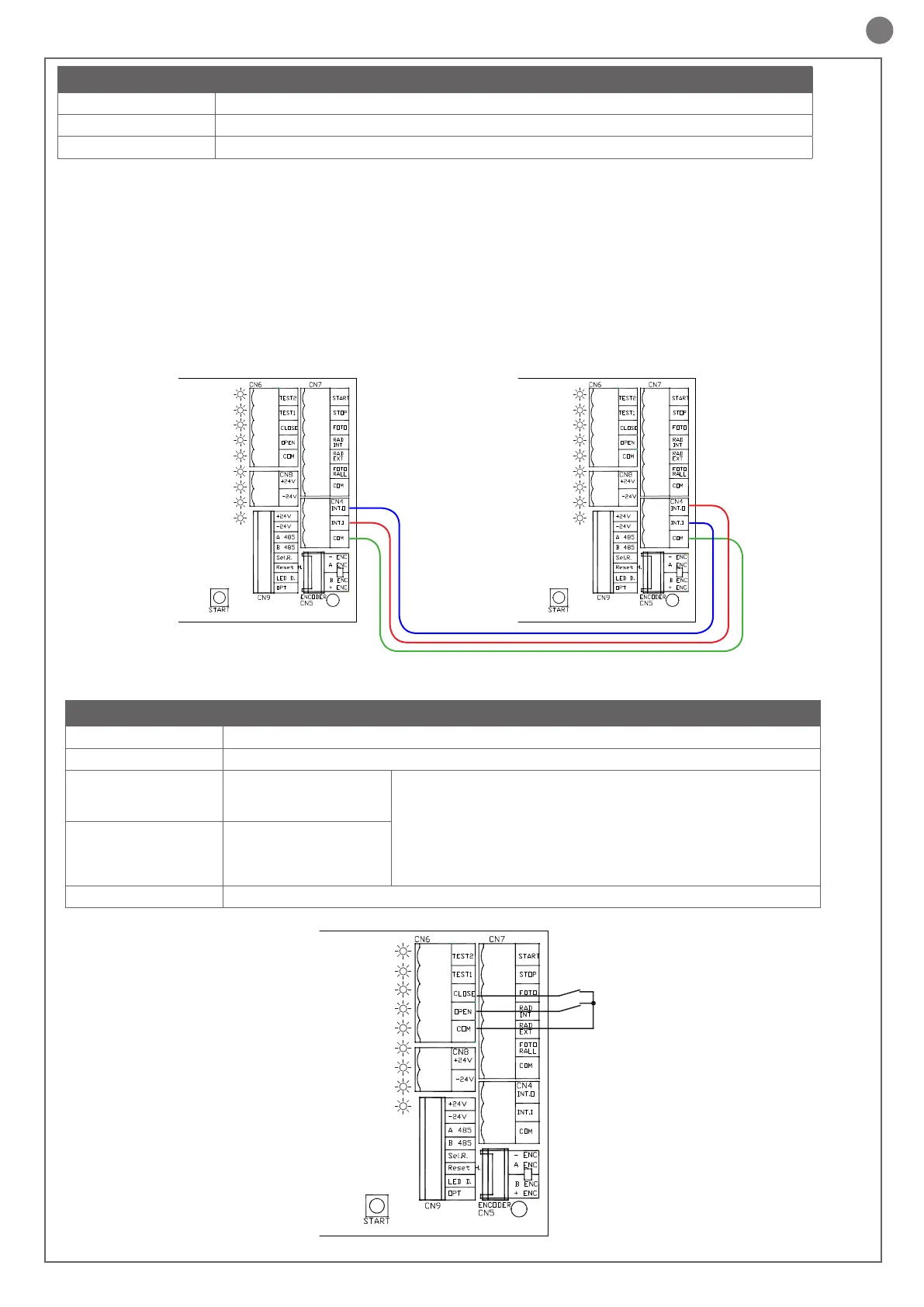

Interlock function
Door 1 Door 2
CN6 Connector for commands and tests
TEST2 Monitored input TEST 2 (See point 4.9 monitored devices)
TEST1 Monitored input TEST 1 (See point 4.9 monitored devices)
CLOSE
Input contact CLOSES
(Normally open)
The OPEN and CLOSE have priority and determine the opening or
closing the door, which remains open/closed as long as the command
is active.
During the opening or closing of the door executed via the OPEN/
CLOSE commands, the RAD INT, RAD EXT or START commands are
ignored.
A FOTO command sent during closing reopens the door immediately.
OPEN
Input contact OPENS
(Normally open)
COM Common inputs
It is possible to enable the interlock.
In this case the door, once received the radar pulse, is opened only
if the input INT.I is not active, and activates the output INT.O during
the entire opening - stop - closing cycle.
The radar pulse received while the input INT.I is active is stored and
executed only when the input INT.I is deactivated.
If the interlock function is disabled, the input INT.I becomes a com-
mand for the partial opening of the door.
Select the function Y=1 in the two control units when the doors must
alternate opening.
This function permits opening the second automatic door only when
the rst automatic door is completely closed and vice versa, and is
used for classic insulated doors and safety reasons.
START
CLOSE
RAD EXT
STOP
OPEN
FOTO RALL
RAD INT
INTERLOCK
NO
NO
