Key Automation CT-PAE User Manual

EN
22
CN7 Connector for start-stop and internal/external radar and photocells
START START input (Normally Open)
The START command determines the opening of the door, even in a locked state.
The command can be programmed with logical step by step or timed via the U parameter “OPEN
duration”
STOP STOP input contact (Normally Closed)
The STOP command causes the immediate stopping of the door and, as long as it remains active,
any other commands are ignored.
FOTO Photocells input CONTACT (Normally Closed)
The FOTO command determines the reopening of the door being closed and, as long as it remains
active, does not allow for reclosing.
RAD INT Internal radar INPUT CONTACT (Normally Open) Permits opening.
RAD EXT External radar INPUT CONTACT (Normally Open) Permits opening.
FOTO RALL Photocells deceleration input CONTACT (Normally Closed)
The FOTO RALL command determines the slowdown of the door, both opening and closing; if the
contact is kept while opening, it does not allow for reclosing
COM Common inputs
CN8 Power connector accessories 24V
+24V Positive for powering radar and accessories
-24V Negative for powering radar and accessories
Connections
Connections

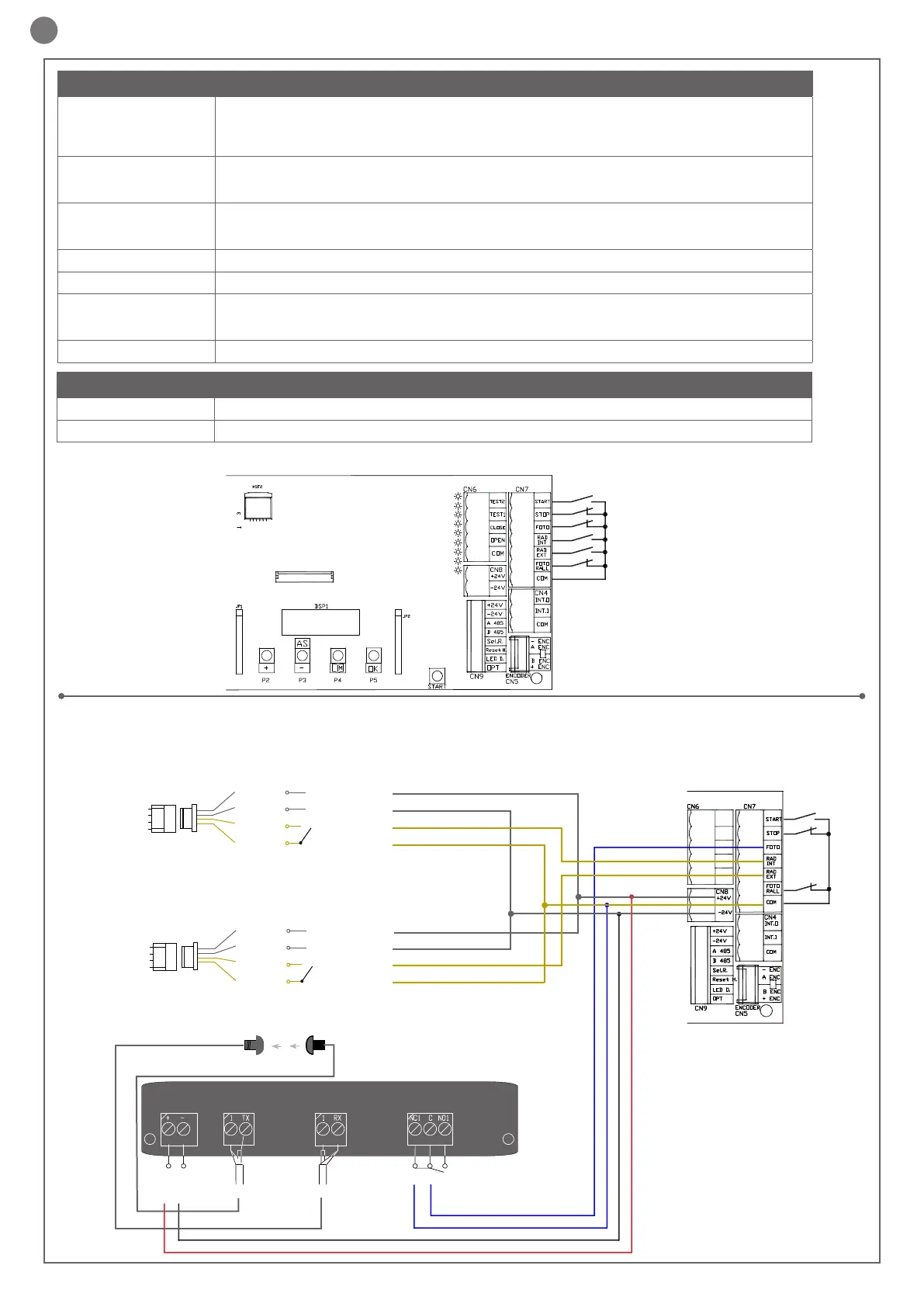

CONNECTIONS DIAGRAM AND SIGNALING LEDS
Sensor
connector
Sensor
connector
Cable colors
Cable colors
Descrip radar
Descrip radar
INTERNAL RADAR
Cable
connector
Cable
connector
Grey
Grey
Yellow
Yellow
Grey
Grey
Yellow
Yellow
START
CLOSE
RAD EXT
STOP
OPEN
PHOTO RALL
FOTO
RAD INT
INTERLOCK
CONNECTIONS DIAGRAM 900PA014S
900CT-PAE
CONNECTIONS DIAGRAM 900PA012 HR942D
900PA012MW HR50
900PA012 HR942D
900PA012MW HR50
+24V
-24V
RAD INT
COM
+24V
-24V
RAD EXT
COM
AC/DC 12 ~32V
AC/DC 12 ~32V
N.O.
N.O.
EXTERNAL RADAR
AC/DC 12 ~32V
AC/DC 12 ~32V
N.O.
N.O.
TX1
RX1
+ -
~ ~
12/24Vac
NC C N0
NO
NC
NC
NO
NO
NC
COM
NO
NC
NC
COM
