Border Width and Color
• Border width = 0-9 pixels. If 0, then there is no border applied
• Color uses a decimal value RGB code chart, with the value of 0-256 for each
o You may reference an online RGB Color Codes chart for more information
Additional References are currently available for the KD-MLV4x2Pro (previous generation product). You can
follow these documents but multiply each X/Y pixel value by 2 since multi-view mode for KD-MLV4x2Pro was
1080p, and KD-MLV4x4Pro multi-view mode is 4K. Documents will be updated ASAP and linked in future
manual revisions.
• Custom Presets Quick Guide provides in-depth explanation on X/Y axis location and calculation
• Common Custom Presets provides X/Y values for commonly used custom layouts

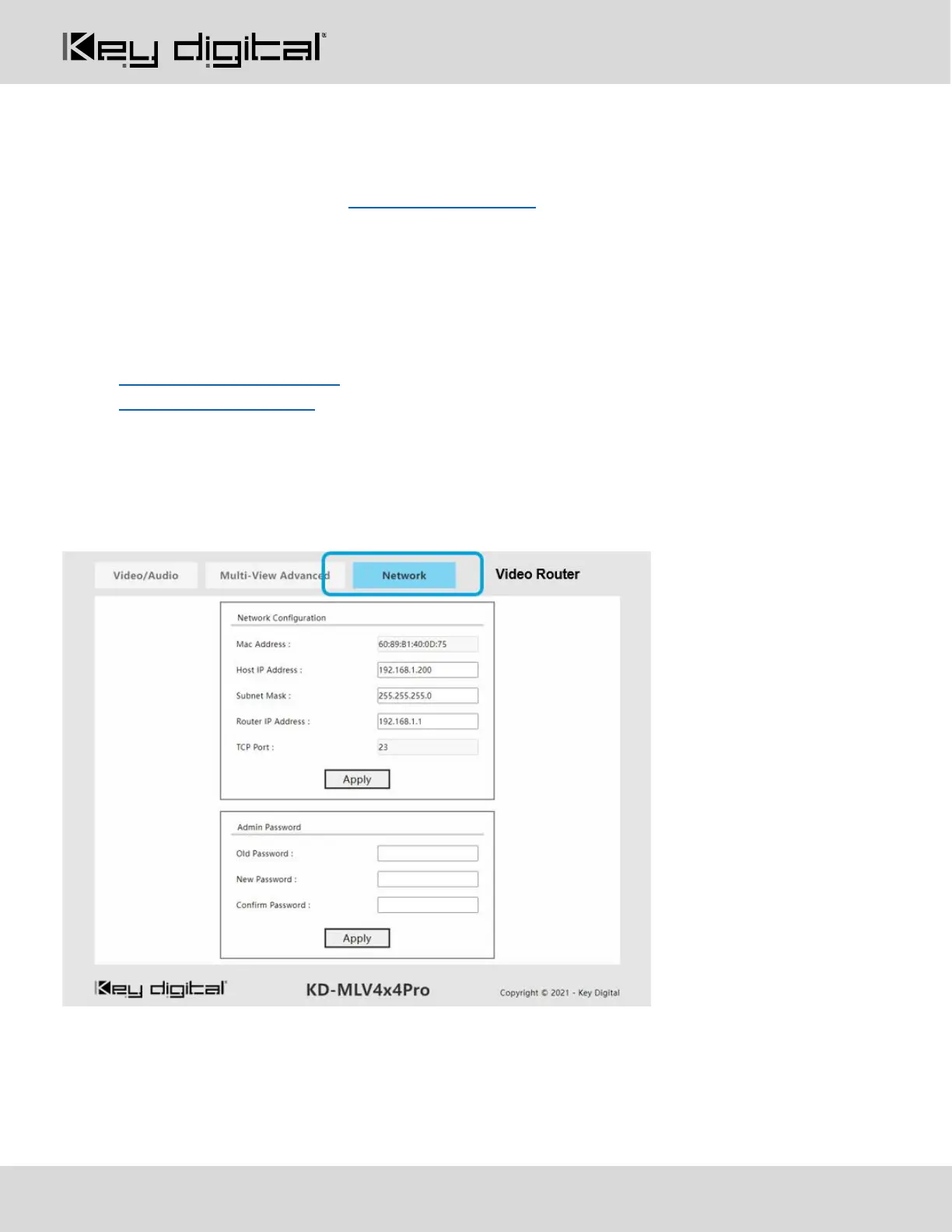

Network Tab
View and/or update IP settings for the KD-MLV4x4Pro.
