LED Indicator Lights
Power:
» Color: Green
» Solid illumination during power on state, as provided by healthy connection
with power supply.
» Steady blink if power is not adequate and/or if there is a connectivity problem
with the KD-X222PO Rx unit
HDMI Link (HDMI Input/Output):
» Color: Blue
» Tx Unit: Solid illumination from active signal (HDMI TMDS) reception from
connected source device
» Rx Unit: Solid illumination from active Hot Plug Detection voltage with
connected display/output device
» If Hot Plug Detection is forced to input device from Tx unit, the HDMI Active
light will illuminate solid regardless of HDMI signal from connected device.
CAT5e/6 Input/Output Link:
» Color: Blue
» Tx Unit: Solid illumination from active link and Hot Plug Detection voltage
from Rx unit
» Rx Unit: Solid illumination from active link with Tx unit
Forced Hot Plug Detection (HPD)
Hot Plug Detection (HPD) may be forced on the Tx Rx unit in order to provide
connected devices with necessary voltage to inform the device that a partner
(display) is connected and active. If the Control rotary is set to any HPD Bypass
setting, HPD signals from the output to the input device will pass as normal. In
cases of many layers of connectivity, HPD may be lost leading to no signal at the
display. In those cases, fix the Control rotary to any Forced HPD setting.
Range and Resolution:
Distance performance is significantly increased when using Key Digital
KD-CAT6STP1X Super CAT6/STP Cabling.
➔ Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling
➔ Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using third-party CAT5e/6 UTP/
STP cabling
➔ Up to 250 ft. @ 1080p / 1920x1200 using KD-CAT6STP1X cabling
➔ Up to 200 ft. @ 1080p / 1920x1200 using third-party CAT5e/6 UTP/STP cabling

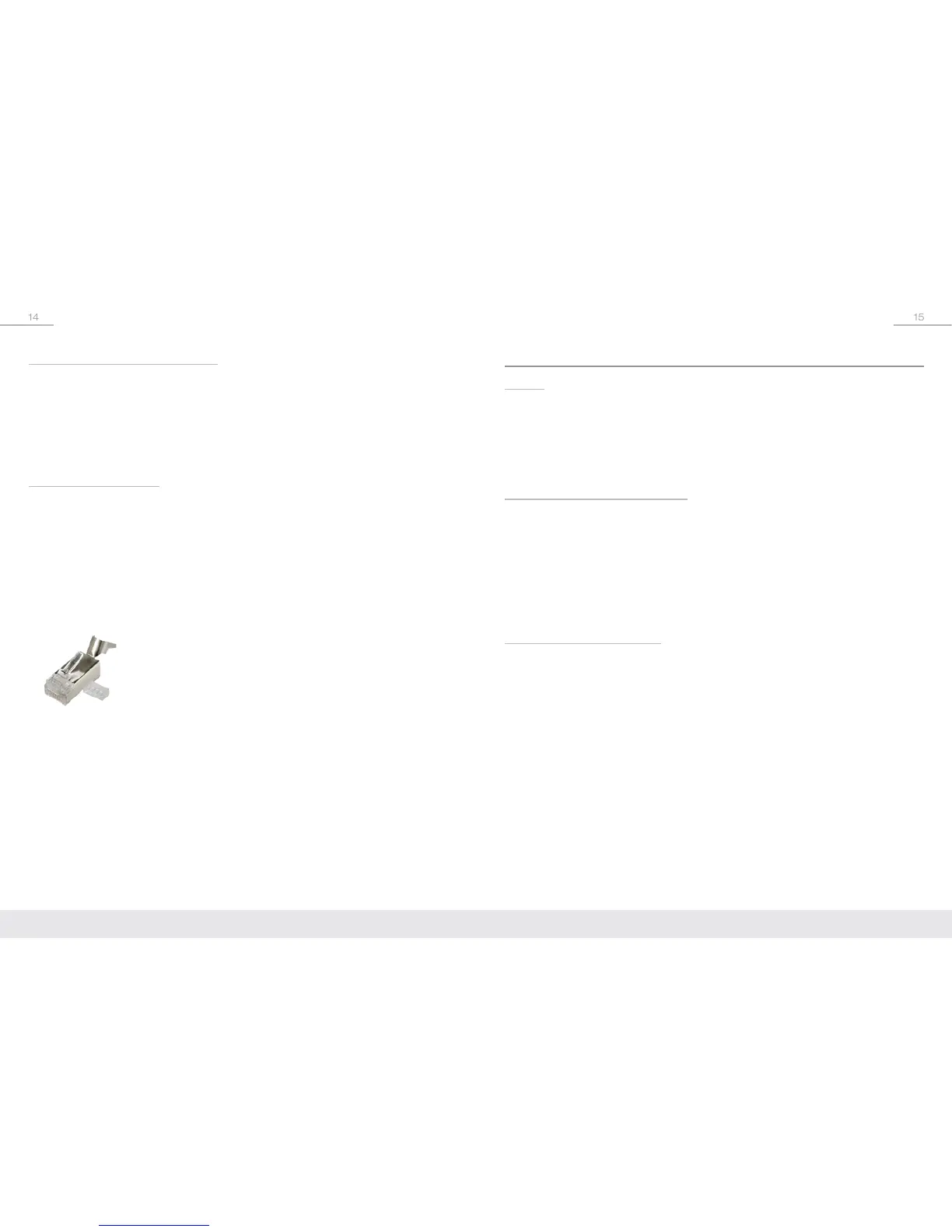

NOTE: Use shielded metal RJ45 connectors with soldered
ground wires when terminating shielded CAT5e/6.
Key Digital part: KD-RJ45SC (compatible with
KD-CAT6STP1X and other third-party CAT6/STP)
