Key-Disp KD218 - Product Identification and Specifications; Model and Appearance; Technical Specifications

1
Product name and Model
E-bike Intelligent LCD display
Model: KD218
Specifications
●24V/36V/48V Power Supply
●Rated working current: 10mA
●The maximum working current: 30mA
●Off-state leakage current: <1μA
●Operating temperature: -20℃~ 60℃
●Storage temperature: -30℃~ 70℃
Appearance and Size

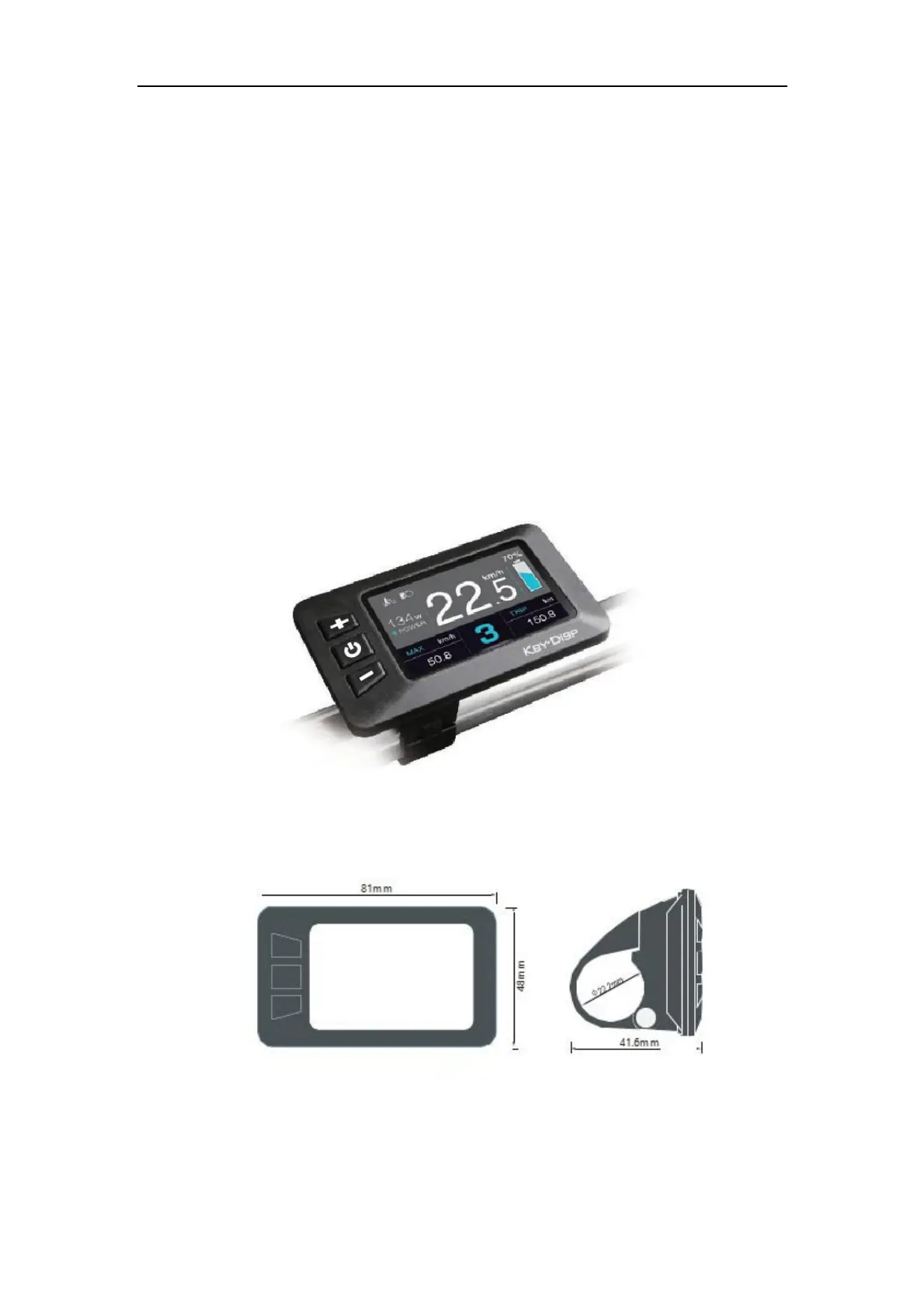

Product appearance and dimensional drawing (unit: mm)
