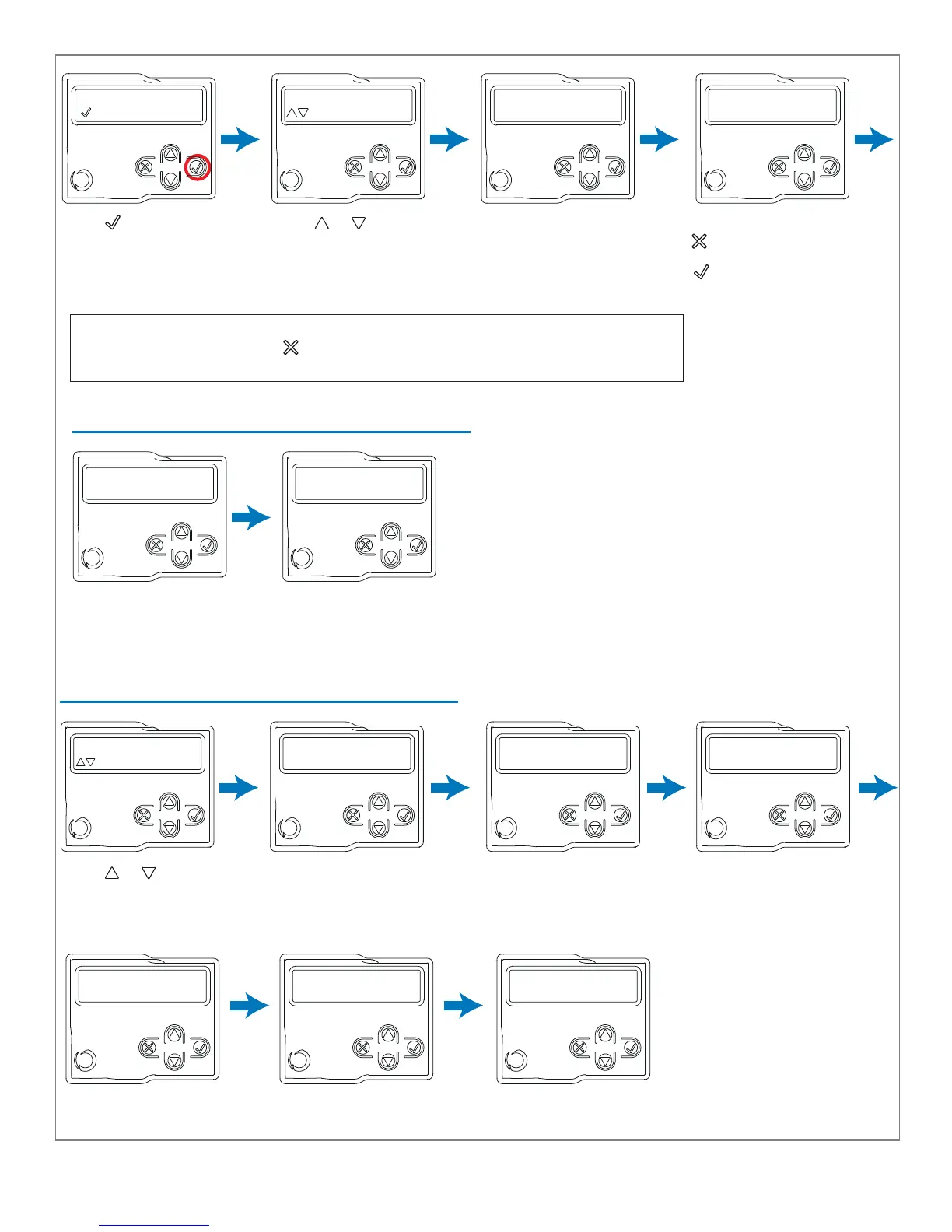

SINGLE LEAF CONFIGURATION
Press to begin
learning OPEN limit
NOTE: M1 must always open before M2. If the motors are inverted, stop the procedure
in the control unit by pressing on the display, swap the power supply terminals of the
two motors and start again from the beginning.
opening m1...
reverses direction
Press or to
reverse direction of
M1 if gate is not
traveling in the OPEN
direction
unlock motor (s)...
= OK
learning...
opening...
Opening limit of M1 will
be learned automatically
opening complete
double leaf?
Press or to
reverse direction of M2
if gate is not traveling in
the OPEN direction
Closing limit of M1 will
be automatically
learned
programming successfully
completed: press button
Press any button to
exit programming
mode
learning...
closing m
1
DOUBLE LEAF CONFIGURATION
learning...
opening...
learning...
Closing completed
Opening limit of M2 will
be learned automatically
Closing limit of M1 will
be learned automatically
Press any button to exit
programming mode
learning...
closing m2
Closing limit of M2 will
be learned automatically
learning...
Closing M1
Programming successfully
completed. Press button
learning...
opening completed
opening m2
to reverse direction
Press either:
if configuring single leaf
if configuring double leaf
