KEY RAY - QUICK PROGRAMMING; Programmer Connection and Initial Setup

Note: If this programming mode is used, the slow down length will reset to the default values shown in the “Basic
Settings” table parameter 10, with the same percentage during both opening and closing.

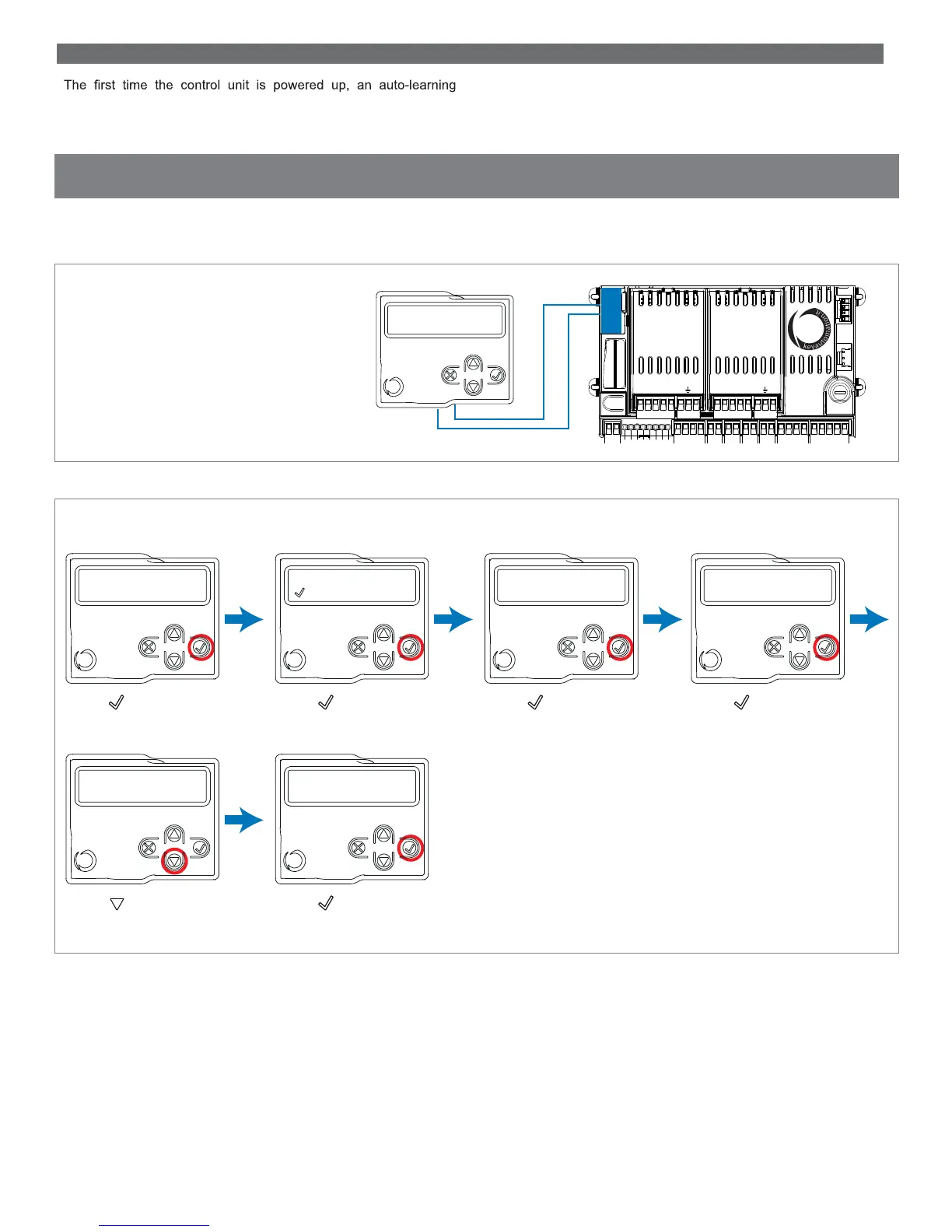

STEP 1: Connect display programmer
to the connection port of the 14A
Controller as shown.
STEP 2: Select the type of installation and the type of motor to be installed by taking the following steps:
WARNING: Selecting a motor type different from
the one connected may damage the system.
QUICK PROGRAMMING WITH DISPLAY PROGRAMMER
SBS
M1
M2
CS1 CS2 V
+
ENC NEG M
-
M
+
LS1 LS2 V
+
ENC NEG M
-
M
+
14A
Press to select the
14A Controller
Quick programming
= OK
Press to select
“Quick Programming”
Installation:
swing gate
Press to select
“Swing Gate” installation
warning data will
be deleted. confirm?
Press to confirm
deleting of current data
and to program the gate
select motor type
ray 2545
select motor type
4024
Press to scroll to
motor type ‘4024’
Press to select
motor type ‘4024’
Auto-learning of the travel stroke
procedure must be carried out to acquire fundamental parameters
such as the travel stroke length and deceleration points.
