33

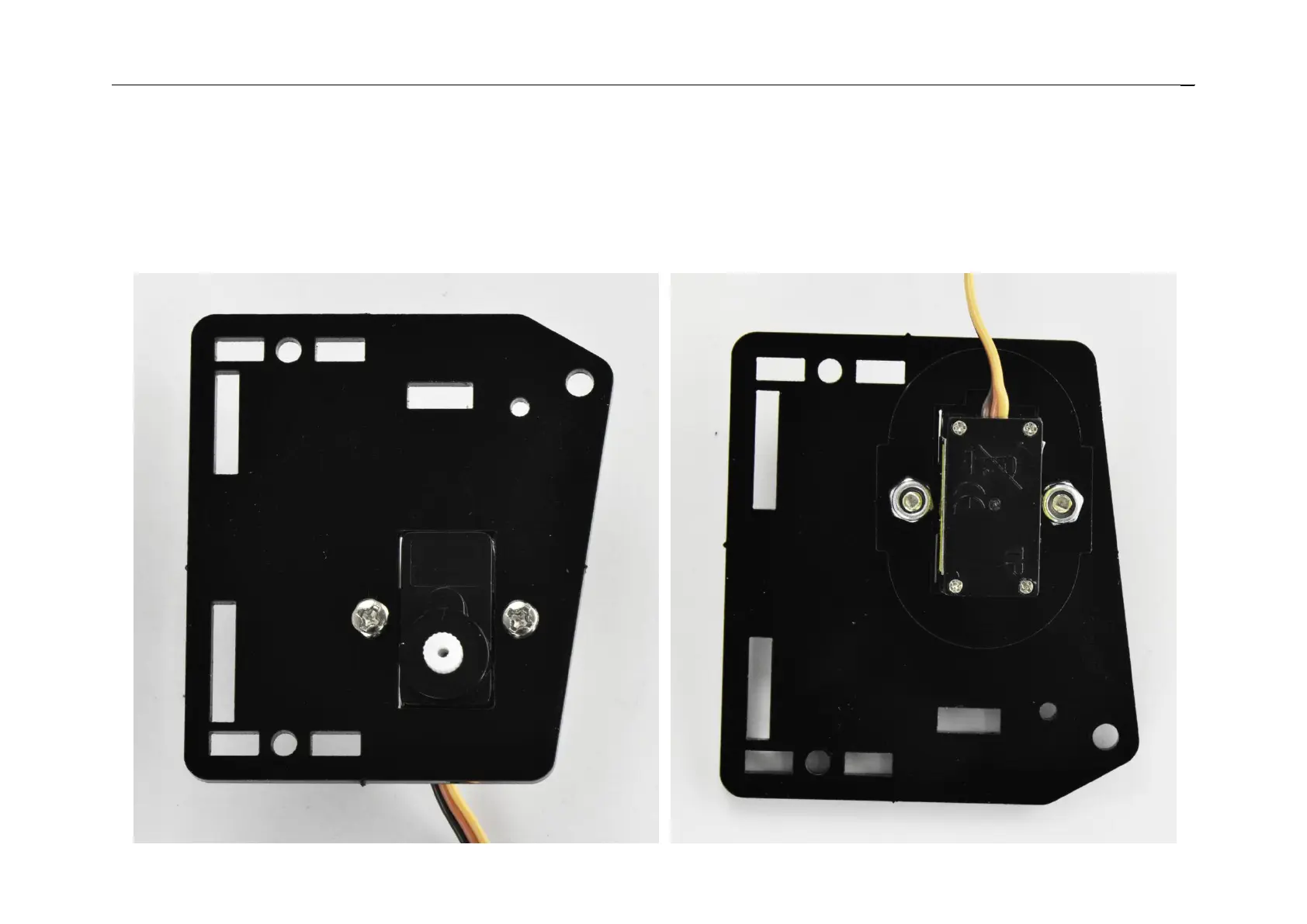

Then screw the Left servo plate to acrylic plate⑤ using two M3 hex lock Nuts⑥. Get the Left servo
base plate shown below.
