34

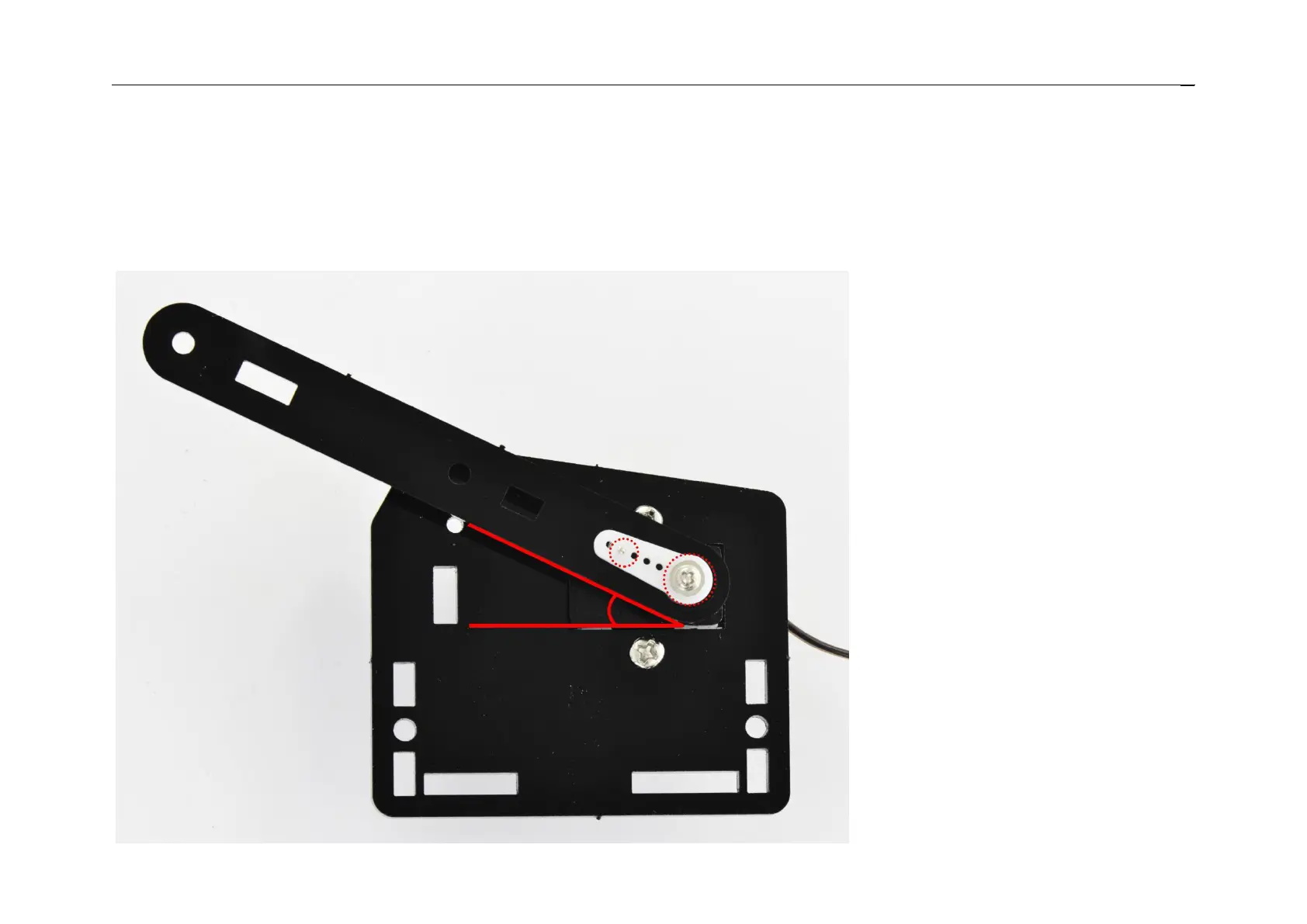

After that, screw the acrylic plate joint and white servo mount⑦ to the Left servo base plate using a
M2x8MM tapping screw and a M2x5MM tapping screw⑧.
