Installation Note N9010-90067 11
Option EXM, External Mixing Upgrade Kit
Top Brace Removal
Refer to Figure 4, “Top Brace Removal,”. To remove the top brace (1), use the T-10 driver to
remove the eight screws (3) (0515-0372) attaching the top brace to the chassis. Remove and
discard the twelve screws (4) (0515-1946) attaching the top brace to the boards.

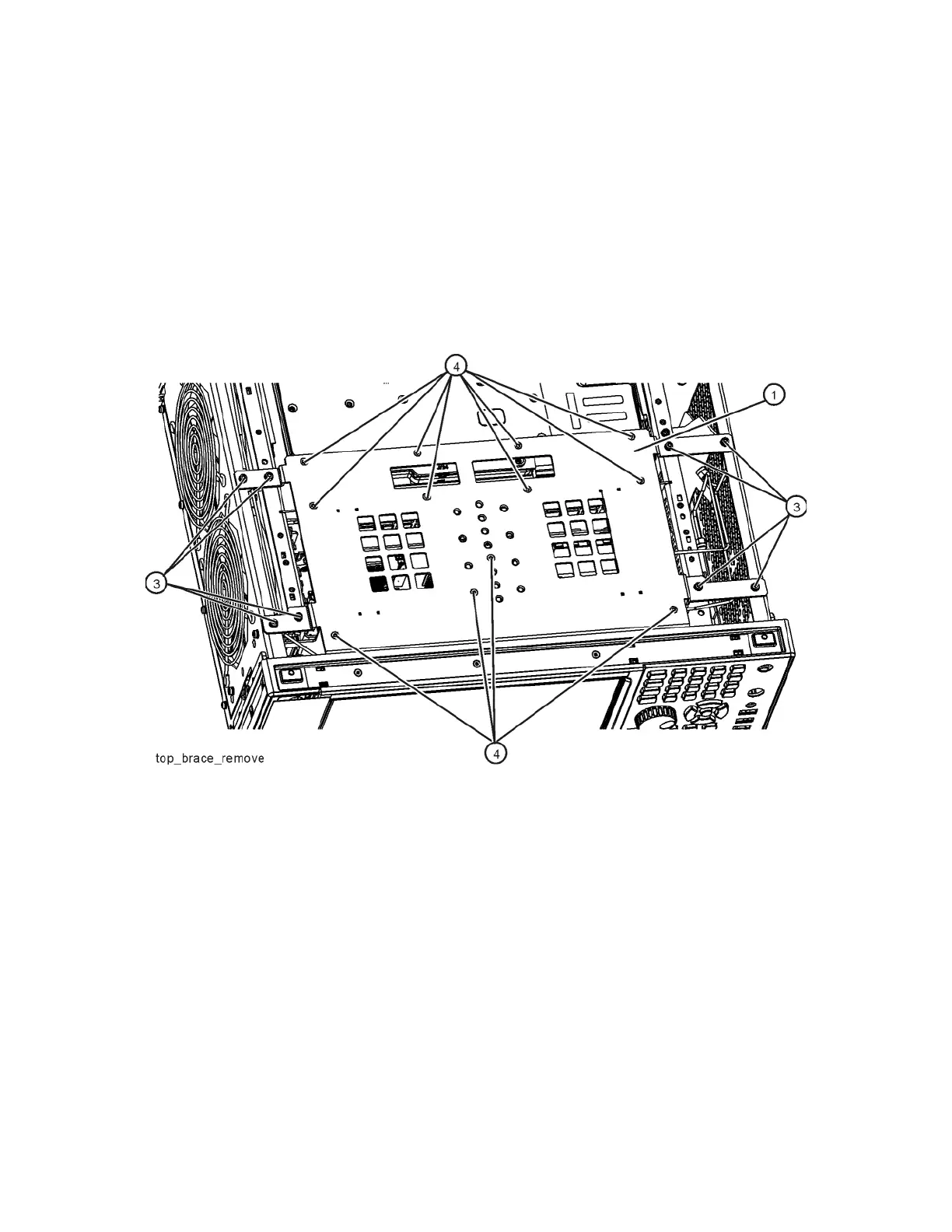

Figure 4 Top Brace Removal
