12 Installation Note N9010-90067
Option EXM, External Mixing Upgrade Kit
Front Frame Assembly Removal
1. Refer to Figure 5, “Front Frame Removal,”. Using the T-10 driver, remove the eight screws (1)
(0515-1035), four on each side, to detach the Front Frame Assembly from the chassis.
2. Refer to Figure 6, “Front Panel Cable,”. Pull the Front Frame Assembly carefully away from the
chassis. Remove the ribbon cable W1 from the motherboard. The cable has locking tabs on
each side, pinch and pull to release.

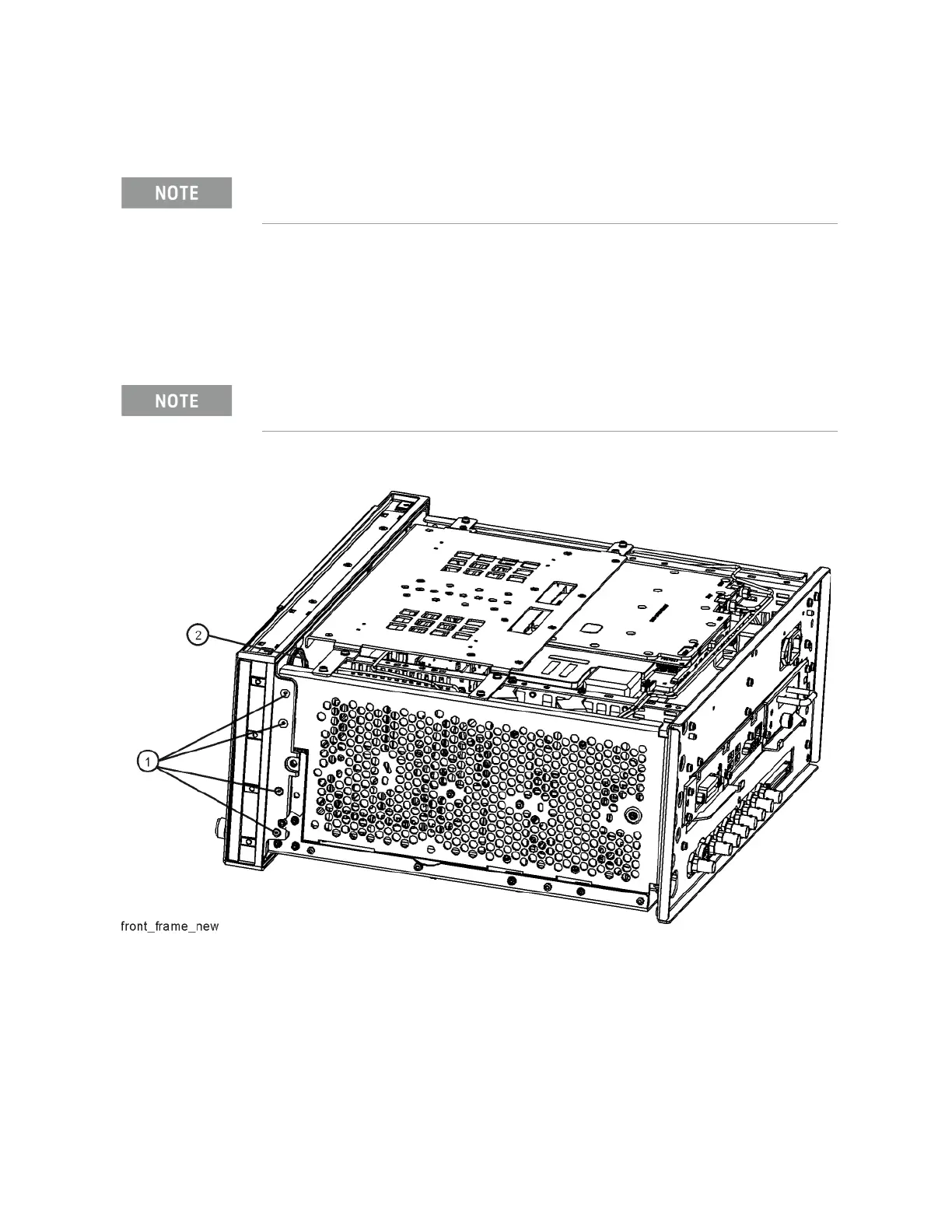

Figure 5 Front Frame Removal
Make sure any connectors on the front panel are removed.
W1 may have locking springs on each side. Depress the spring on each side of the connector to
remove from the motherboard.
