i3070 4-mod Inline System (E9986E)
Replacing the Power Supply 21

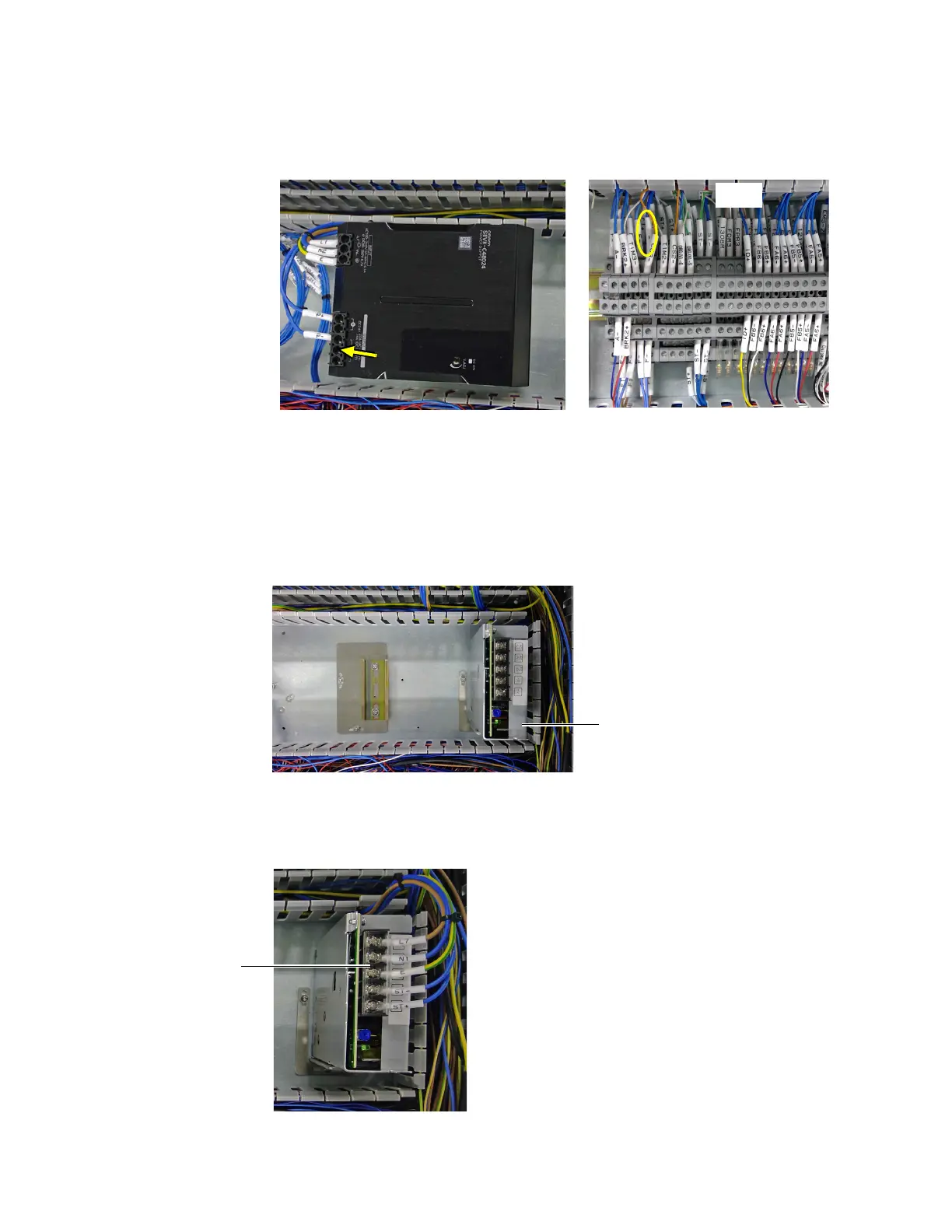

14 Connect a new cable labeled – from the Omron power supply to TB-2.
Proceed to Completing the installation.
Installing the Cosel 6.4 A AC/DC power supply
If installing the Cosel 6.4 A AC/DC power supply, follow step 15 through step 18.
15 Install the bracket and mount the new Cosel 6.4 A AC/DC power supply.
16 Connect the cables labeled ST+, ST-, E, N1, L7 (formerly from PS3) to the
Cosel power supply. Tighten the screws to secure the cables and close the
protective cover.
Cosel 6.4 A AC/DC power
supply with bracket
To Next Page
