18 Source User’s Guide
Basic Operation
Working with Files
Working with Files
— “Viewing a List of Stored Files” on page 18
— “Loading (Recalling) a Stored File” on page 19
The transceiver recognizes several types of files, such as state files, license
files, and correction files. Files are stored in the controller internal storage. This
section provides an overview of how to navigate the file menus, and how to
view, store, load, and move files.
See also: “Storing, Loading, and Playing a Waveform Segment” on page 29.
Viewing a List of Stored Files

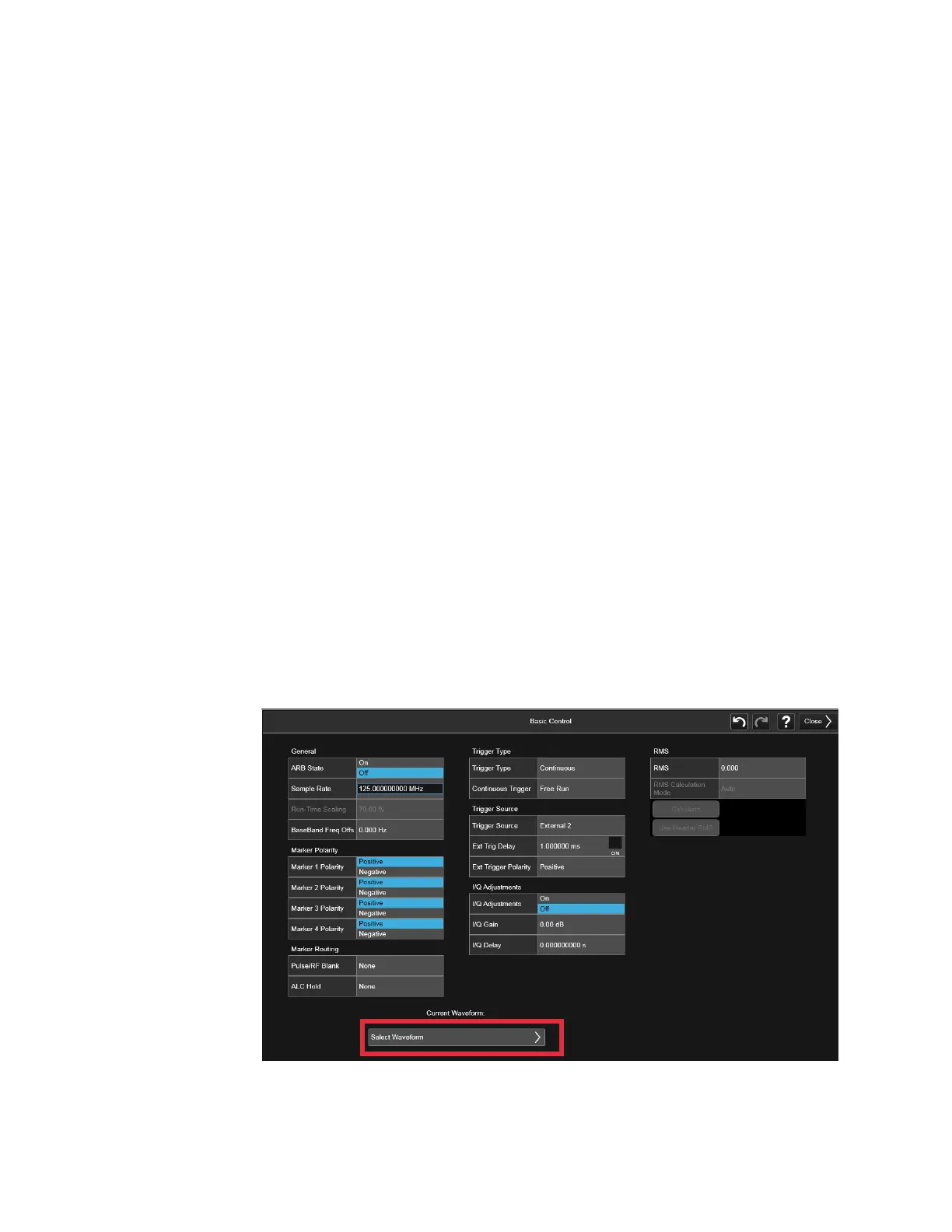

The arbitrary waveform generator (ARB) files that have been created on the
transceiver can be viewed using the Waveform Selection screen.
Viewing a List of Files Stored on the transceiver
1. Select Input/Output key and RF Source tab.
2. Press Modulation Setup, ARB Setup.
3. Press Select Waveform.
The files listed are identified as either waveform sequences or waveform
segments. A sequence is made up of two or more segments.
Use mouse to highlight a waveform for selection. Once the desired file is
highlighted, use the Select Waveform key to select the waveform to be output.
