Keysight Technologies M9410A User Manual

22 Source User’s Guide
Optimizing Performance
Using an Output Offset and Reference
Using an Output Offset and Reference
Setting an Output Offset
Using an output offset, the source can output a frequency or amplitude that is
offset (positive or negative) from the entered value.
RF Output = entered value - offset value
Displayed Value = output frequency (or power) + offset value
To set an offset:
— Frequency: Click Input/Output, RF Source, Frequency Setup, Freq Offset >
offset value > frequency unit keys.
— Amplitude: Click Input/Output, RF Source, Amplitude Setup, Amptd
Offset > offset value > dB keys.
Examples

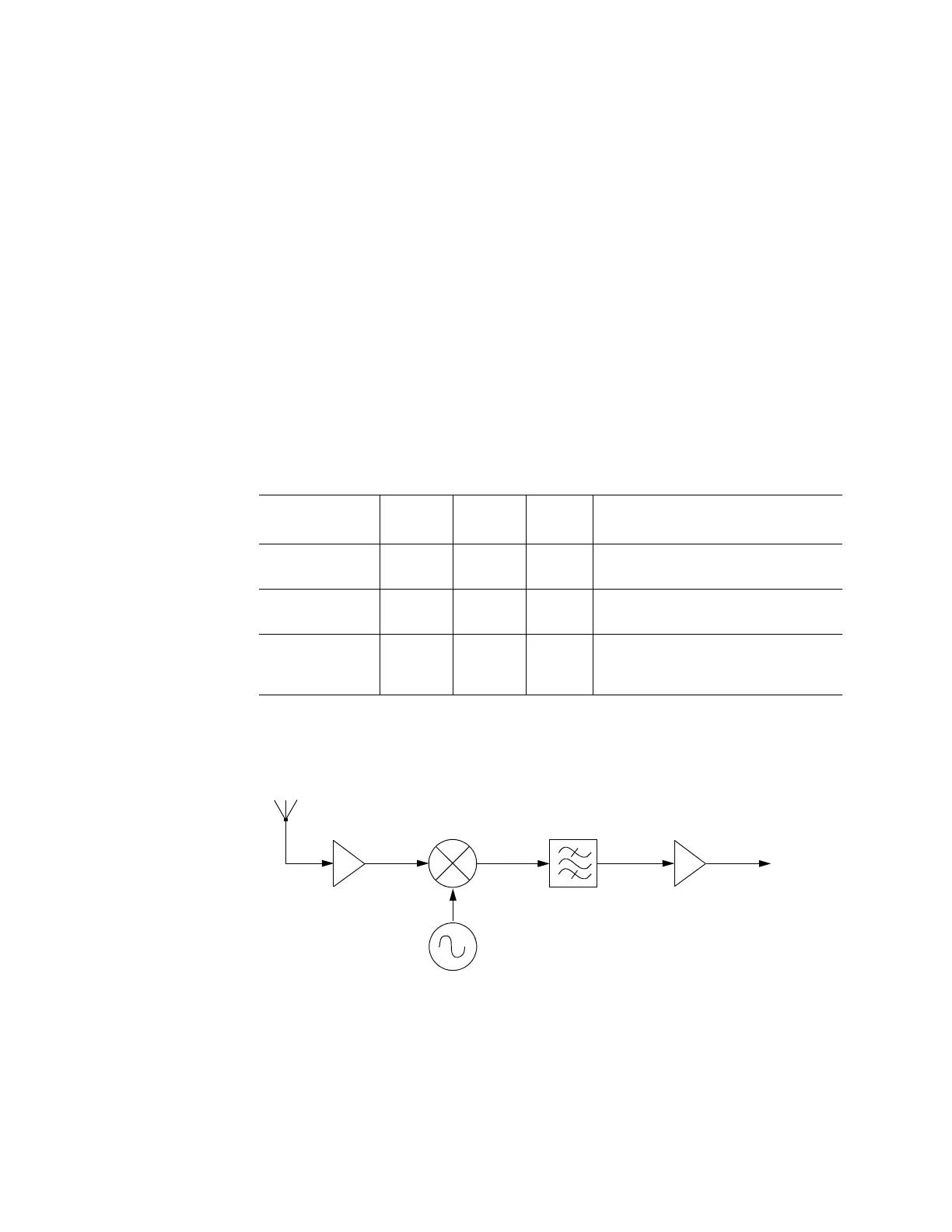

When using the source as a local oscillator (LO), you can use the offset to
display the frequency of interest, as illustrated below:
Parameter
Example
#1
Example
#2
Example
#3
Comments
Entered (and
displayed) Value:
300 MHz 300 MHz 2 GHz The entered value must be positive.
Offset: 50 MHz 50 MHz 1 GHz An offset value can be positive or negative.
Output Frequency: 250 MHz 350 MHz 3 GHz
The source alerts you if the 
output frequency or amplitude is out of
range.
IF Amplifier
RF Amplifier
Mixer
Filter
Source
(local oscillator)
Output Frequency = 1000 MHz
IF = 321 MHz
Antenna tuned to 1321 MHz
Selected Offset
321 MHz
679 MHz
Source Display
1321 MHz (Antenna Frequency)
321 MHz (IF Output)
IF Output
321 MHz
