Keysight CXG, EXG, and MXG X-Series Signal Generators Programming Guide 53
Using IO Interfaces
Using LAN
Using Telnet On a PC With a Host/Port Setting Menu GUI
1. Launch either the Start Menu’s Command Prompt or Run utility.
2. Type Telnet and press the Enter key (Command Prompt) or click OK
(Run utility). The Telnet connection screen will be displayed.
3. Click on the Connect menu then select Remote System. A connection
form is displayed. See Figure 2-4.
4. Enter the hostname, port number, and TermType then click Connect.
— Host Name−signal generator’s IP address or hostname
— Port−5024
— Term Type−vt100
5. At the SCPI> prompt, enter SCPI commands. Refer to Figure 2-5 on
page 53.
6. To signal device clear, press Ctrl–C.
7. Select Exit from the Connect menu to end the Telnet session.

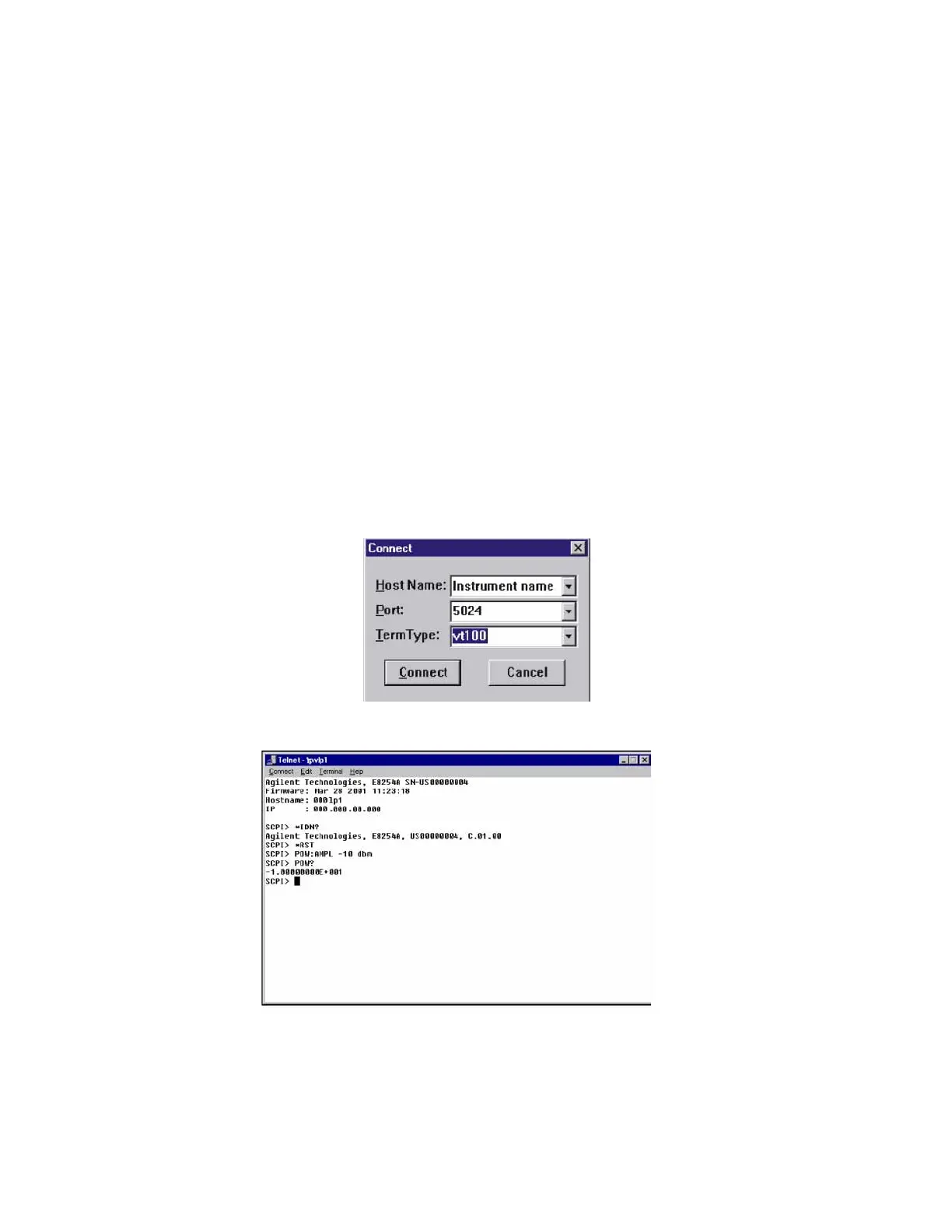

Figure 2-4 Connect Form (Keysight IO Library version J.01.0100)
Figure 2-5 Telnet Window
Using Telnet On a PC With a Command Prompt Interface
1. Launch either the Start Menu’s Command Prompt or Run utility.
