Installation Note N5222-90131 31
Description of the Upgrade
Installation Procedure for the Upgrade
Step 18. Assemble A35/A36 Source and A43/A44 Receiver
Attenuators
Refer to Figure 11 for this step of the procedure. New parts are listed in Table 2
on page 11. Use a T-10 TORX driver to tighten all screws.

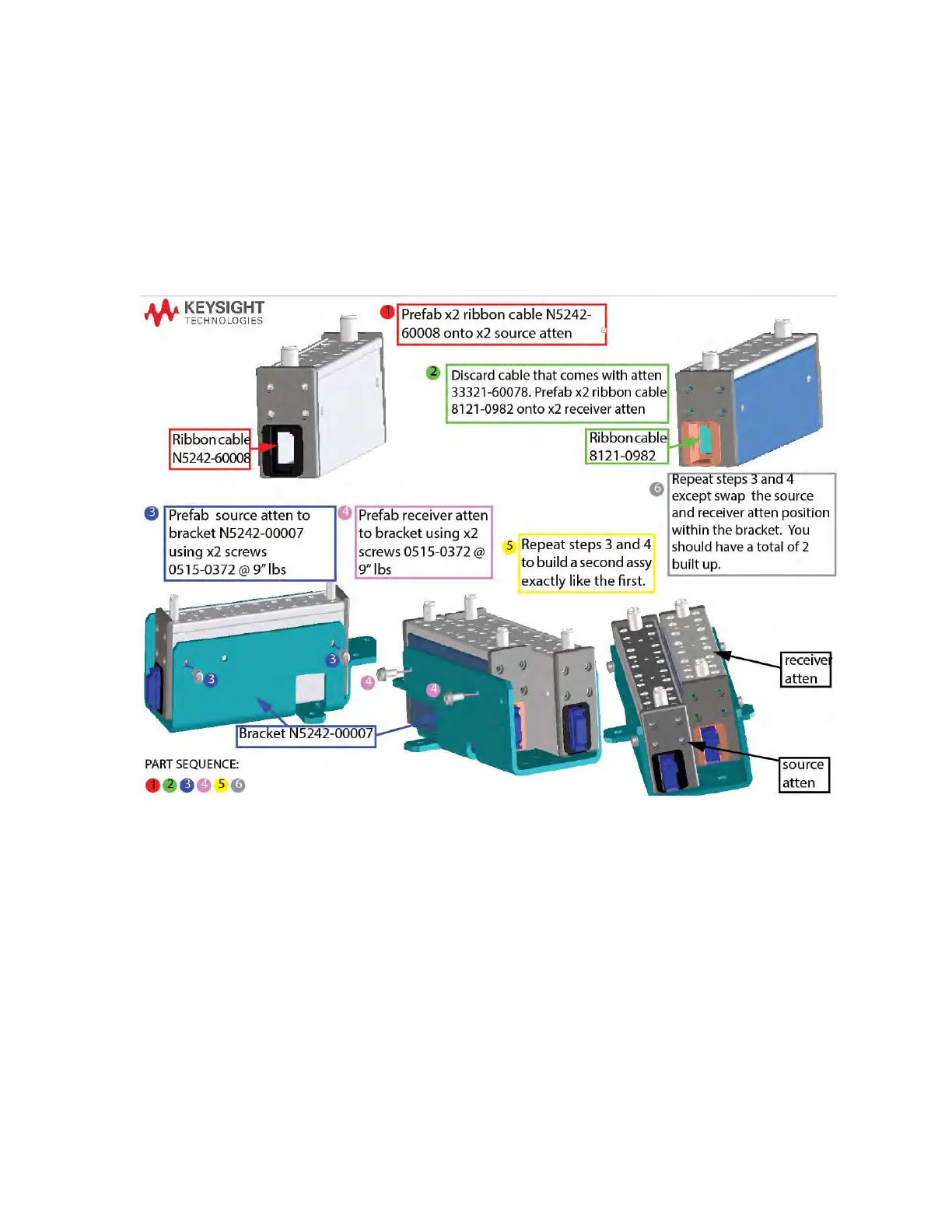

Figure 11 Assemble the Receiver and Source Attenuators (N5242-60008 (x4),
N5242-00007 (x2), 33321-60078 (x4), 8121-0982 (x2), 0515-0272 (x4))
