Installation Note N5222-90131 49
Description of the Upgrade
Installation Procedure for the Upgrade
Step 32. Install the New Mixer Brick (MXB) Cables and Route Cables
Reconnect the other end of the new mixer brick (MXB) cables (item ➀) and all
of the IF multiplexer (IF MUX) gray cables (items
➁ through ➆). Refer to Figure
28.

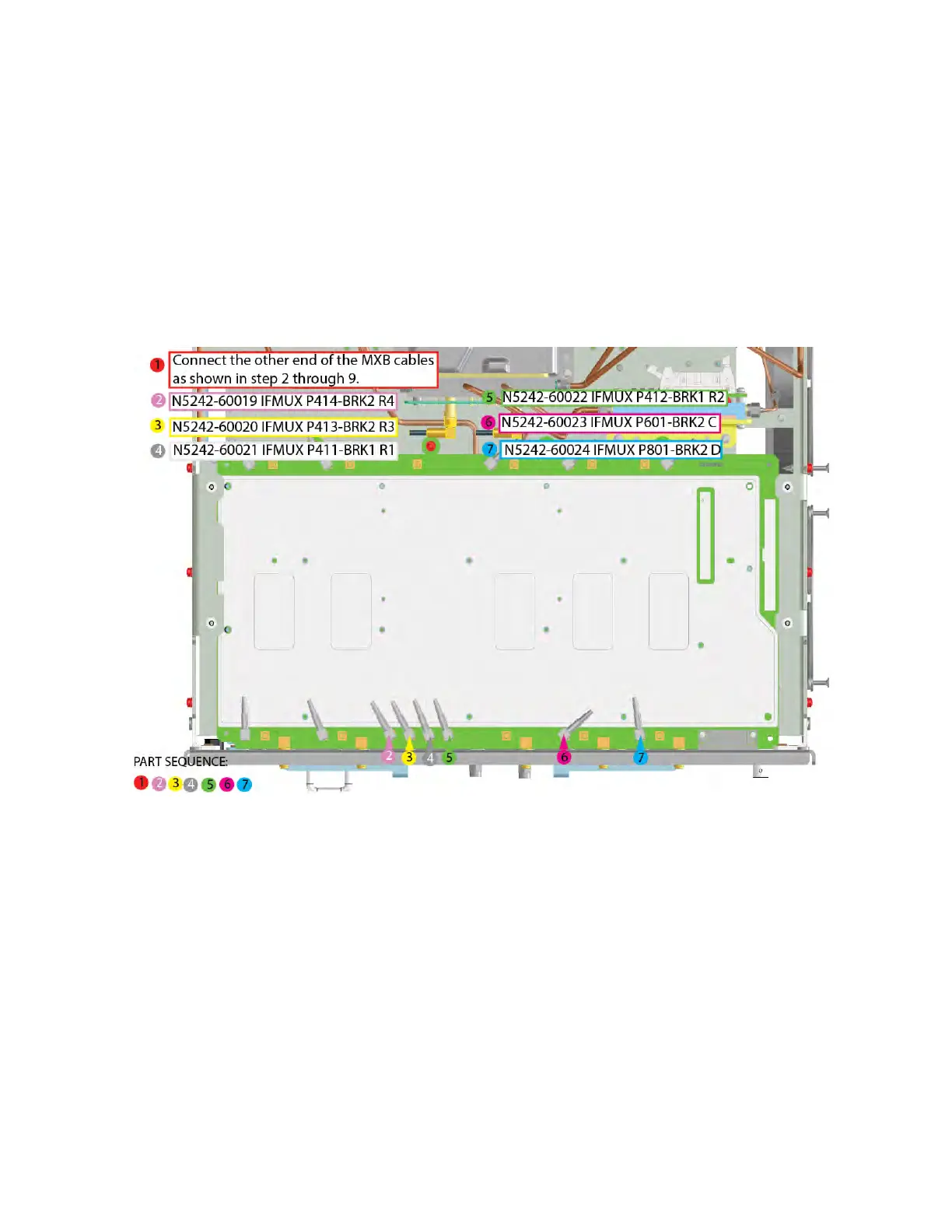

Figure 28 Connect the other end of the new IF gray cables to the IF MUX board
(N5242-60019, N5242-60020, N5242-60022, N5242-60023, and
N5242-60024)
