76 Installation Note N5222-90131
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 41. Install the Other End of the A70 LFE Board Cables to the A11
Direct Digital Synthesizer (DDS) Assembly Gray Cables
Refer to Figure 47. New parts are listed in Table 2 on page 11.
1. The analyzer should be positioned on its left side (fans facing upwards) as
shown.
2. Reconnect the previously installed W208 N5240-60112 (item
①) and
W210 N5240-60113 (item
➂) cables to the A11.
3. Connect the new W209 N5240-60114 (item
➁) flexible cable as indicated
in Figure 47.

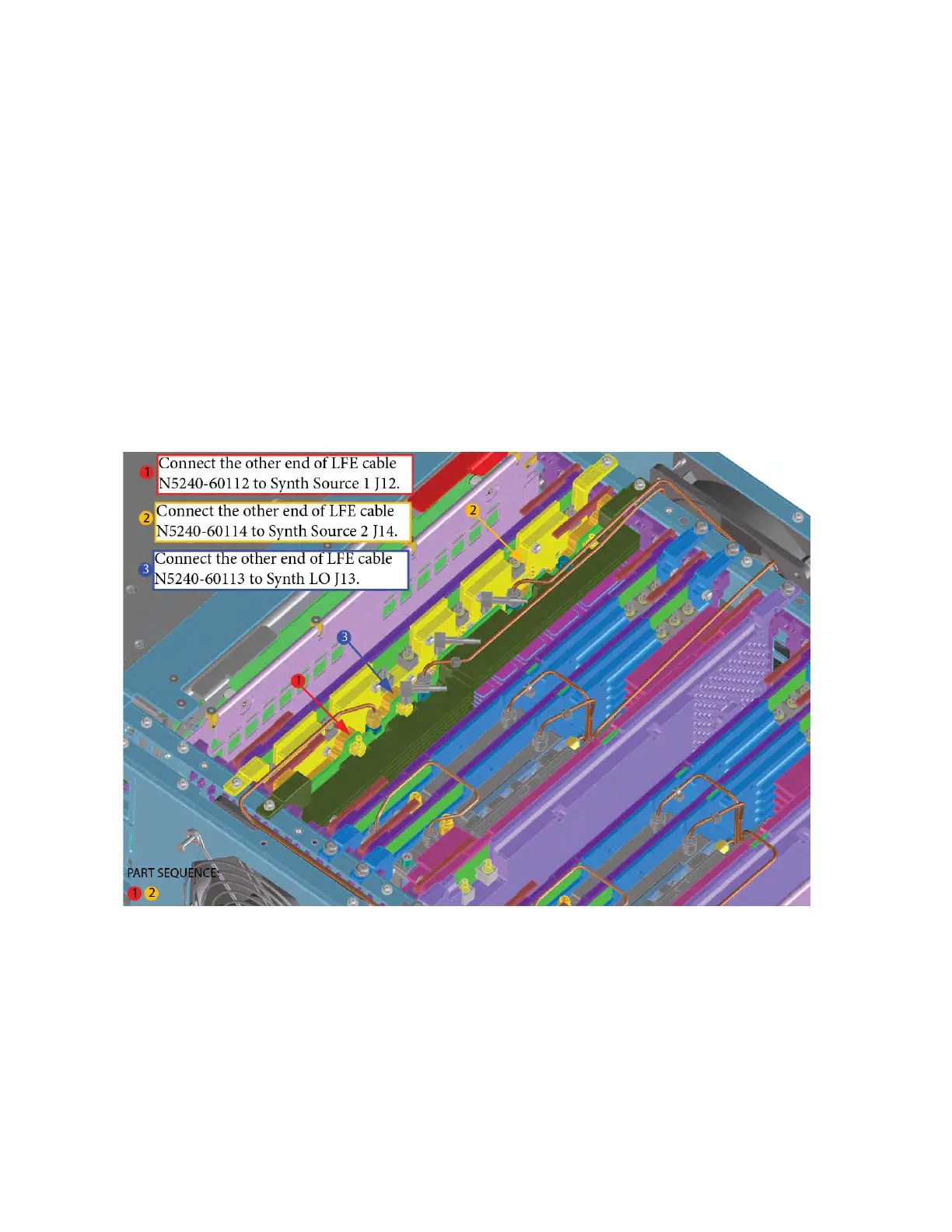

Figure 47 New test set cables. Connect/Verify the other end of the N5240-60112,
N5240-60113, and N5240-60114 cables
