Installation Note N5222-90131 43
Description of the Upgrade
Installation Procedure for the Upgrade
Step 28. Install the A8 26.5 GHz Source 2 Assembly
Follow the three instructions shown in Figure 23.

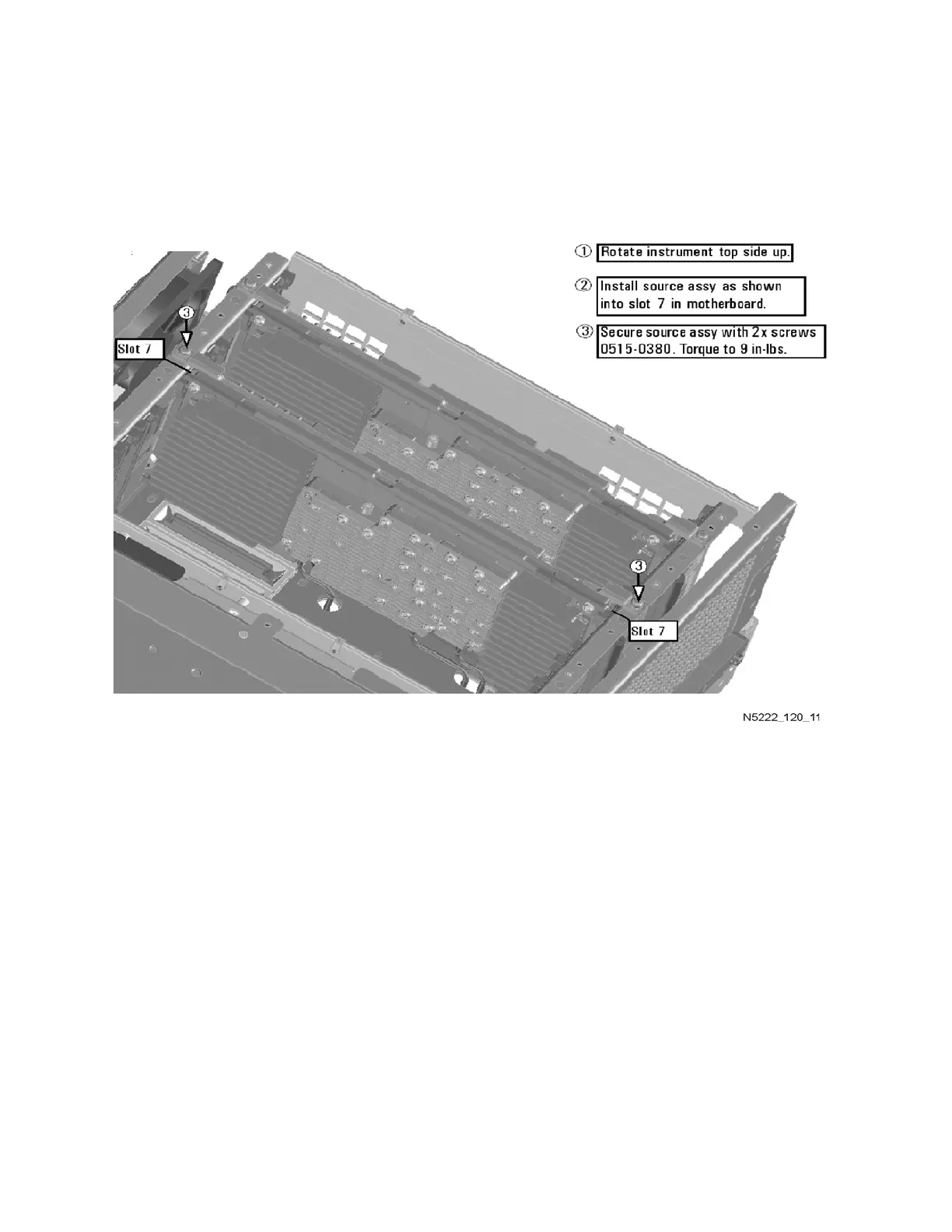

Figure 23 A8 Source 2 Assembly Installation (0515-0380 (x2))
To Next Page
