Installation Note N5222-90131 7
Description of the Upgrade
Getting Prepared
Verify the Model/Version of HMA26.5 Installed
This upgrade kit contains components for use with PNA models using the
legacy HMA26.5 part number 5087-7765. If your PNA has the newer HMA26.5
part number N5240-60101 installed you may discard these parts:
— A22 splitter 5087-7139
— W42 N5222-20009
— W43 N5222-20007
— W44 N5222-20008
Figure 1
(If you have th
e legacy 5086-7765 HMA26.5, please discard the N5245-20195
semi-rigid
cables. Refer to Figure 1 on page 7.)
The new N5240-60101 HMA26.5 has the splitter integrated into the
assembly. Refer to Figure 1 on page 7.

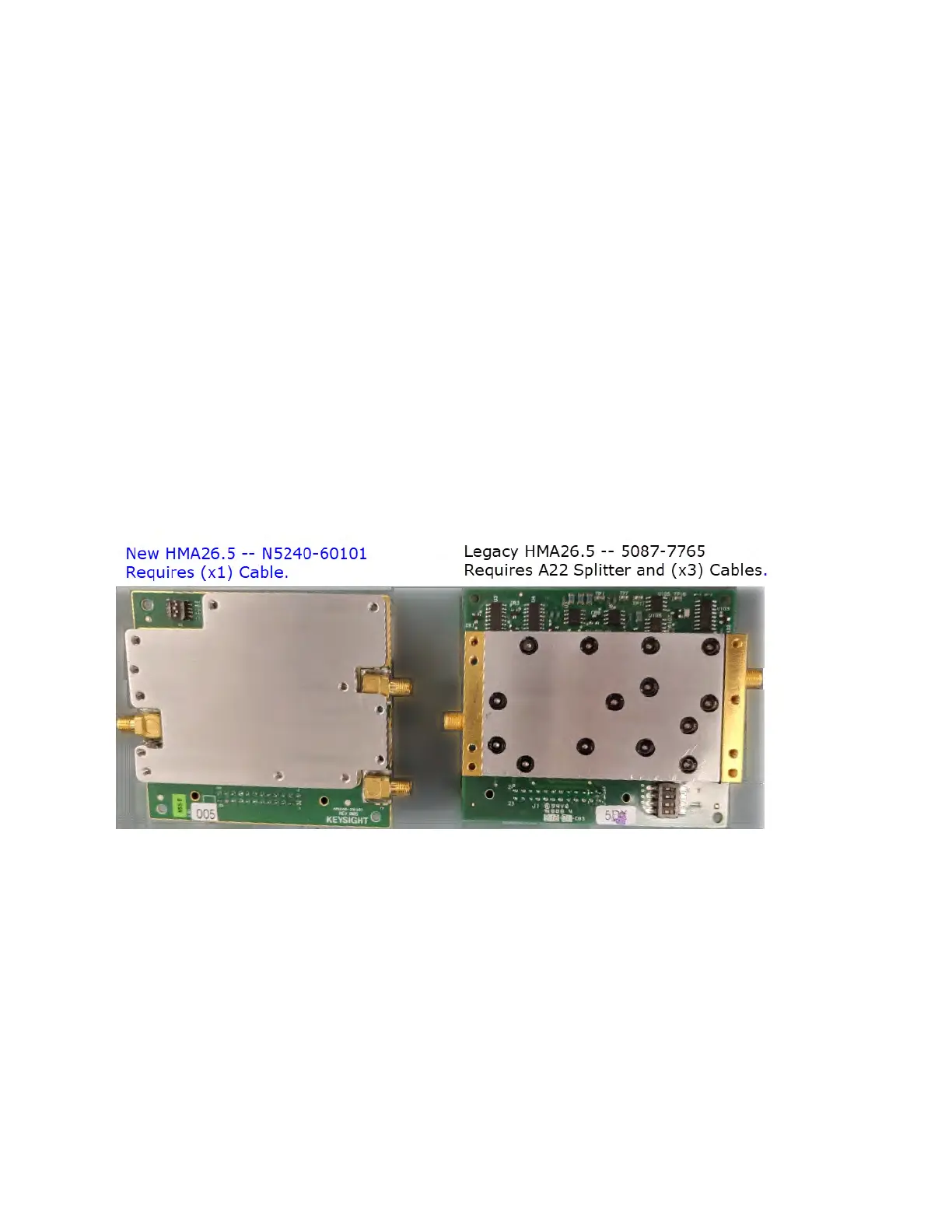

Comparison of Legacy HMA26.5 (5087-7765) and New HMA26.5
(N5240-60101)
