Installation Note N5222-90131 47
Description of the Upgrade
Installation Procedure for the Upgrade
— ③—W61 (N5242-60014) (reuse) A20 IF multiplexer board P403 to
A12 SPAM board J4
—
➃—W62 (N5242-60024) A20 IF multiplexer board P603 to A12
SPAM board J5
—
➄—W63 (N5242-60016) (reuse) A20 IF multiplexer board P803 to
A12 SPAM board J6
—
➅—W200 (N5240-600115) A11 SRC DD Synthesizer assembly J16
to SPAM J3

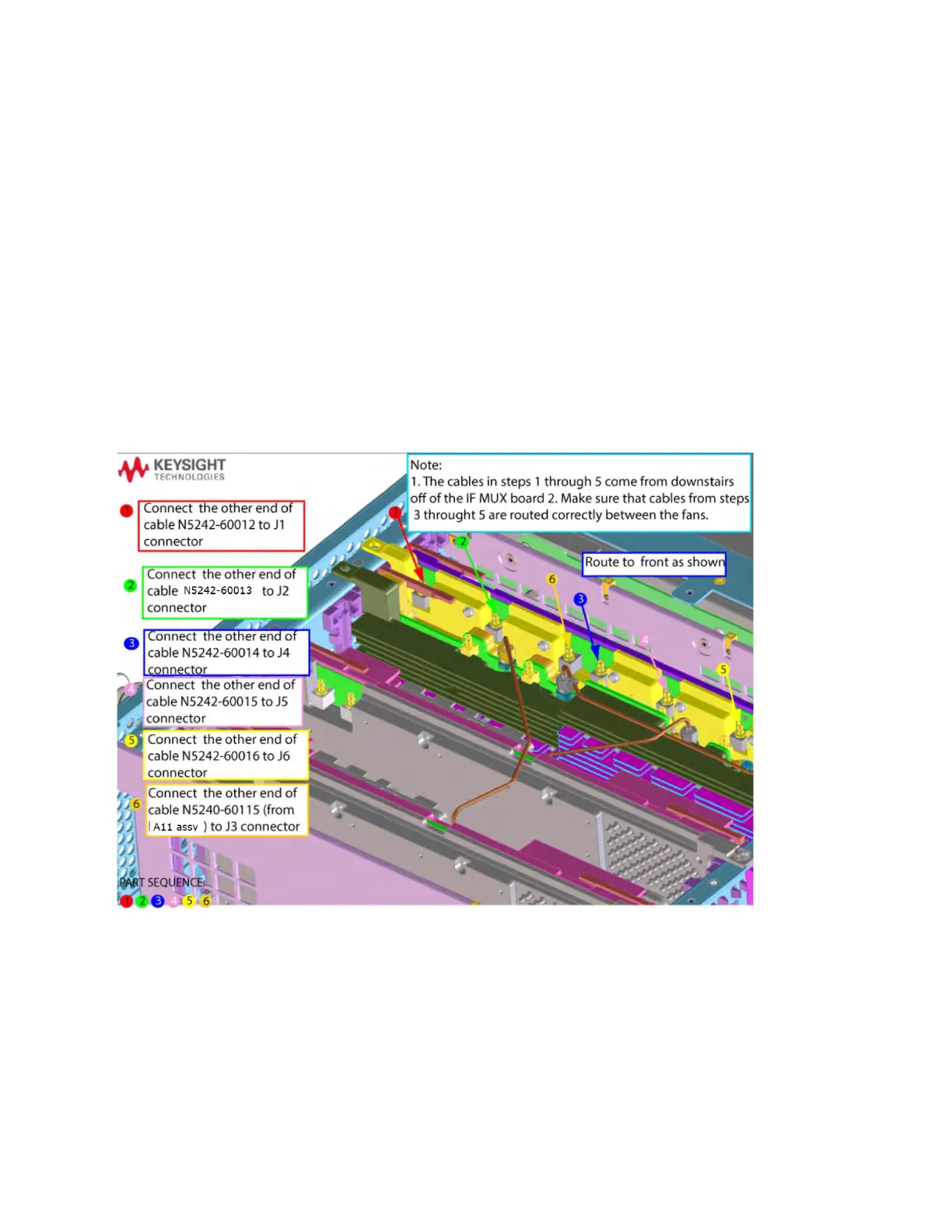

Figure 26 Connect Other End of Bottom Flexible IF Multiplexer and Top Flexible Gray
Cables to SPAM Board (N5242-60012, N5247-60023, N5242-60014,
5247-60024, N5242-60016, and N5240-60115) – 2-Port is Shown. But,
4-Port is Similar.
