Page 19Find us at www.keysight.com
Add pulse modulator to internal second source
(Option 022) PNA-X PNA PNA-L
This option enables the internal pulse modulator on Source
2
Out1. Control of the modulator can also be done via pin 8 of the
Pulse I/O D-sub connector on the rear panel of the analyzer
using an external pulse generator, or by using one of the internal
pulse generators (Option 025). The N1966A pulse I/O adapter is
recommended if using an external pulse generator. Option 224
or 400 is required for PNA-X, and one of Option 400, 401, 417, or
419 is required for PNA.
Add four internal pulse generators (Option 025)
PNA-X PNA PNA-L
This option enables four internal pulse generators. These pulse
generators can be used to control the internal pulse modulators
and internal receiver IF gates, and are also available on pins 10
through 13 of the Pulse I/O D-sub connector on the rear panel
of the analyzer to control external modulators and/or gates. The
N1966A pulse I/O adapter is recommended if using external pulse
modulators.
Fast CW Sweep (Option 118)
PNA-X PNA PNA-L
This option uses FIFO (first-in first-out) to allow external point-
trigger acquisition of 400,000 data points per second on five
measurement receivers. When enabled, there is no display update,
no background computation, or other interference from the vector
network analyzer application. All the data gathered is placed into a
500 million points FIFO buffer. While the data is going into FIFO it
can be read from the FIFO buffer.
Nonlinear vector network analysis
Please refer to 5989-8575EN Nonlinear Vector Network
Analyzer Brochure for more information.
Pulse, antenna, mm-wave
Solid black series name indicates the feature is available on
that series, while gray series name with strikethrough
indicates the feature is not available on that series. For
example;
PNA: Available on PNA Series
PNA: Not available on PNA Series
Pulsed-RF measurements (Option 008)
PNA-X PNA PNA-L
This option adds narrowband pulse detection mode and
extends the pulsed-RF measurement capability to narrower
pulse widths below the limit for the standard wideband
detection mode. The PNA-X and PNA are complete
pulsed-RF solutions with built in pulse generators and
modulators, so external test sets and pulse generators are
not required. With narrowband detection mode, Option 008
sets the coefficient of the analyzers digital-IF filters to null
out unwanted spectral components, enables the internal
receiver IF gates, controls internal pulse generators (Option
025), internal pulse modulators (Option 021 and/or 022),
and external pulse modulators, and performs optimization
for measurement sensitivity. Option 008 also includes
conventional pulsed-RF measurement software (Option
H08). Option 025 is required. Option 021 is recommended
for forward-only pulsed-RF measurements. Option 021
and 022 are recommended for bi-directional pulsed-RF
measurements. The N1966A pulse I/O adapter is recom-
mended if using external pulse generators and/or external
pulse modulators
Add IF inputs for antenna and millimeter-
wave (Option 020) PNA-X PNA PNA-L
This option enables external IF inputs on the rear panel
of the analyzer for applications such as antenna and
millimeter-wave test.
Add pulse modulator to internal first source
(Option 021) PNA-X PNA PNA-L
This option enables the internal pulse modulator on
Source1 Out1. Control of the modulator can also be done
via pin 8 of the Pulse I/O D-sub connector on the rear
panel of the analyzer using an external pulse generator, or
by using one of the internal pulse generators (Option 025).
The N1966A pulse I/O adapter is recommended if using an
external pulse generator.
PNA Family Application Options (continued)
1 2 3 4 5 6 7 8
9 01 11 21 31 41 51

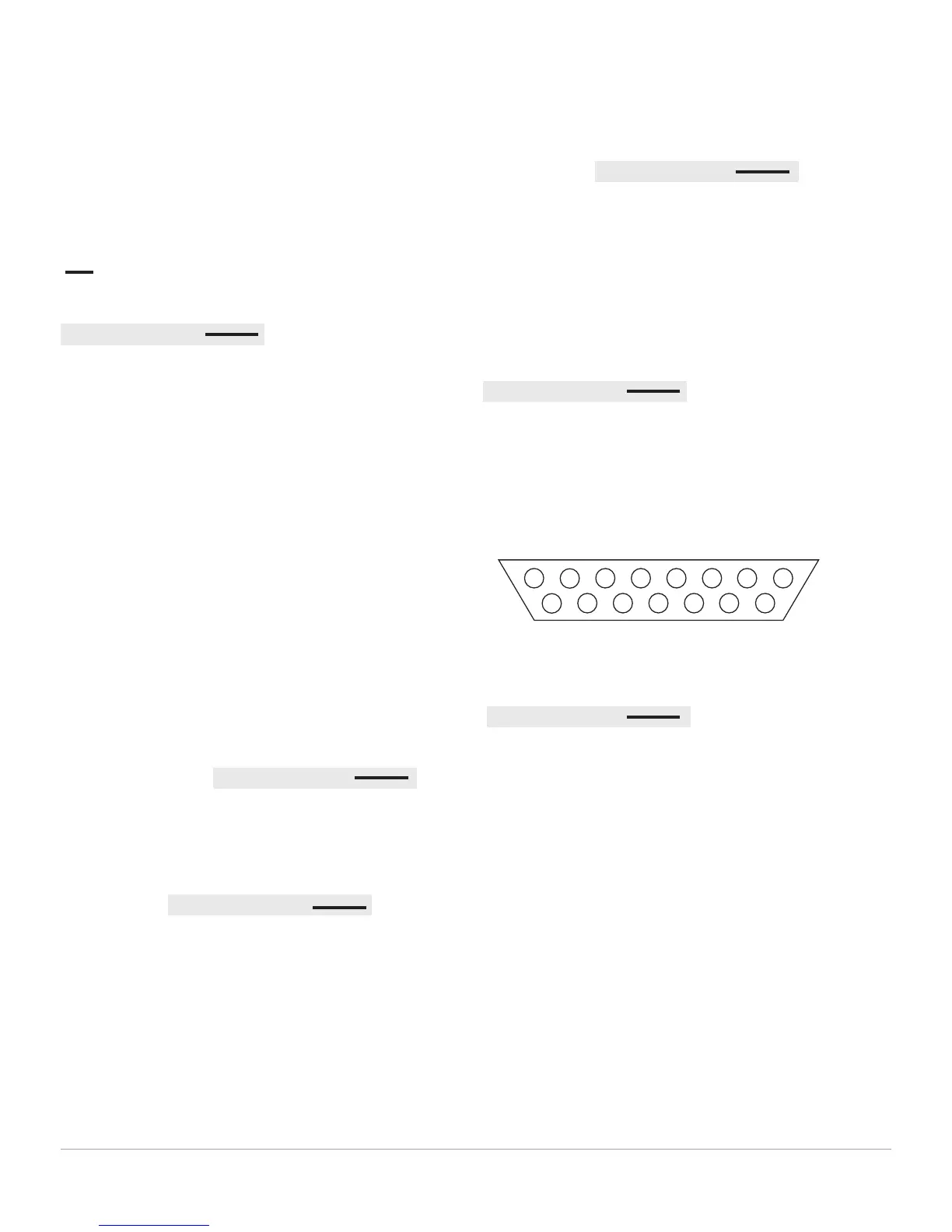

Pulse I/O D-sub connector (DB-15 female)
