Frequency Response (Flatness)

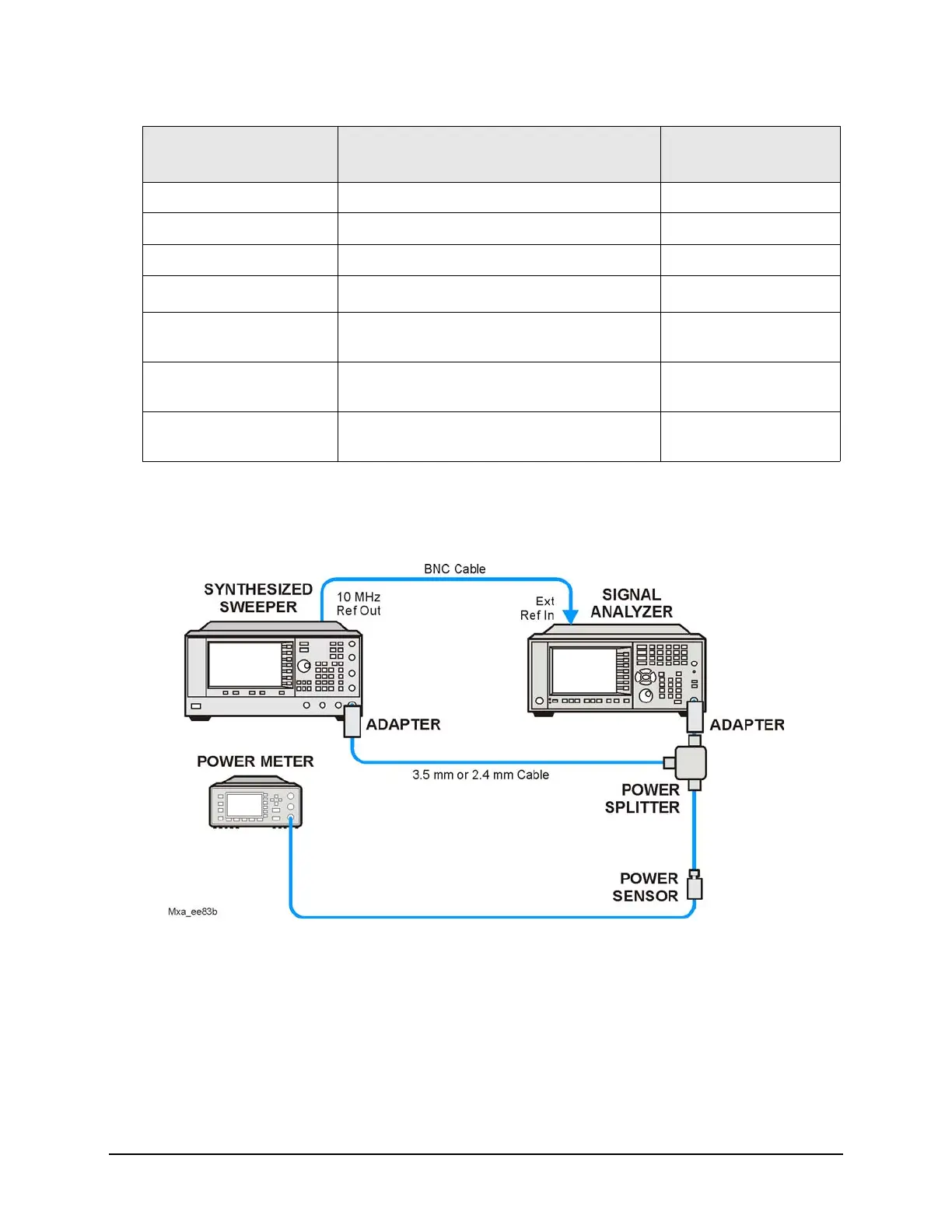

Figure 6-1 Frequency Response Test Setup
Cables, BNC 120 cm Frequency: 10 MHz 10503A
Power Meter Compatible with power sensor E4418B
Power Sensor Frequency Range: 50 MHz to 26.5 GHz 8485A
Power Sensor
b
Frequency Range: 50 MHz to 50 GHz 8487A
Power Splitter
a
Frequency Range: 50 MHz to 26.5 GHz
Tracking between ports: < 0.25 dB
11667B
Power Splitter
b
Frequency Range: 50 MHz to 50 GHz
Tracking between ports: < 0.4 dB
11667C
Synthesized Sweeper Frequency Range: 50 MHz to maximum
frequency of PXA
PSG
a. for Options 503, 508, 513, 526
b. for Options 543, 544, 550
Item
Critical Specifications
(for this test)
Recommended
Keysight Model
