Replacing Assemblies 5
S-Series Oscilloscopes Service Guide 79
Removing and Replacing the Front Panel, Bezel, Keyboards,
Display/Touch Screen Assembly, and AutoProbe Board
1 Disconnect the power cable and remove the handle, rear cover, and rear fan
assembly as described in the previous section.

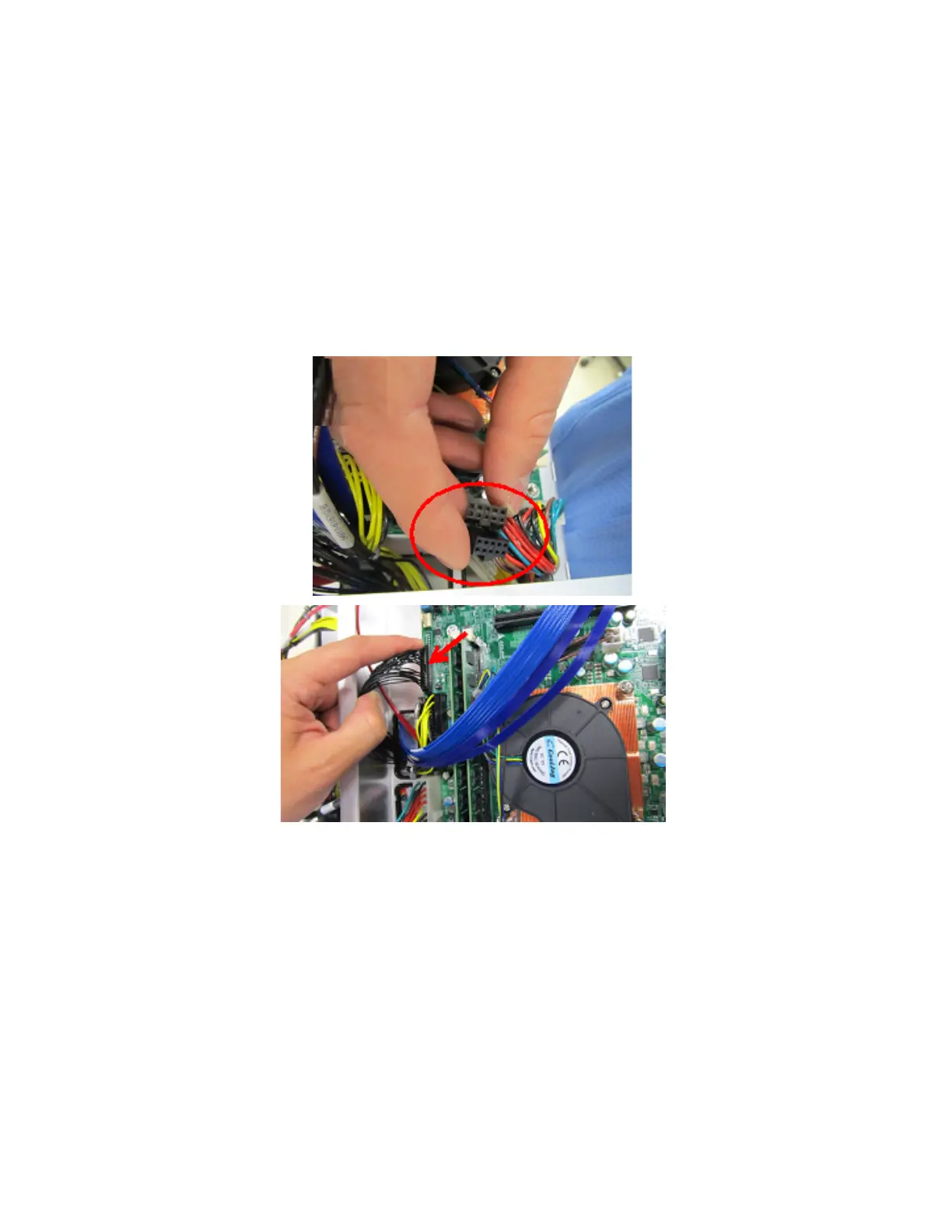

2 To begin removing the front panel, disconnect the two USB cables and the
LVDS cable from the motherboard.
3 Disconnect the front panel power cable from the acquisition assembly.
