Disassembly 4
Model N6705 Service Guide 89
Removing/Installing the Bias PCA
Step 1.
Remove the top chassis as previously described.
Step 2.

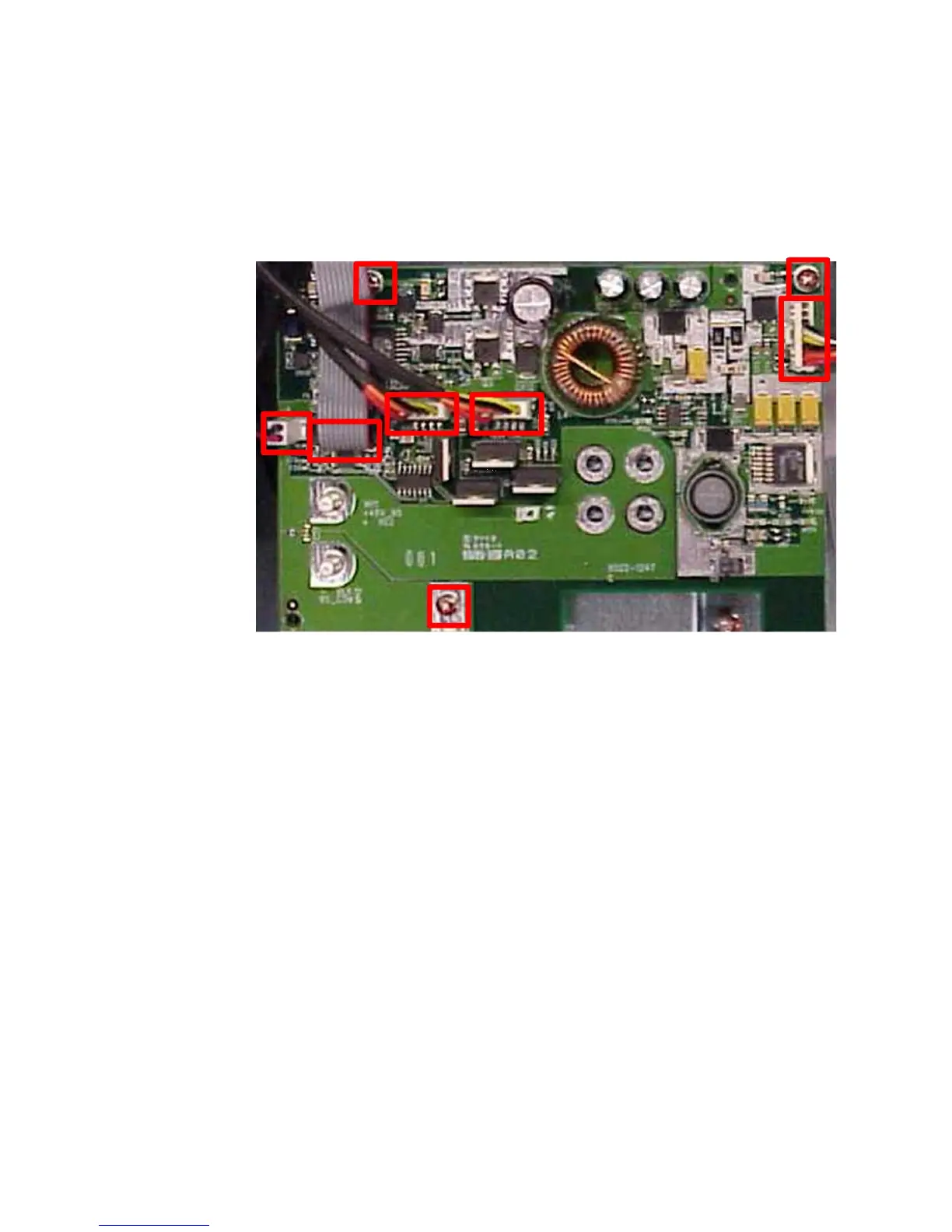

Remove three screws using a T10 driver and disconnect five
cables.
Figure 4-13
Step 3.
Remove the bias PCA.
Step 4.
To install the bias PCA, perform steps 1-3 in reverse order.
