4 Disassembly
90 Model N6705 Service Guide
Removing/Installing the PPMC (Interface) PCA
Step 1.
Remove the top chassis as previously described.
Step 2.

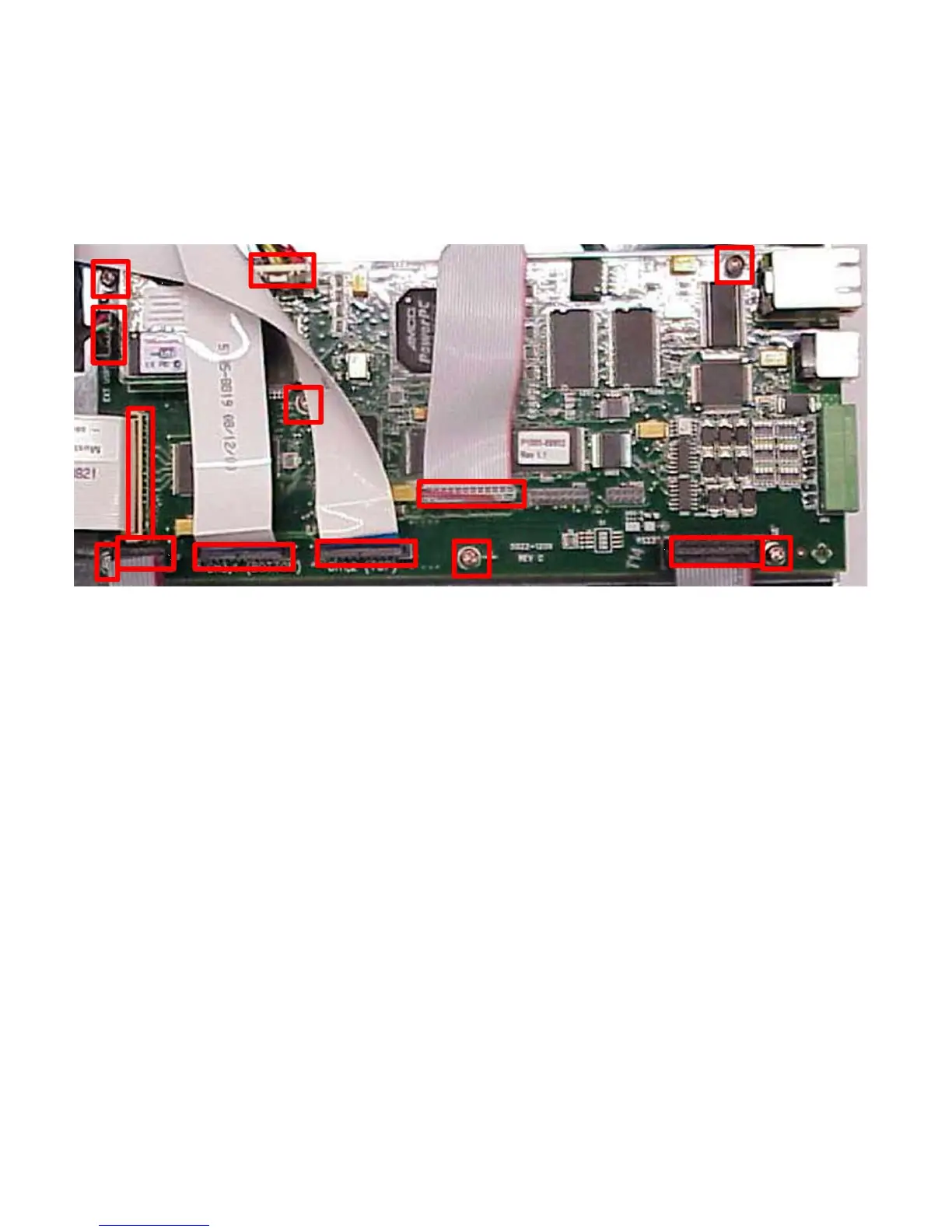

Disconnect the eight cables and remove six screws using a T10
driver.
Figure 4-14
Step 3.
Remove the PPMC PCA by sliding forward and lifting.
Step 4.
To install the PPMC PCA, perform steps 1-3 in reverse order.
