Disassembly 4
Model N6705 Service Guide 91
Removing/Installing the AC Module
Step 1.
Remove the top chassis as previously described.
Step 2.
Remove the screw using a T10 driver from the rear panel located
beneath the AC receptacle.

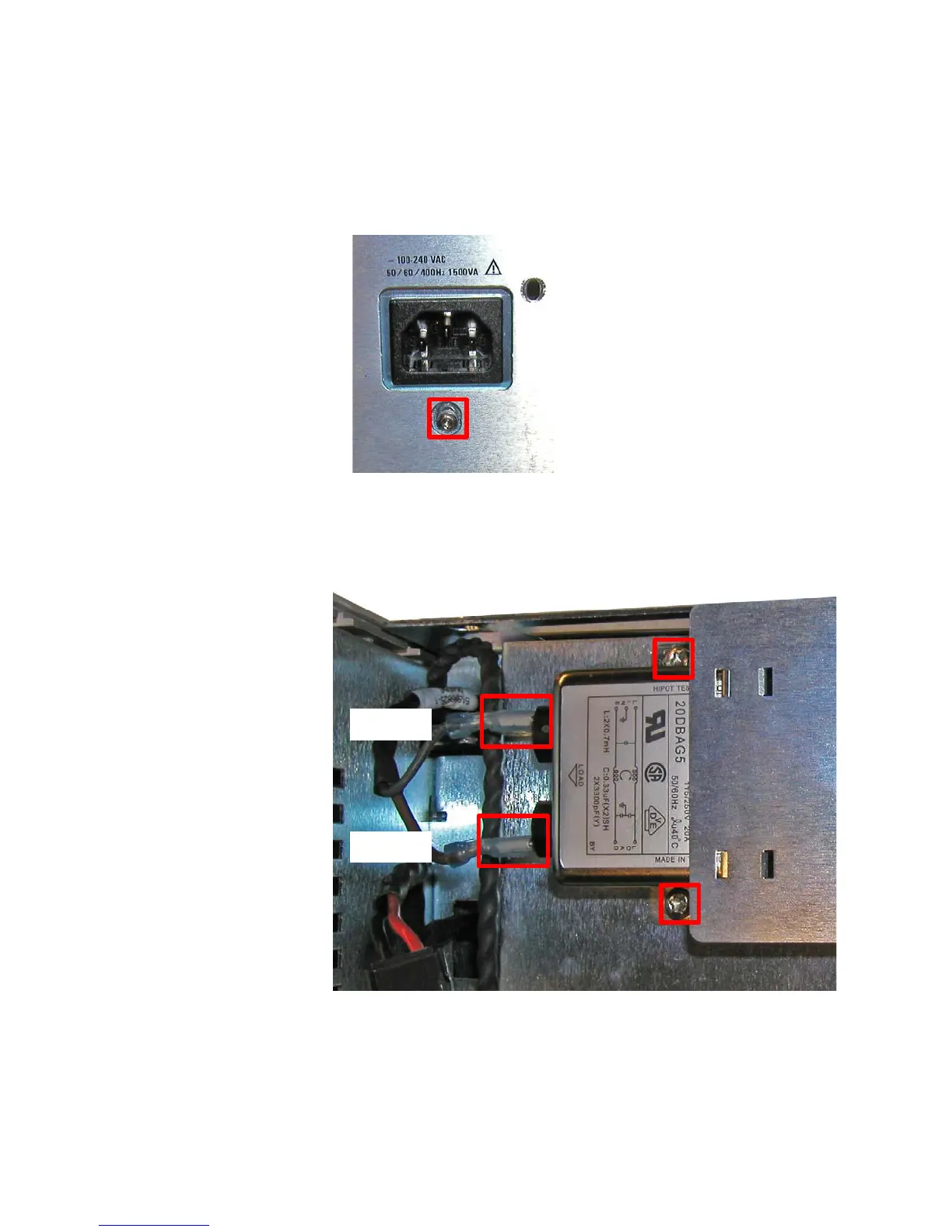

Figure 4-15
Step 3.
Disconnect the two connections and remove two screws using a
T20 driver from the AC Module.
grey
brown
Figure 4-16
Step 4.
Remove the AC Module.
Step 5.
To install the AC Module, perform steps 1-4 in reverse order.
