Keysight N6705 - Page 92

4 Disassembly
92 Model N6705 Service Guide
Removing/Installing the Bulk Supply

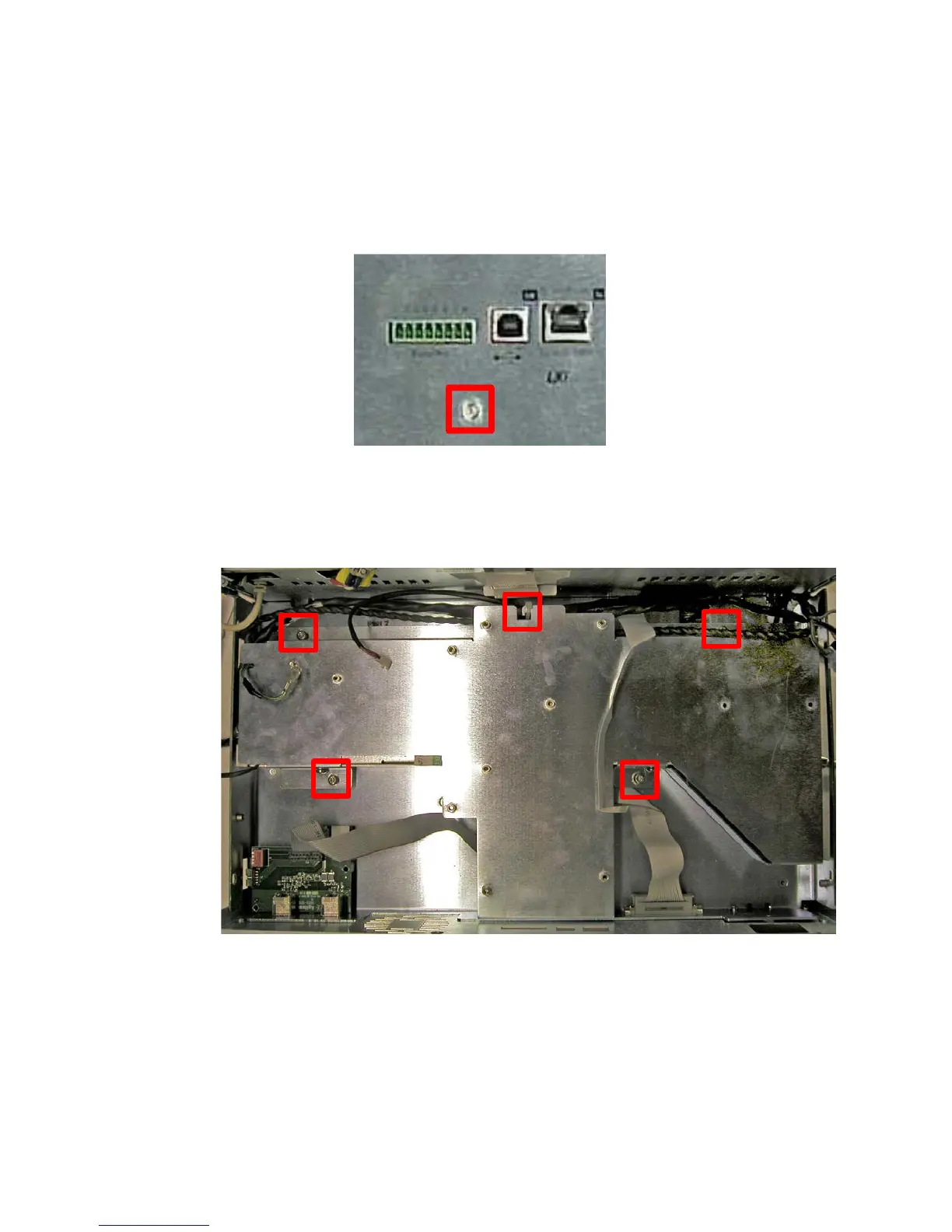

Step 1.
Remove the top chassis, PPMC PCA, Bias PCA, and AC Module
as previously described.
Step 2.
Remove one screw using a T10 driver from the rear panel.
Figure 4-17
Step 3.
Unhook the cable tie and remove four screws using a T20 driver.
Figure 4-18
