Disassembly 4
Model N6705 Service Guide 93

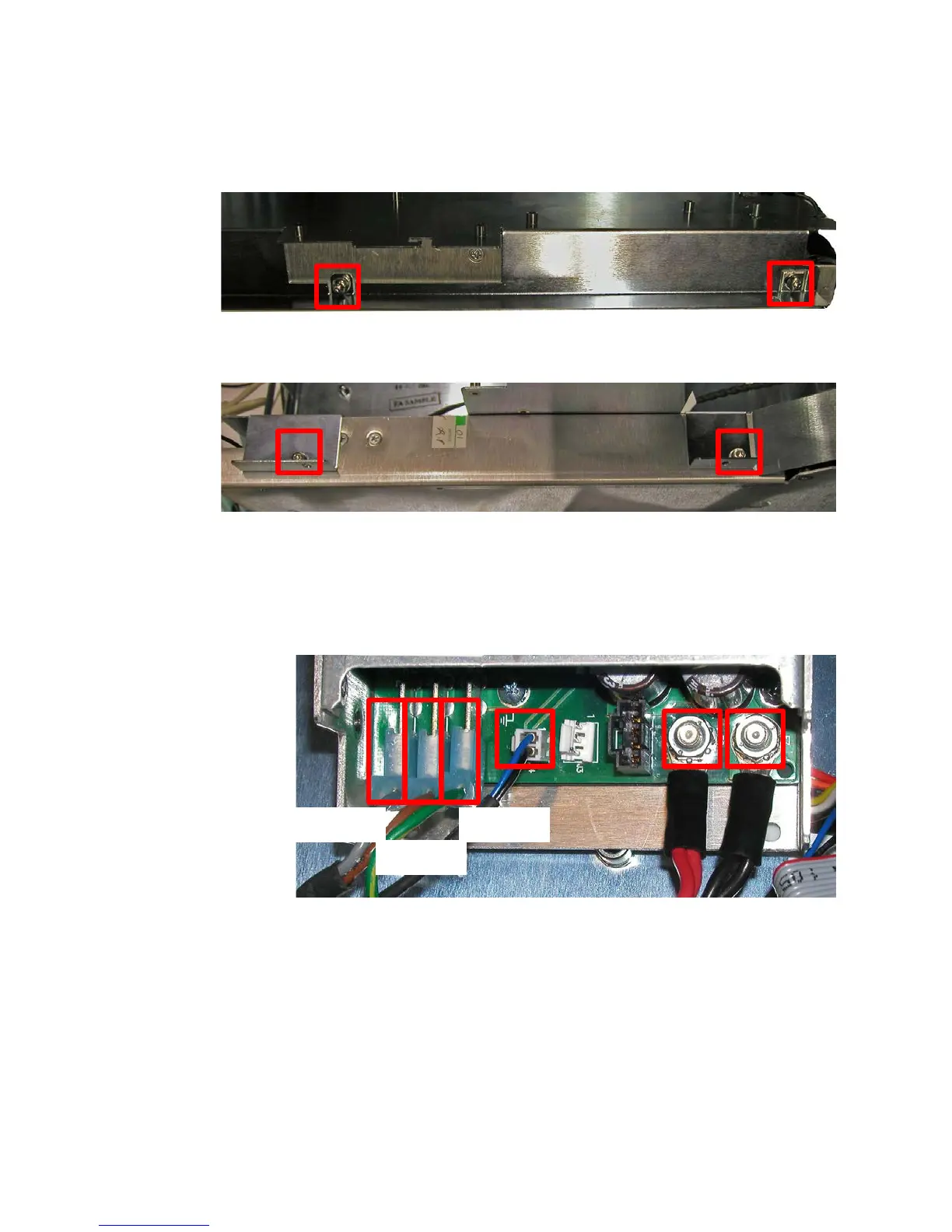

Step 4.
Remove four screws using a T20 driver from the sides of the bulk
shroud and remove the bulk shroud.
Figure 4-19
Figure 4-20
Step 5.
Disconnect four connections and remove two 11/32 in. nuts from
the bulk supply.
grey
brown
green
Figure 4-21
Step 6.
Remove the bulk supply.
Step 7.
To install the bulk supply, perform steps 1-6 in reverse order.
