Disassembly 4
Model N6705 Service Guide 99
Removing/Installing the Sub Panel
Step 1.
Remove the top chassis as previously described.
Step 2.
Remove the bottom cover as previously described.
Step 3.

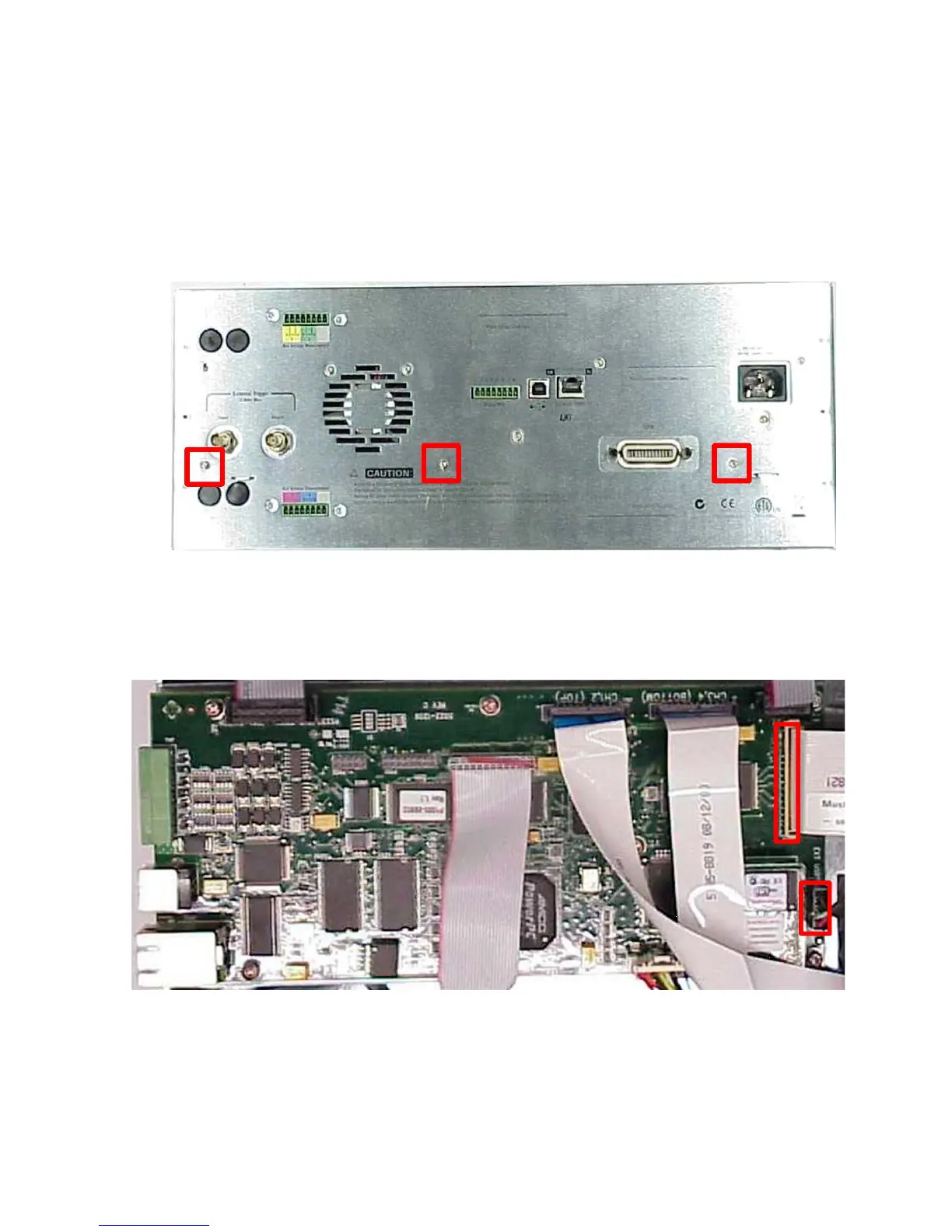

Remove three screws using a T10 driver from the rear panel and
remove the rear panel.
Figure 4-30
Step 4.
Disconnect the USB Cable and front panel to PPMC FFC.
Figure 4-31
