Keysight N6705 - Page 100

4 Disassembly
100 Model N6705 Service Guide

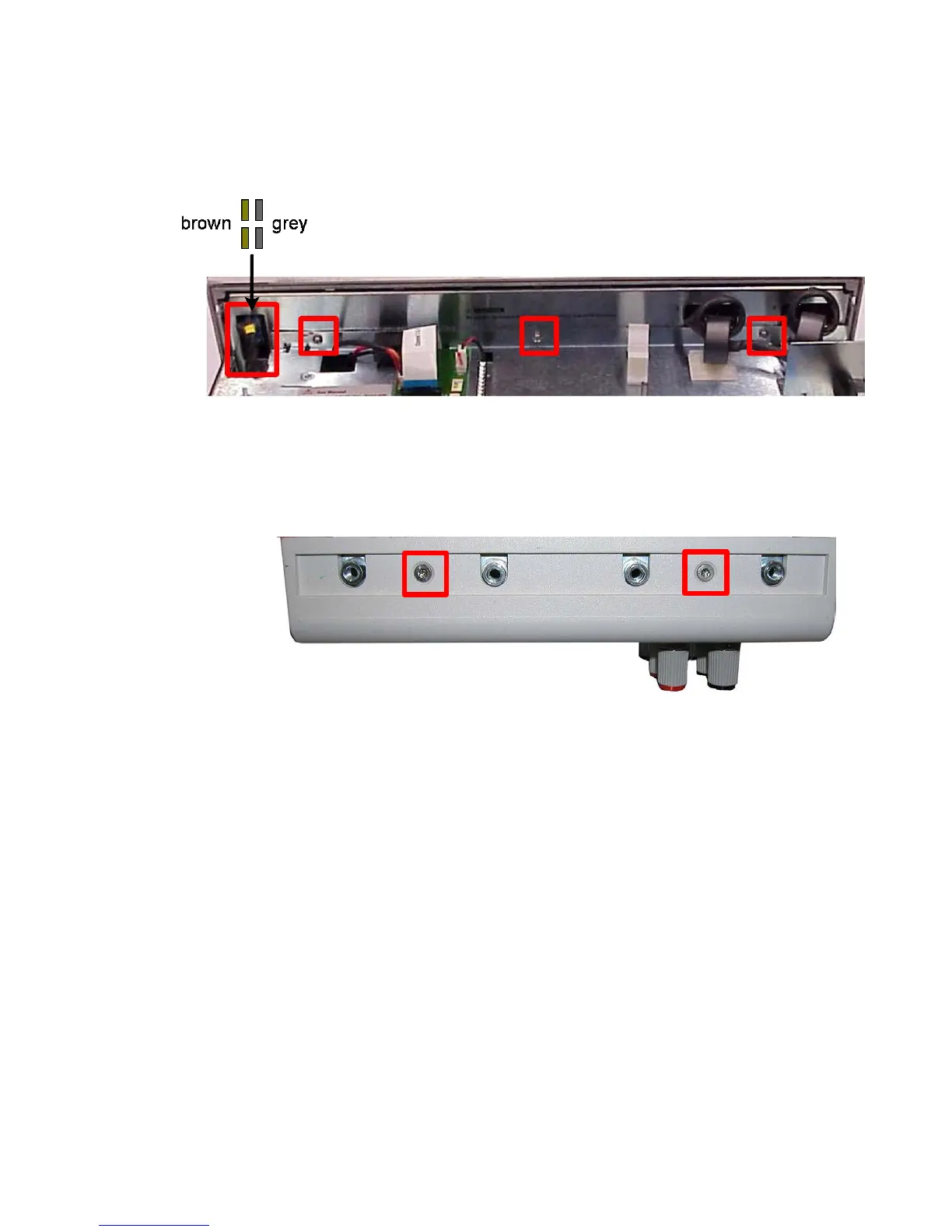

Step 5.
Disconnect all cables to the AC switch on the rear bottom
chassis, remove three screws using a T10 driver, and separate mainframe
from front panel.
Figure 4-32
Step 6.
Remove two screws using a T10 from each side of the front
panel.
Figure 4-33
Step 7.
Remove the sub panel.
Step 8.
To install the sub panel, perform steps 1-7 in reverse order.
