72 Keysight P937xA PXIe Service Guide
Removal and Replacement Procedures
Module Replacement Procedure
5-
Replacement Procedure
1. Reverse the order of the removal procedure.
2. Remember to place the light pipe back into the module.
3. Perform the post-repair steps, verifications, and performance tests that
pertain to this removal procedure. Refer to “Post-Repair Procedures” on
page 73.

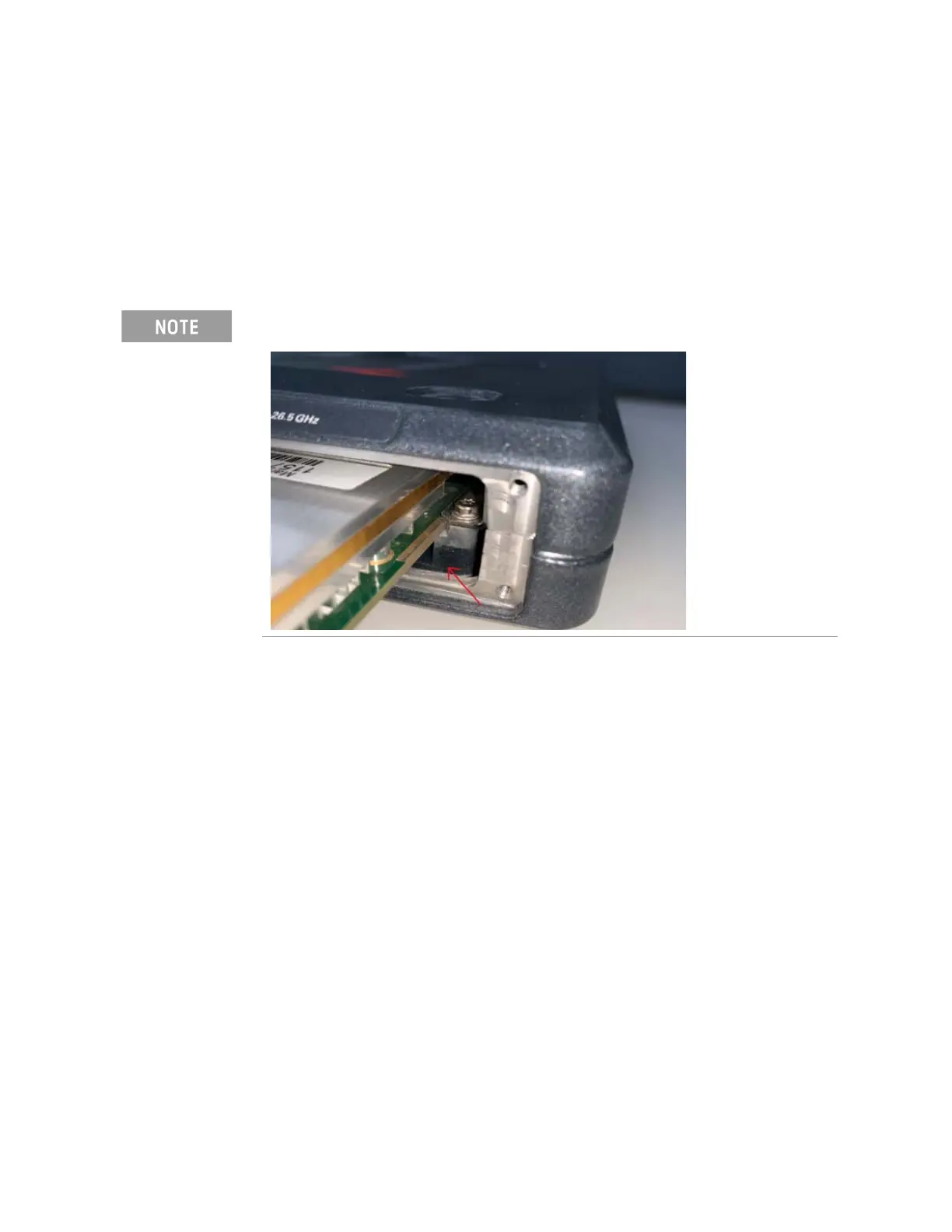

When slide in the module, make sure the PCB board sitting in between the
groove on the both side . Refer figure below.
