3Setup Options
68 Keysight U1731C/U1732C/U1733C User’s Guide
Setup Menu Summary
The Setup menu items are summarized in the table below. Click the respective
“Learn more” pages for more information on each menu item.
Table 3-2 Setup menu item descriptions

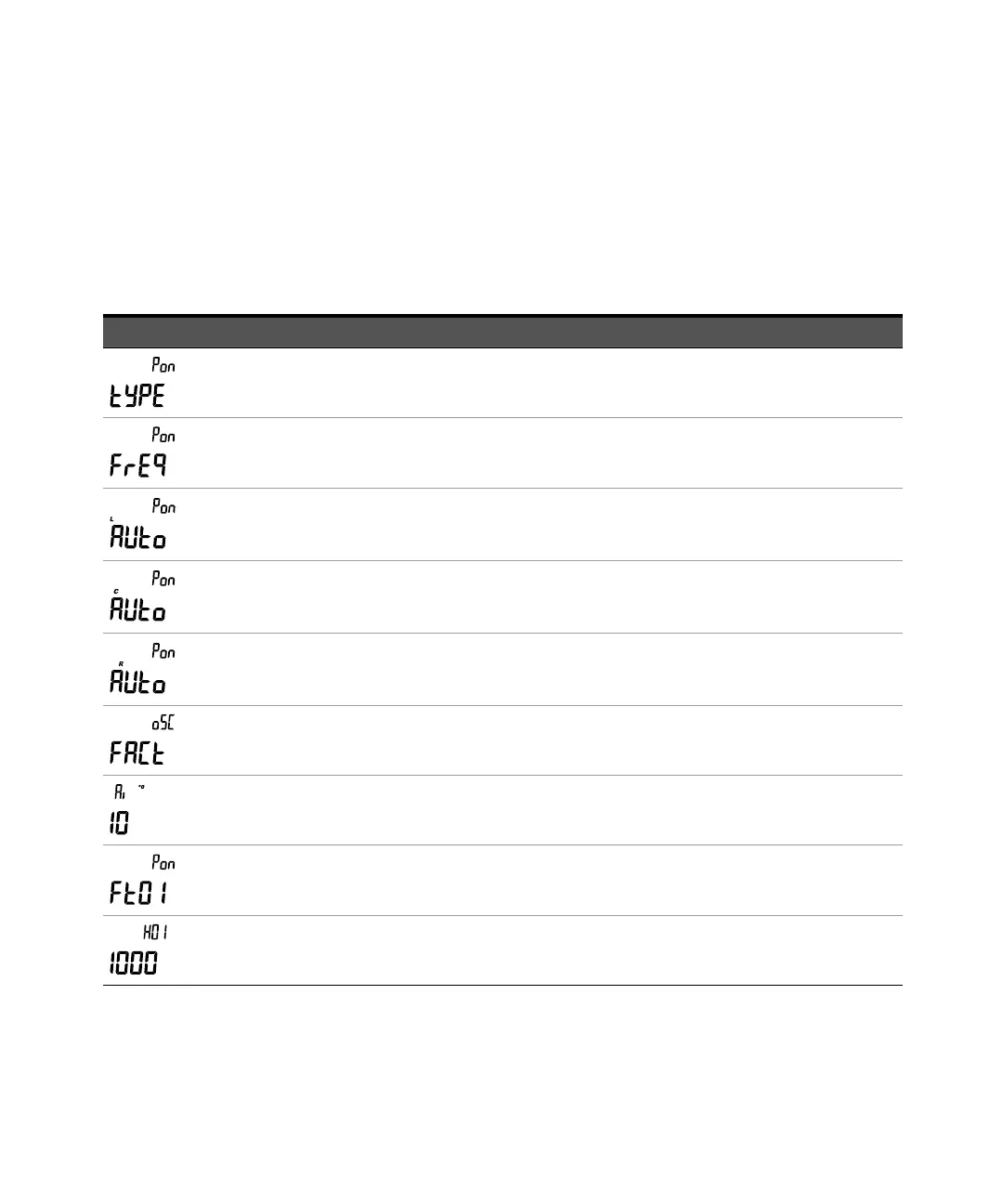

Legend Available settings Description Learn more on:
Ai, Z, L, C, R, ESR, or DCR
Set the measurement type that the LCR meter powers up in.
Default is the auto identification (Ai) mode.
page 70
100 Hz, 120 Hz, 1 kHz,
10 kHz, or 100 kHz
Set the test frequency that the LCR meter powers up in. Default
is 1 kHz.
page 72
D, Q, or θ and P or S
Set the inductance (L) secondary parameter and measurement
mode that the LCR meter powers up in. Default is quality factor
(Q) and series (S).
page 73
D, Q, or θ and P or S
Set the capacitance (C) secondary parameter and measurement
mode that the LCR meter powers up in. Default is dissipation
factor (D) and series (S).
page 74
D, Q, or θ and P or S
Set the resistance (R) secondary parameter and measurement
mode that the LCR meter powers up in. Default is phase angle
(θ) and series (S).
page 75
FACt or USEr
Set the open/short CAL mode that the LCR meter powers up in.
Default is factory (FACt).
page 76
05° to 45
°
Set the phase angle condition for the auto identification (Ai)
mode. Default is 10
°.
page 77
Ft01 to Ft16 or Ur01 to Ur16
Set the limit category (factory or user) and set (01 to 16) that the
LCR meter powers up in. Default is Ft01.
page 79
H01 to H16 or L01 to L16
0 to 19999
Set the
high and low limits for each variable user set. See
Table 3-4
on page 80 for the user default values.
page 80
