Introduction 1
Keysight U1731C/U1732C/U1733C User’s Guide 25
Connecting the IR-USB cable
You can use the IR communication link (IR communication port, located at the
rear panel) and the Keysight GUI Data Logger software to control your LCR meter
remotely. Hence, you can only perform data logging operations in the Keysight
GUI Data Logger application with the LCR meter connected via the USB- IR cable
to the PC.
Ensure that the Keysight logo on the U5481A IR-USB cable (purchased
separately) connected to the LCR meter is facing up. Firmly push the IR head into
the LCR meter’s IR communication port until it snaps into place (see Figure 1-3).
Refer to the Keysight GUI Data Logger Software Quick Start Guide and Help for
more information on the IR communication link and the Keysight GUI Data Logger
software.

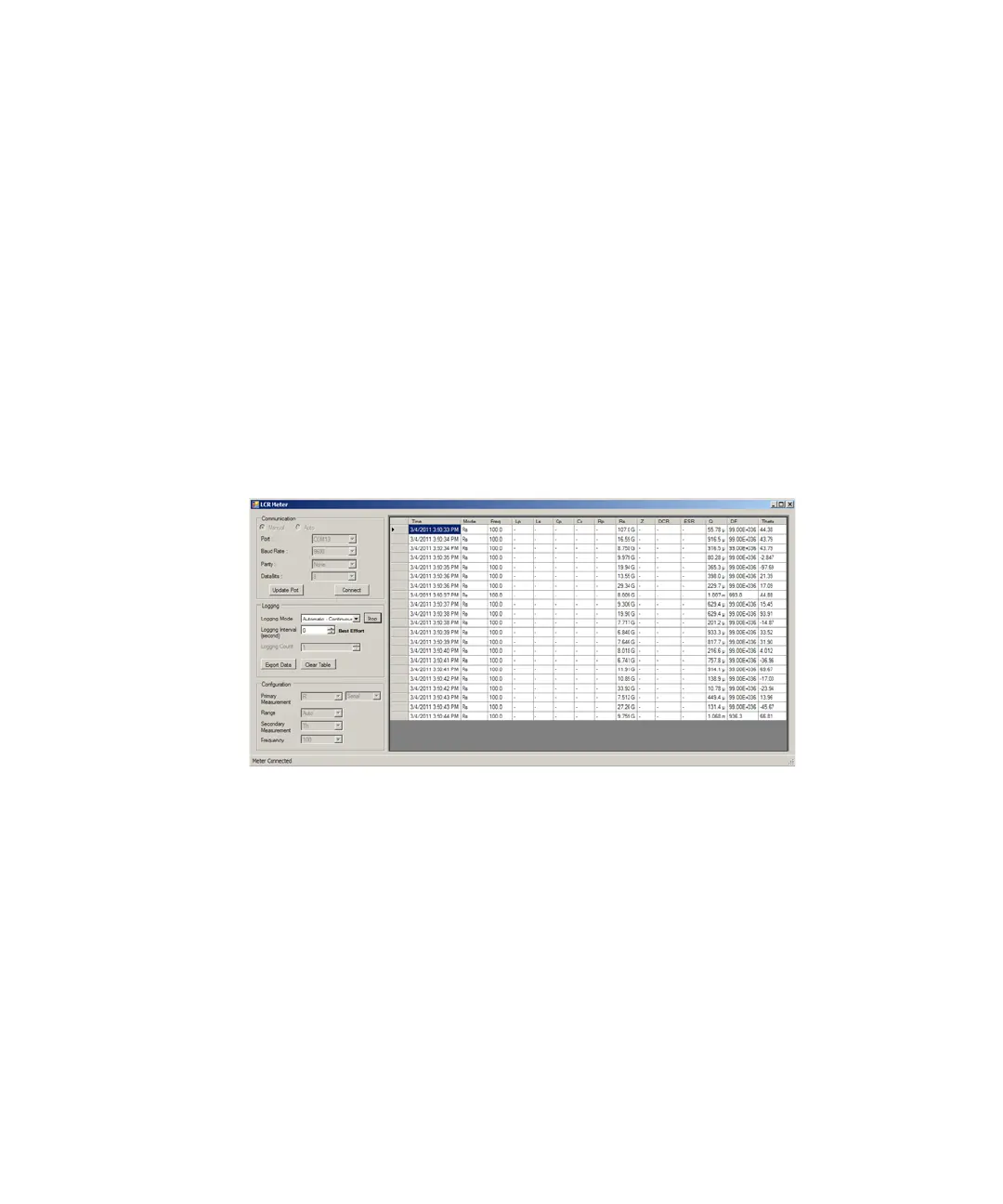

Figure 1-4 Keysight GUI Data Logger Software
The Keysight GUI Data Logger software and its supporting documents (Quick
Start Guide and Help) are available for free download at
http://www.keysight.com/find/hhTechLib.
You may purchase a U5481A IR-USB cable from a Keysight Sales Office nearest to
you.
