Keysight U2020 X Series User Manual

General Operating Information 2
Keysight U2020 X-Series User’s Guide 25

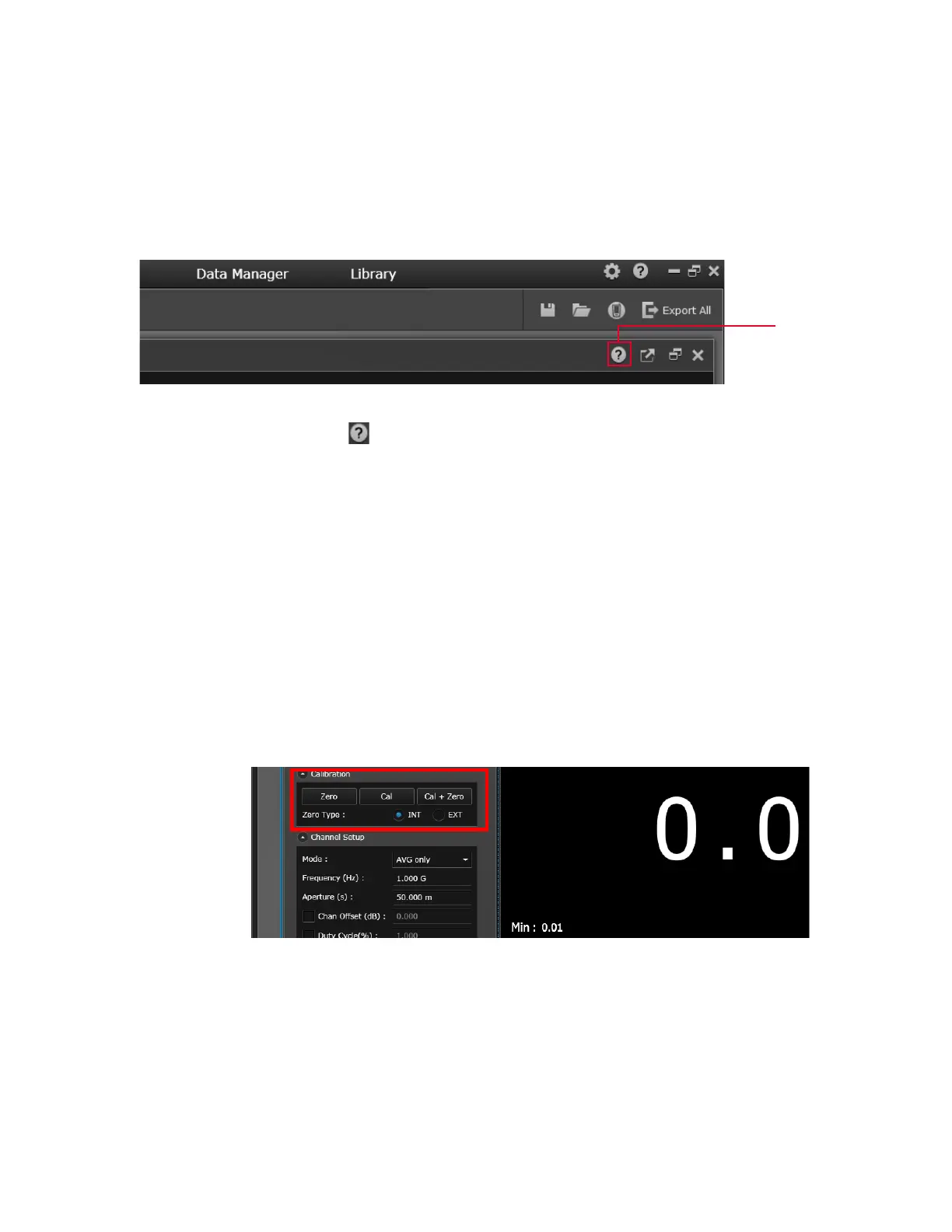

Figure 2-2 Accessing the BenchVue Power Meter help documentation
d Click ( ) to access the BenchVue Power Meter help documentation.
Quick start example to perform an average power measurement
The following example guides you on how to quickly measure average power via BenchVue.
It is assumed that the U2020 X-Series is already connected to a signal generator.
1 Set up the signal generator as follows:
– Amplitude: 0 dBm
–Frequency: 1 GHz
– Modulation: Disabled
2 Turn on the RF output of the signal generator. Launch the BenchVue Power Meter
application (refer to page 24). By default the power meter mode is already set to
Average only.
3 Perform calibration and zeroing for an accurate measurement result.
d
