4 Perform calibration and zeroing for an accurate measurement result.

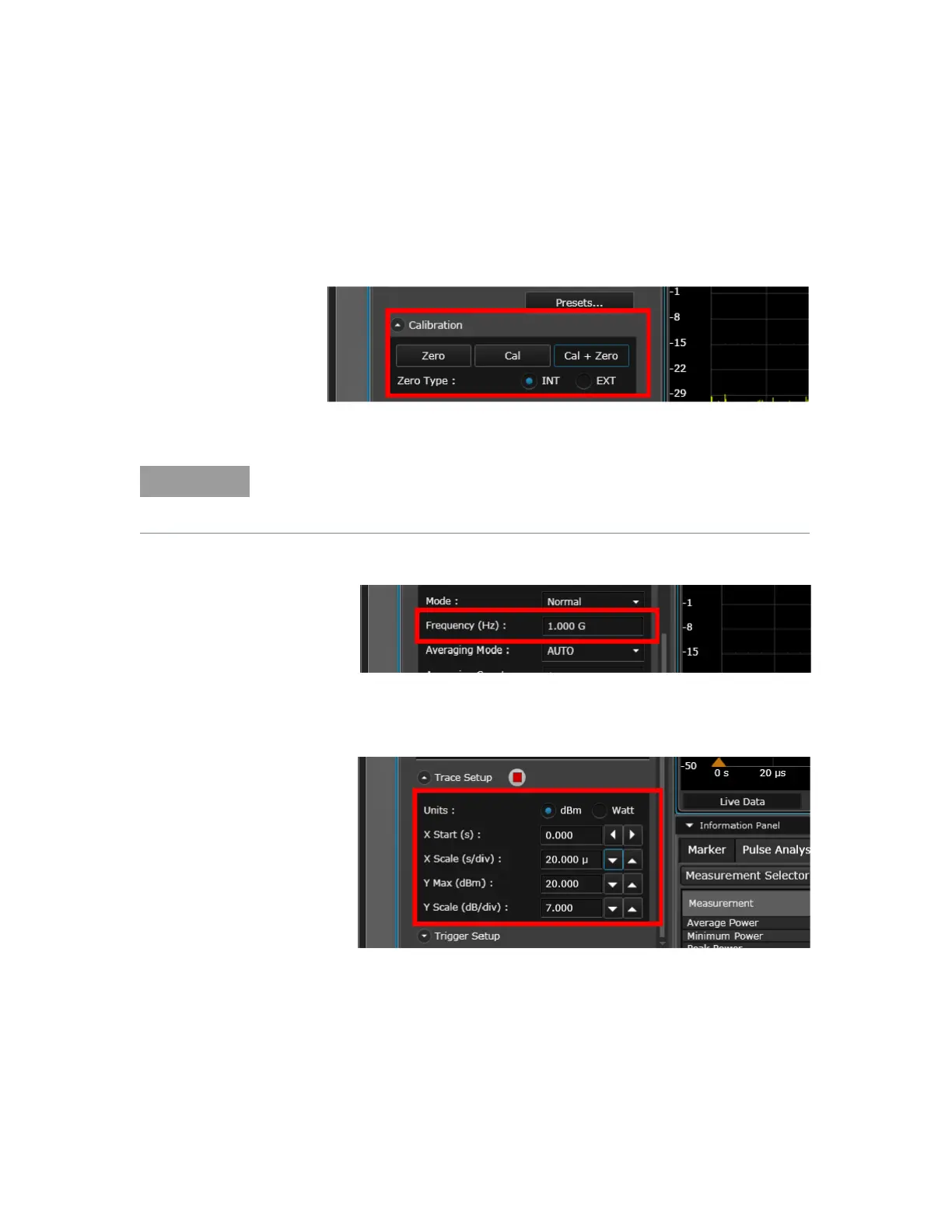

Figure 2-11 Performing calibration and zeroing
5 Set the frequency of the U2020 X-Series to 1 GHz.
Figure 2-12 Setting the frequency
6 You can set the trace scales to configure the pulse on the trace display.
Figure 2-13 Setting the trace scales
NOTE
– For power measurements below –50 dBm, it is recommended to perform external
zeroing and turn off the RF output for better accuracy and repeatability.
– Ensure that modulation is enabled.
