Keysight U2020 X Series - Figure 2-15 Setting the Gates through Instrument Setup Tab

General Operating Information 2
Keysight U2020 X-Series User’s Guide 33
For more precise control of your gate parameters, you can set up the gates via the
Instrument Setup tab and enter a starting point and length (in seconds) for each of the four
gate controls.

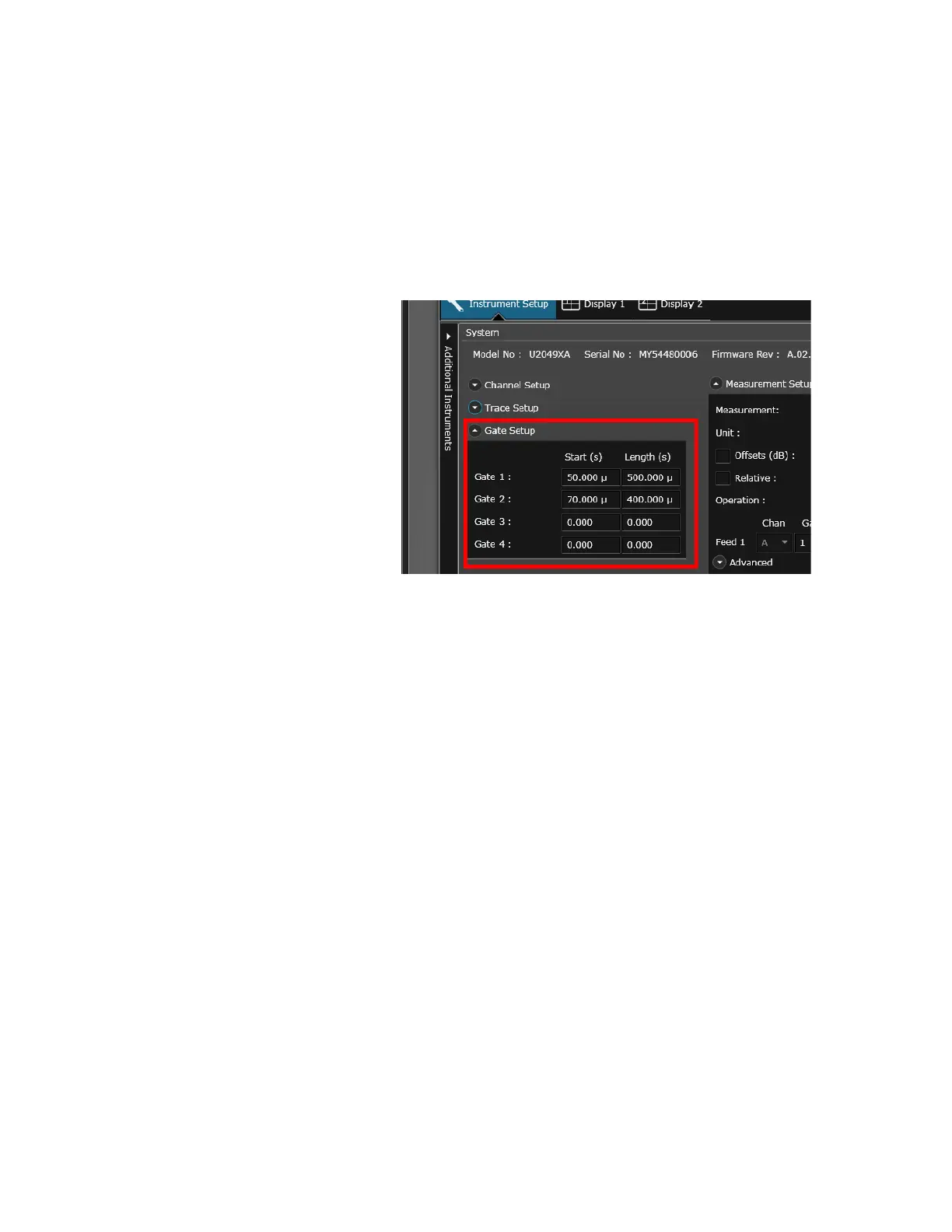

Figure 2-15 Setting the gates through Instrument Setup tab
8 View the power measurement results of the pulse at the Pulse Analysis tab under
Information Panel.
