23
V. SET UP & USE OF YOUR WHEELCHAIR
J. Swing Away Hangers with 4-Way Latch
1. Installation

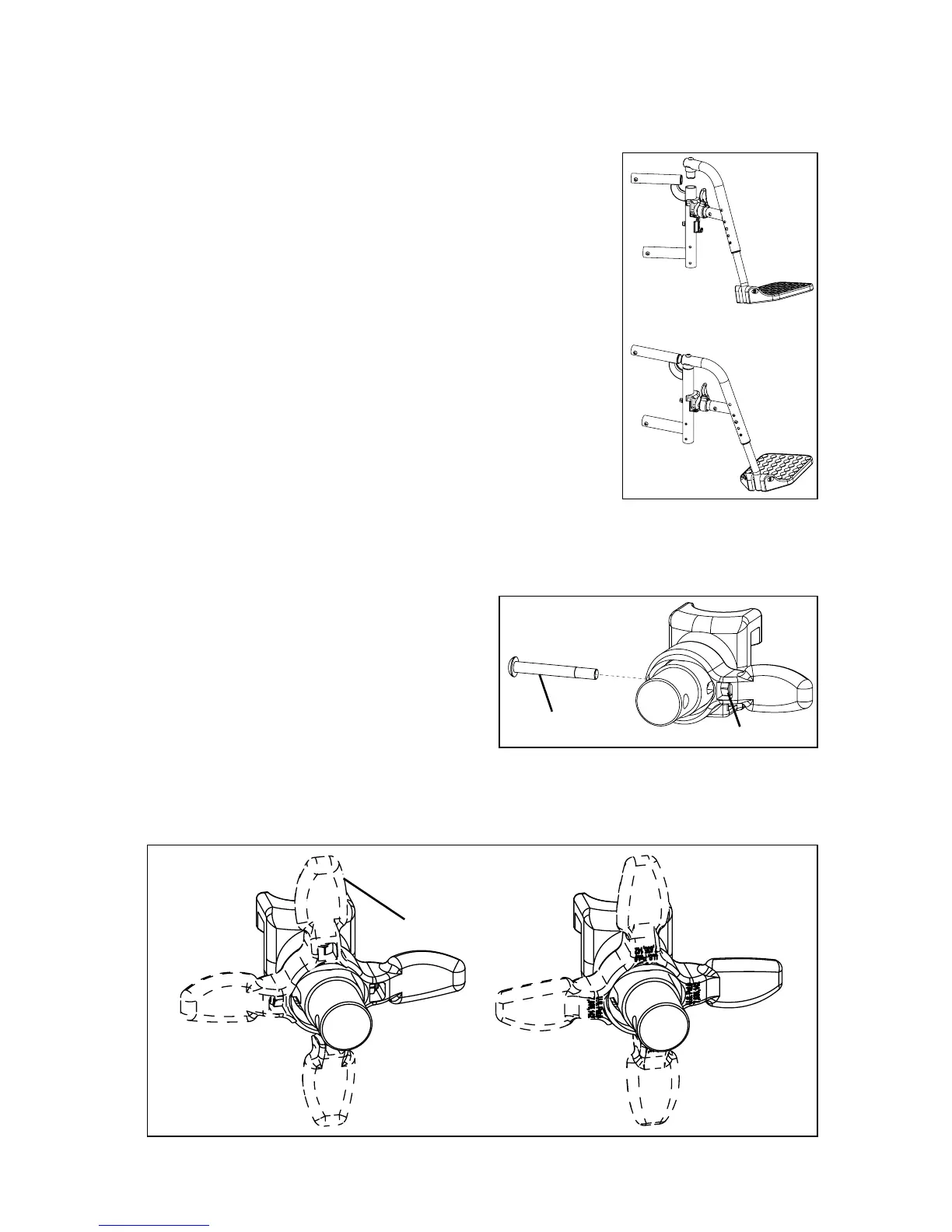

a. Place swing away pivot saddle into the receiver on front
frame tube (Fig. 11:A).
b. Rotate the footrest so that it aligns with the frame and locks
into place in the latch block (Fig. 11:B).
2. Swinging the Footrest Away
a. Push or pull on release latch.
b. Rotate footrest outward or inward as desired.
3. Removal
a. To remove footrest, push or pull release latch.
b. Lift the footrest straight upward to remove. You may also
swing the footrest inward or outward before lifting it off.
4. Rotating (Fig. 12)
The 4-way latch has eight possible configurations, four with the
curve of the lever facing outward and four with the curve of the lever
facing inward. See Fig. 13 for possible configurations.
a. To rotate the 4-way latch, remove the screw using a 3mm Allen wrench while the hanger is
still on the chair (spring must be engaged to remove and reinsert screw and keeping the
hanger on the chair keeps the spring engaged). Ensure nut does not fall out.
b. Rotate the 4-way latch to desired orienta-
tion and reinsert screw with 3mm Allen
wrench. Ensure that nut stays in position
while tightening the screw. Do not over-
tighten screw or mechanism will bind.
NOTE: To reverse the 4-way latch, the same
screw is removed, but the hanger has to be
removed from the latch block. Once removed,
slide the latch off, flip over and reinstall. Ensure spring is engaged, by pushing and holding the
latch button in, and nut stays in position while reinstalling the screw.
NOTE: In-line position is not achievable with the Pro ELR Footrest option.
