IV. WHEELCHAIR USE & CONFIGURATION
G. Your Catalyst 5 & Its Parts
1. Inspect and maintain your chair using information found in the Maintenance and Care
section.
2. If you detect a problem, contact your authorized supplier immediately.

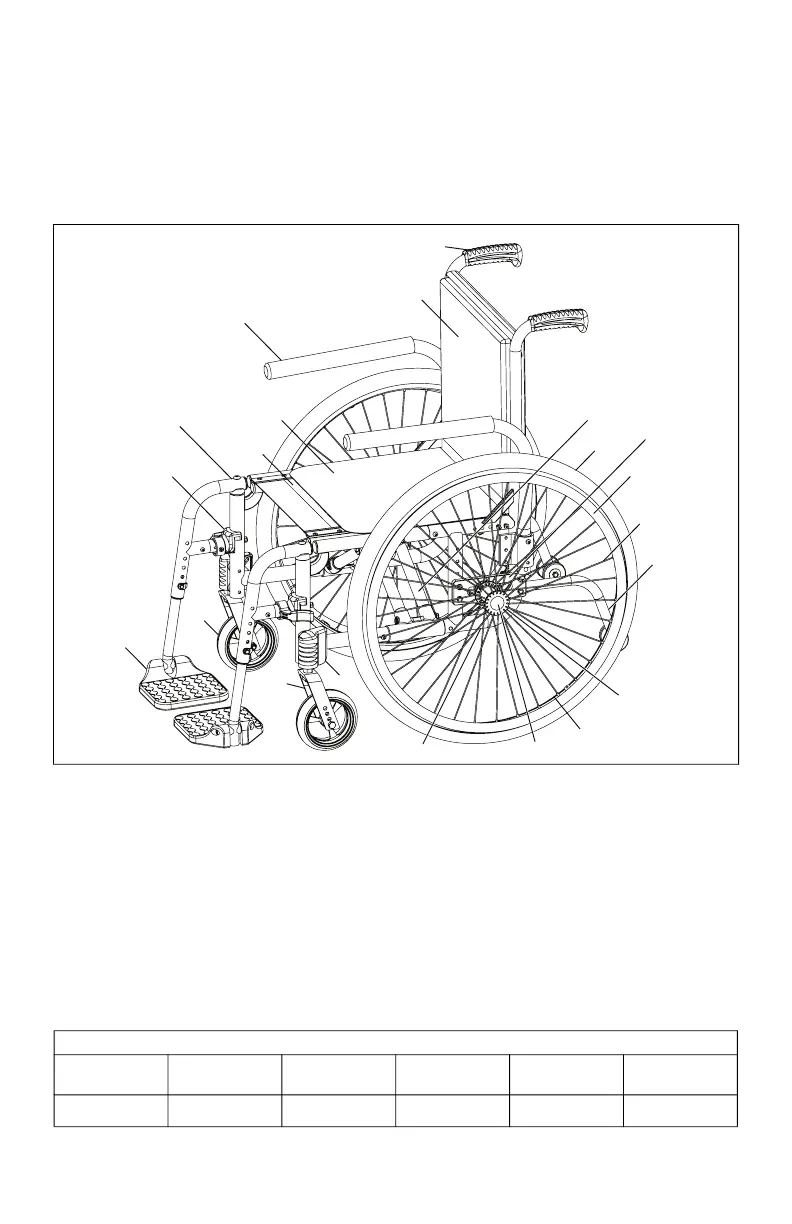

1. Cross Brace
2. Pneumatic Tire
3. Axle Plate
4. Aluminum Handrim
5. Spokes
6. Anti-Tip
7. Rear Wheel Hub
8. Aluminum Wheel Rim
9. Quick-Release Axle
10. Rear Frame Component
11. Caster Housing
12. Caster Fork
13. Caster Wheel
14. Flip-Up Composite Footrest
15. Swing Away Latch Release
16. Swing Away Footrest / Footrest
17. Lifting Strap
18. Seat Sling
19. Swing Away Padded Armrest
20. Backrest
21. Push Handle Backrest Tube
Catalyst 5 Max User Weights
MD Name Serial Prefix
Std Max User
Weight (LBS)
Std Max User
Weight (KG)
HD Max User
Weight (LBS)
HD Max User
Weight (KG)
Catalyst 5 C5 300 136 350 159
