IV. WHEELCHAIR USE & CONFIGURATION
U. Anti-Tips (Continued)
How to Install the Standard Anti-Tips (Fig. 23)
1. Press the rear anti-tip release pin (Fig. 23:A) on the anti-tip tube so both the release pins are
drawn inside.
2. Insert the anti-tip tube into the receiver mounted on the camber tube.
3. Turn the anti-tip tube down until the release pin is positioned through the receiver mounting
hole.
4. Insert the second anti-tip tube the same way.
How to Adjust the Wheel Extension Height (Fig. 24)
1. Press the anti-tip wheel release pin so the release pin (Fig. 24:A) is drawn inside.
2. Raise or lower the anti-tip to any of the predrilled holes.
3. Release the pin.
4. Adjust the second anti-tip tube wheel the same way. Both of the wheels should be at exactly
the same height.

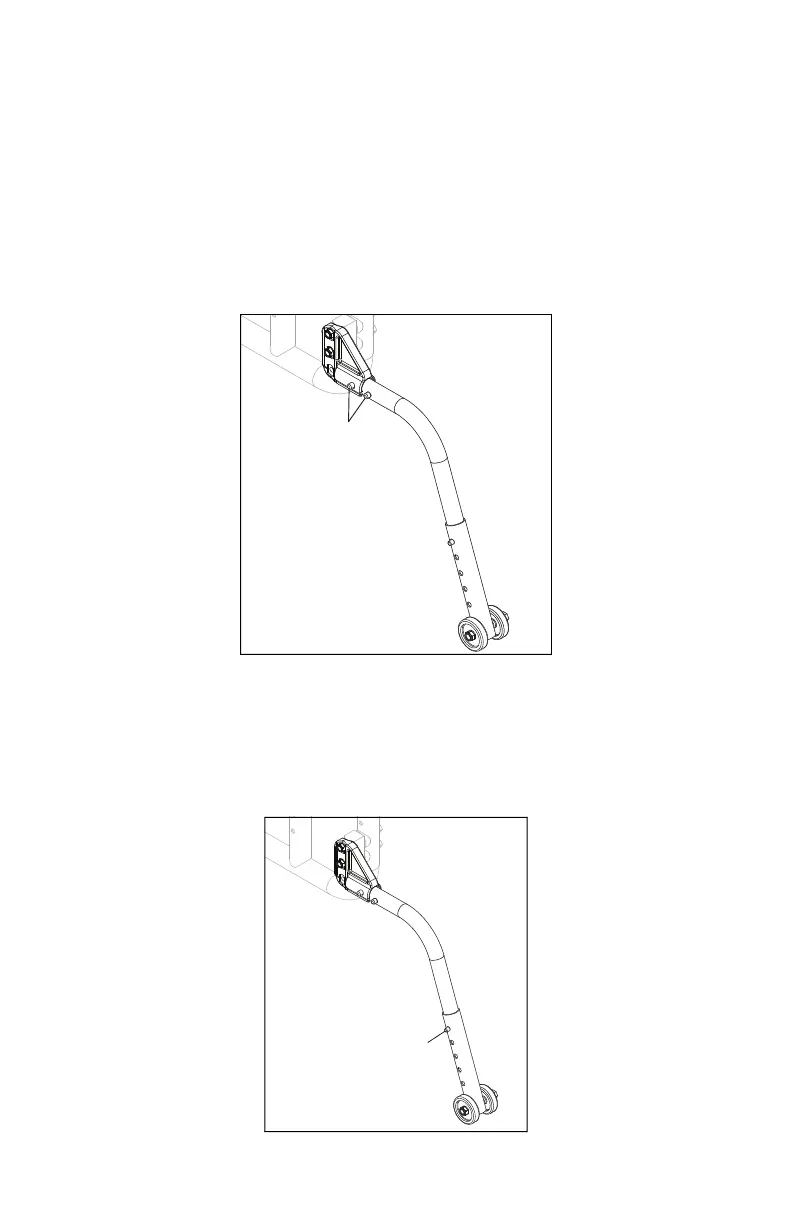

Fig. 23
Fig. 24
