How to Disconnect Normal
Charger
1.The vehicle doors must be
unlocked in order to be able to dis-
connect the charging connector. A
lock system prevents charger
cable disconnection when the
vehicle's doors are locked.

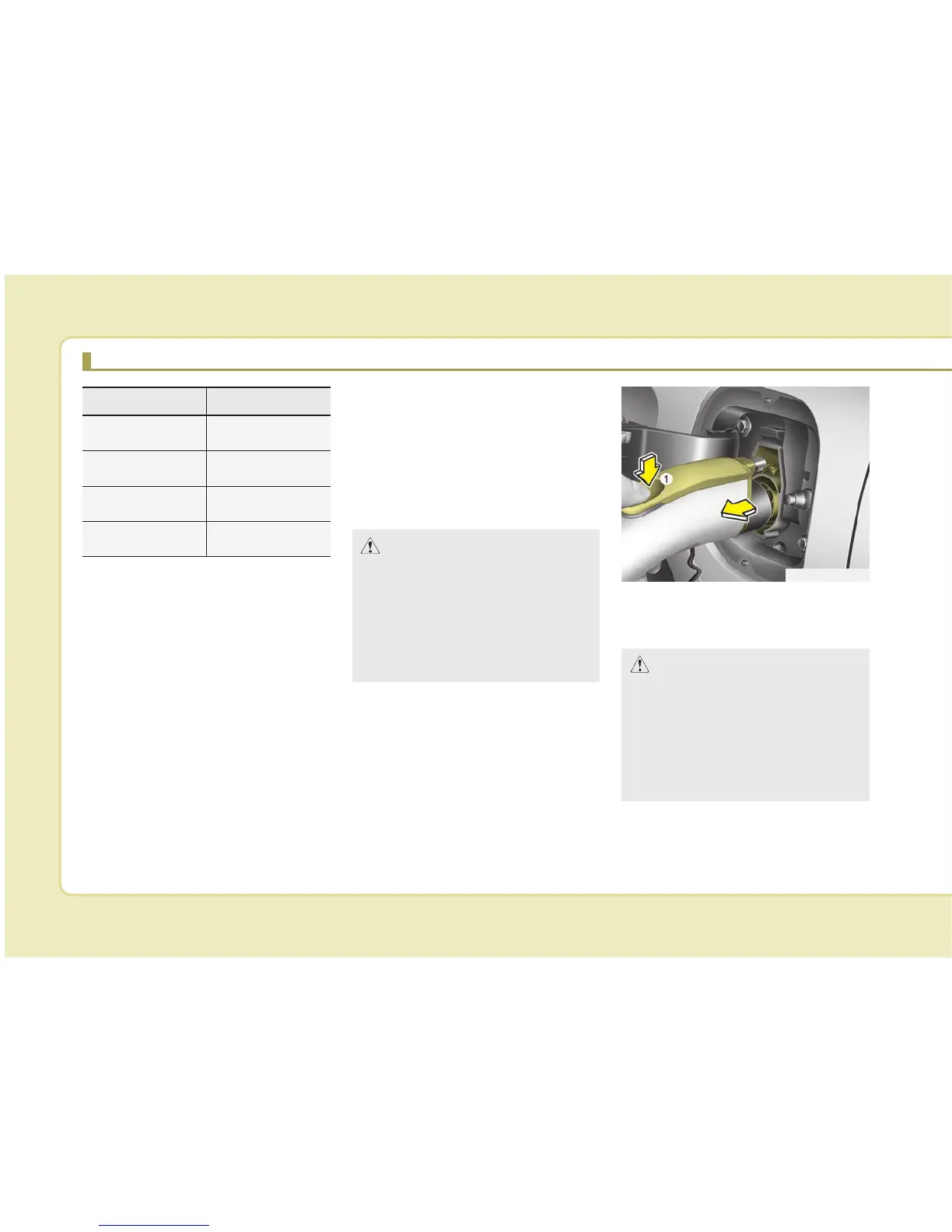

2. Hold the charging connector han-
dle and pull it while pressing the
release button(1).
OJFHPQ016028
Charging Status Indicator
Charging in
progress
Illuminates (green)
Fully charged Off
Scheduled charging
Blinks (green) and
then turns off
Malfunction Blinks (red)
CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)
CAUTION
In order to disconnect the
charging connector, unlock the
doors to unlatch the charging
connector lock system. If not,
the charging connector and the
vehicle's charging inlet may be
damaged.
CAUTION
When disconnecting the charg-
ing connector, do not try to dis-
connect it by force while not
pressing the release button.
This may damage the charging
connector and vehicle charging
inlet.
