Your vehicle at a glance
62

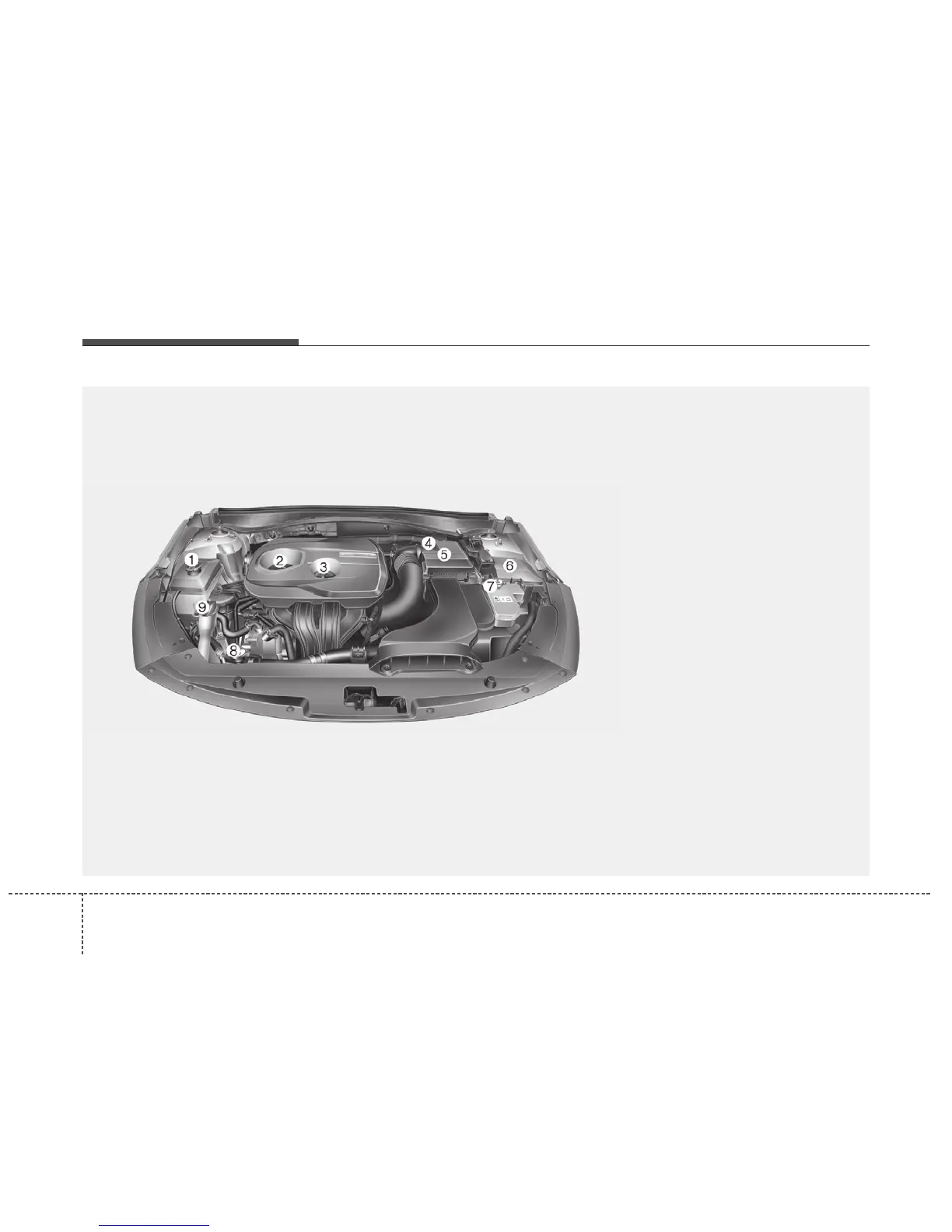

ENGINE COMPARTMENT
OJFH075161L
■■
Gasoline Engine (Nu 2.0L - GDI)
❈ The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir...................8-30
2. Engine oil filler cap ...........................8-26
3. Engine oil dipstick.............................8-26
4. Brake fluid reservoir..........................8-33
5. Air cleaner.........................................8-36
6. Fuse box...........................................8-65
7. Inverter coolant reservoir..................8-30
8. Radiator cap .....................................8-31
9. Windshield washer fluid reservoir.....8-34
